| Prod Model: |
PLD200-SMT-58 |
| Output Power: |
200W |
| Dimming: |
0(0.05V)~10V, PWM, External Resistor, Clock |
| Output Voltage: |
29~58V |
| Output Current: |
3.15A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
230X68X42.5 mm |
| Brand: |
Fsp-Powerland |
Product Description

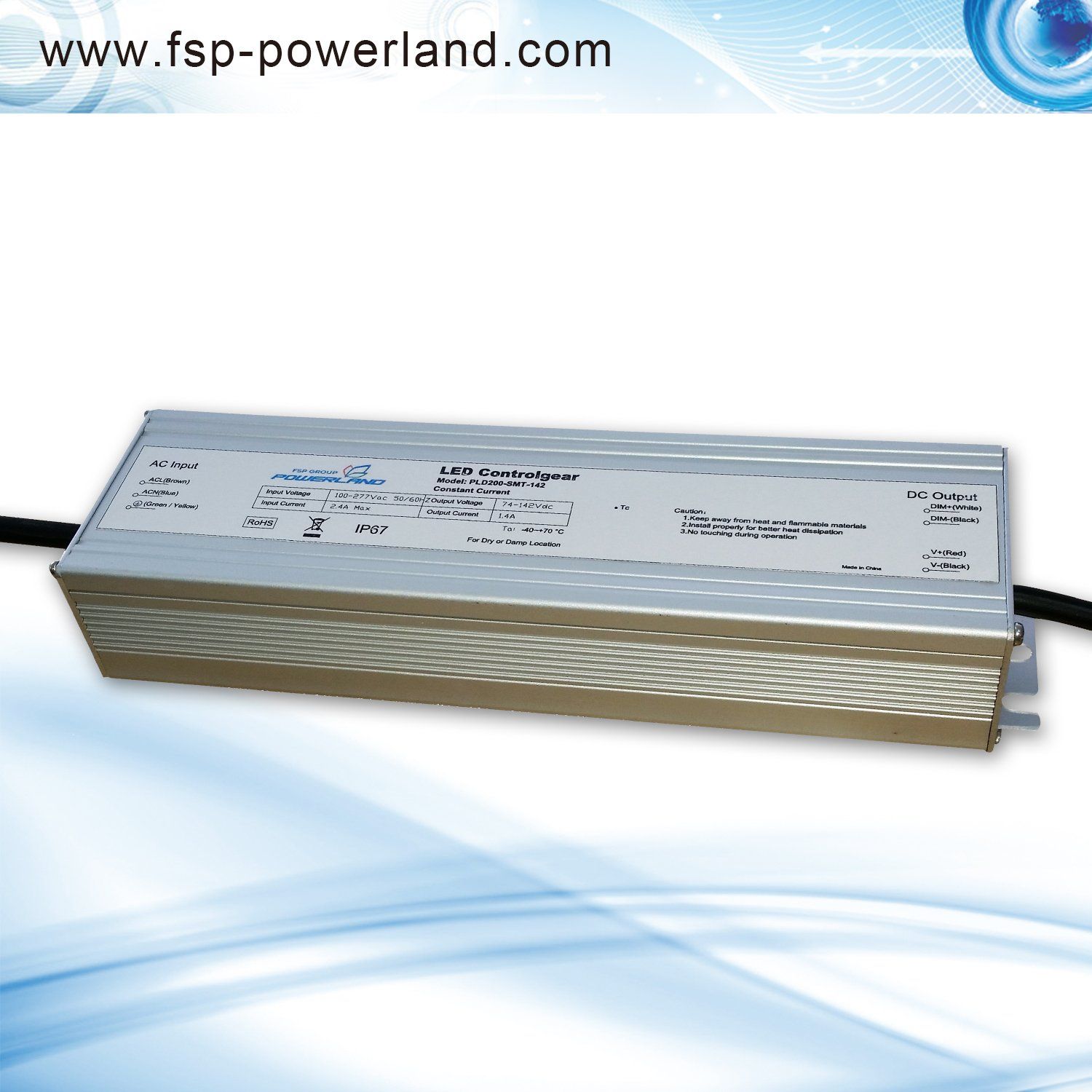

200W 54V 0~3.2A Outdoor Programmable Constant Voltage Waterproof LED Driver
Powerland's PLD200-SMT-58 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 3.2A and designed for 0(0.05)-10V
/PWM/ Rset/Clock/DMX ultra-deep dimming applications.
ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 200W | 54V | 0A
…
3.2A | 93.5% | 90ºC | 2.7A | 230W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.Features
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
100,000 hours lifetime at 70ºC Tcase 7 years warranty at 70ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0-10V, PWM, external resistor, clock,DMX dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 3kV, L/NGND 6kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model |
PLD200-SMT-58
|
| Output Voltage |
54V
|
Output Current
| 0~3.2A |
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, DMX (upon request) |
Current Programmable
| Yes |
Output Power
| 200W |
Max. Voltage Ripple
|
±0.5%
|
Voltage Range
|
90~305Vac
|
Frequency Range
|
47~63Hz
|
Max. Input Current
|
2.7A
|
Max. Input Power
|
230W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
| 92.5% |
THD
| <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
Protections
|
OVP, OTP, OCP, SCP
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
|
90ºC
|
Surge Protection
|
3kV/6kV
|
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class B
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 230x68x42.5 mm (9.06x2.68x1.67 inch) |
Mounting Length
|
244 mm (9.61 inch)
|
Overall Length
|
254 mm (10.00 inch)
|
Weight
|
1.45 kg (3.20 lb)
|
Life Time
| 100,000 hours @ full load, 70ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specifications

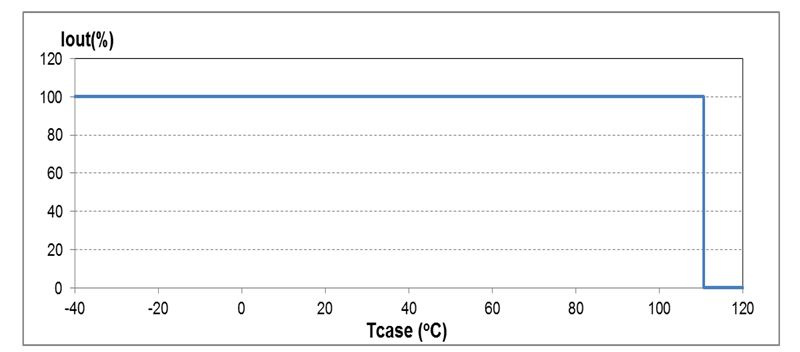

Output Current vs. Case Temperature (with ±5ºC Tolerance)

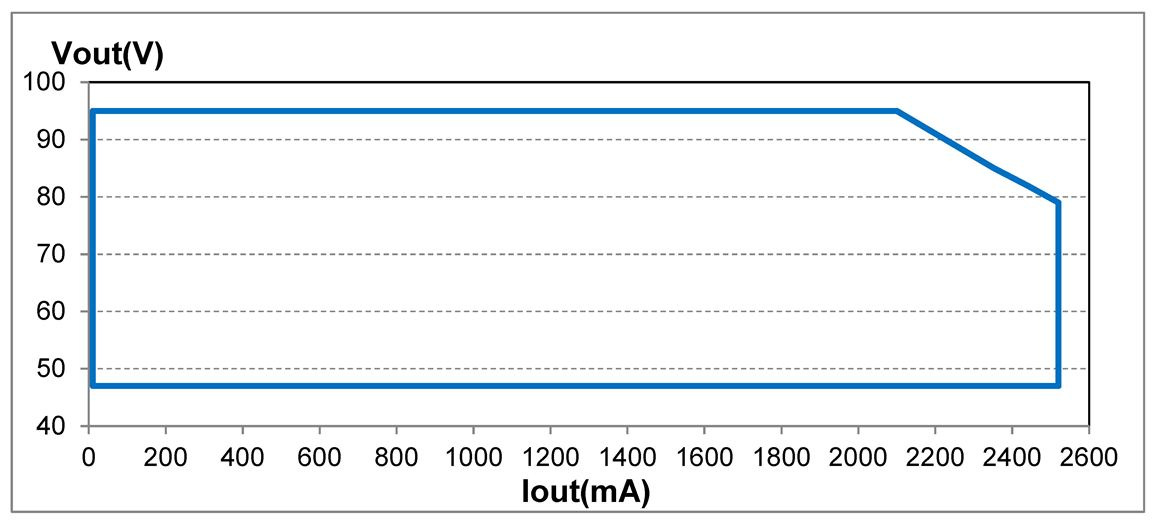

I-V Programming Area: Output Voltage vs. Output Current
Electrical Specifications

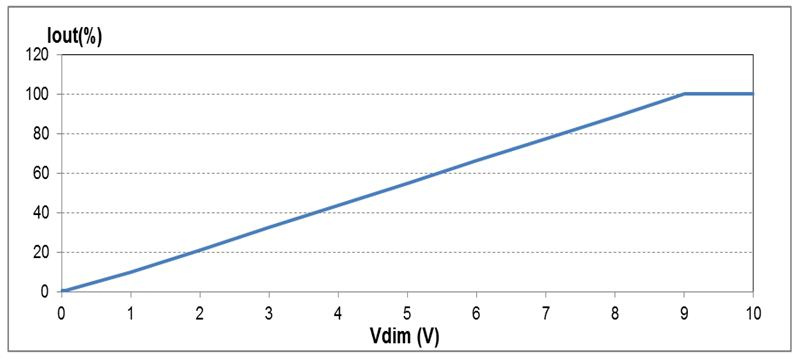

Output Current vs. 0(0.05V)-10V Dimming Control Voltage

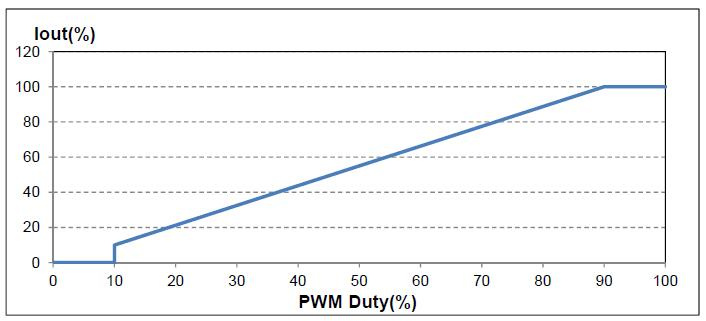

Output Current vs. PWM Dimming Duty Cycle
Electrical Specifications
Output Current vs. External Setting Resistor
