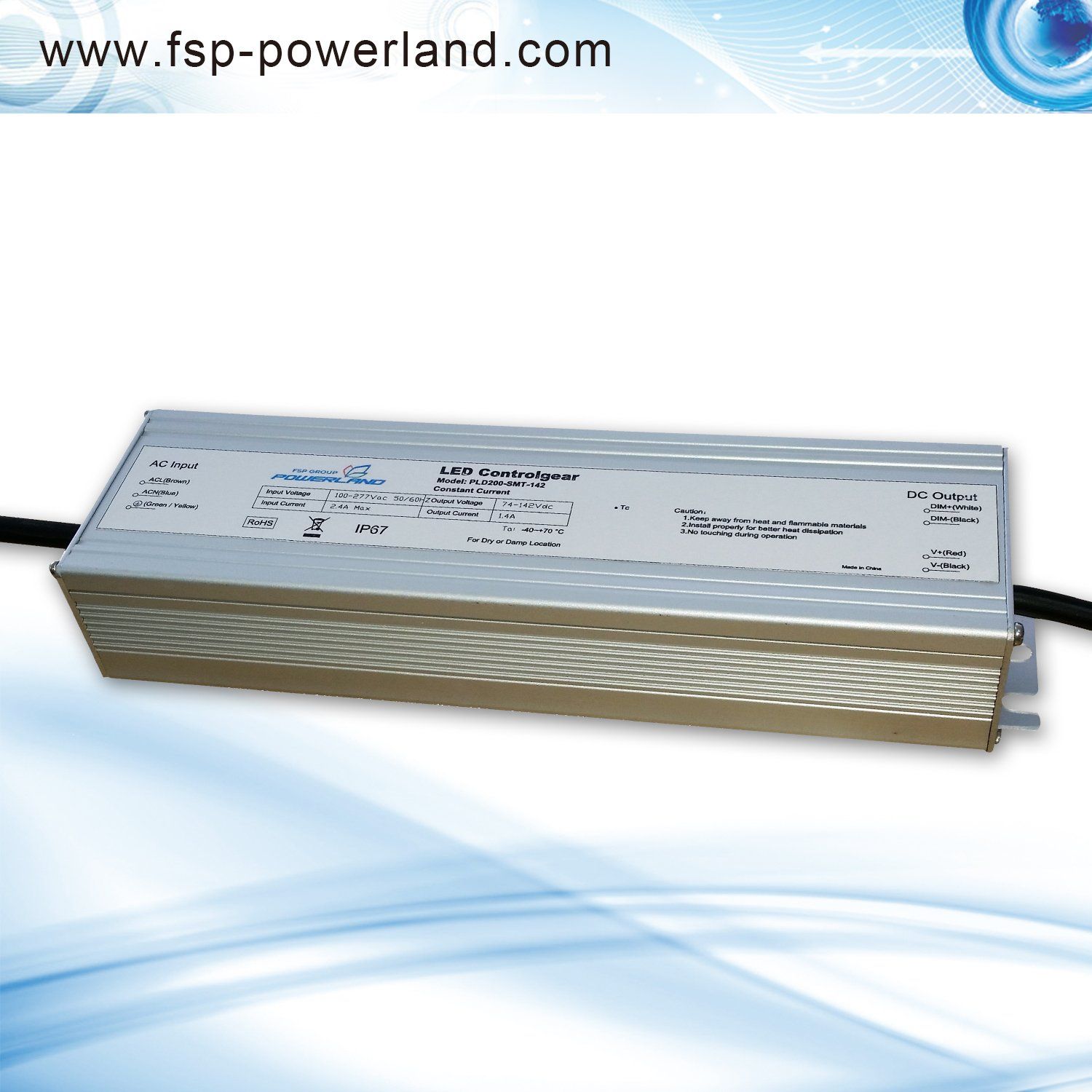

200W 54V Programmable Constant Voltage LED Driver
| Price: |
US $ 32.5-65/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
PLD200-SMT-58 |
| Output Power: |
200W |
| Dimming: |
0(0.05V)~10V, PWM, External Resistor, Clock |
| Output Voltage: |
54V |
| Output Current: |
3.2A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
230X68X42.5 mm |
| Brand: |
Fsp-Powerland |
Product Description
200W 54V Programmable Constant Voltage LED Driver
Powerland's PLD200-SMT-58 offers low-cost digital programmable constant voltage drivers with wide adjustable range, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output voltage of is programmable up to 54V.
ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 200W | 58V | 0~3.2A | 92.5% | 90ºC | 2.7A | 230W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.Features>70,000 hours lifetime at 75ºC Tcase
>7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant voltage output
Output voltage programmable
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model | PLD200-SMT-58 |
| Output Voltage | 54V |
| Output Current | 0~3.2A |
| Output AUX Power Voltage (Optional) | 12V |
| Output AUX Power Current (Optional) | 0-100mA |
| Output Power | 200W |
| Max. Voltage Ripple | ±0.5% |
| Voltage Range | 90~305Vac |
| Frequency Range | 47~63Hz |
| Max. Input Current | 2.7A |
| Max. Input Power | 230W |
| Power Factor | >0.97 @ 115Vac & 80~100% full load, >0.90 @ 277Vac & 80~100% full load |
| Efficiency | 92.5% |
| THD | <20% @ 100-277Vac & 80~100% full load |
| Protections | OVP, OTP, OCP, SCP |
| Environmental Protection | UL Dry & Damp & Wet |
| Working Temperature | -40~+70ºC |
| Max. Case Temperature | 90ºC |
| Surge Protection | L-N 5.5kV, L/N-Earth 11kV |
| Agency Approbations | UL8750 |
| Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
| Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
| Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
| Dimension | 230x68x42.5 mm (9.06x2.68x1.67 inch) |
| Mounting Length | 242 mm (9.53 inch) |
| Overall Length | 256 mm (10.08 inch) |
| Weight | 1.45 kg (3.20 lb) |
| Life Time | >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

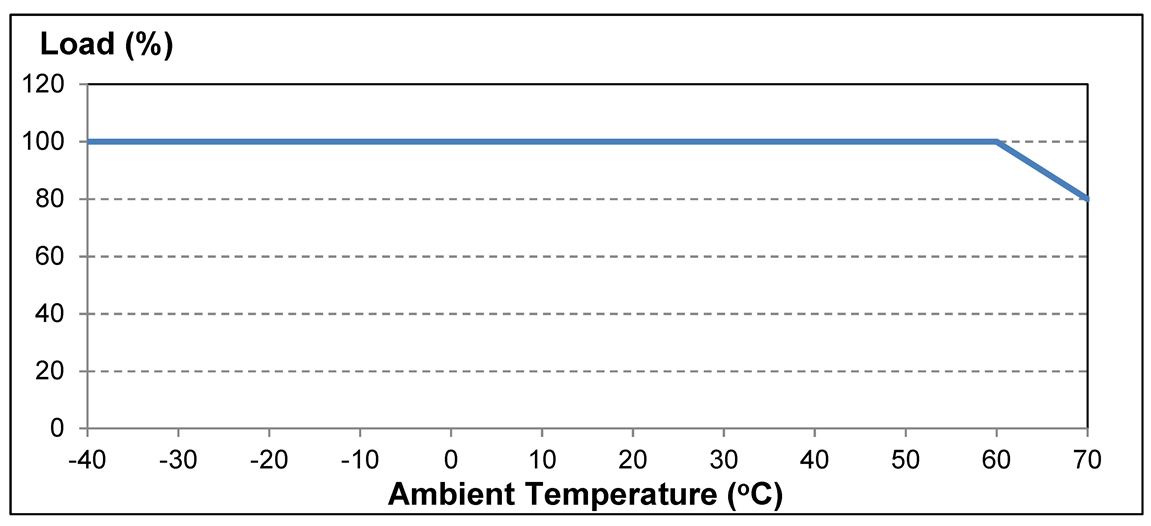

Dreating Curve
Electrical Specifications

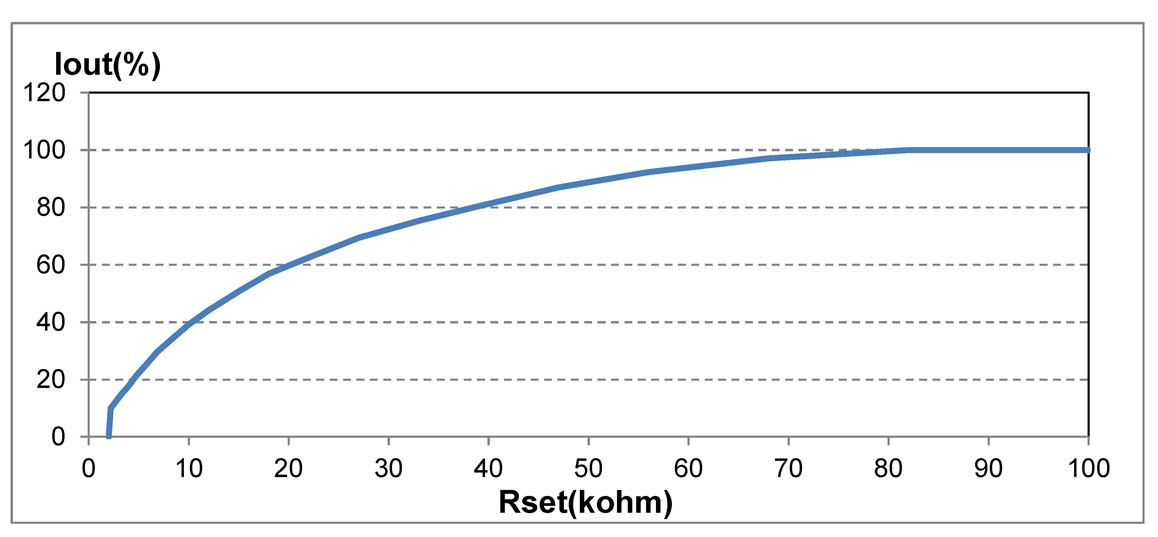

Output Current vs. External Setting Resistor
Performance Characteristics

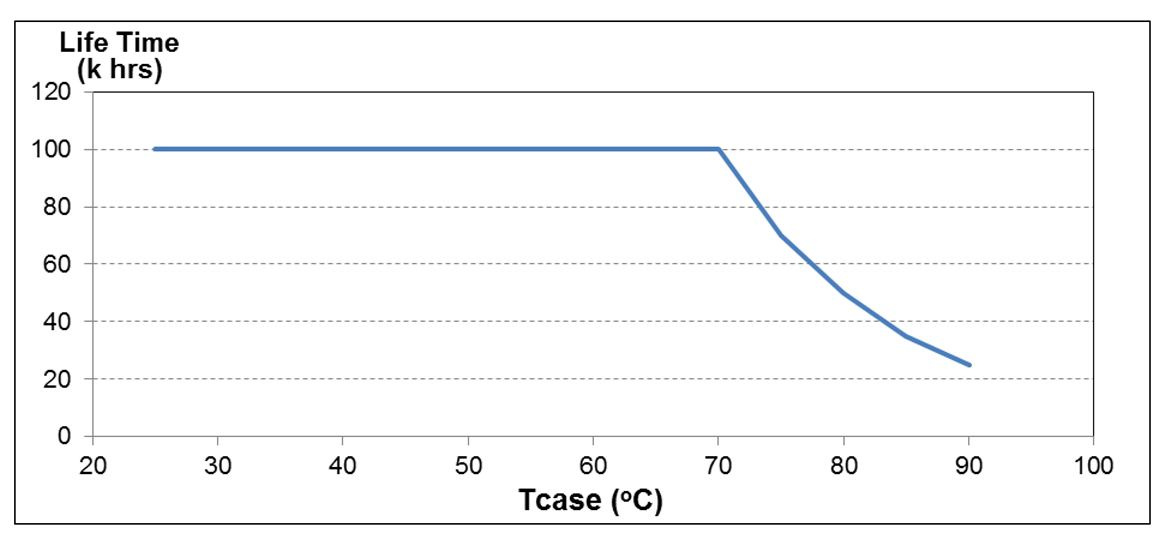

Life Time vs. Case Temperature
Performance Characteristics

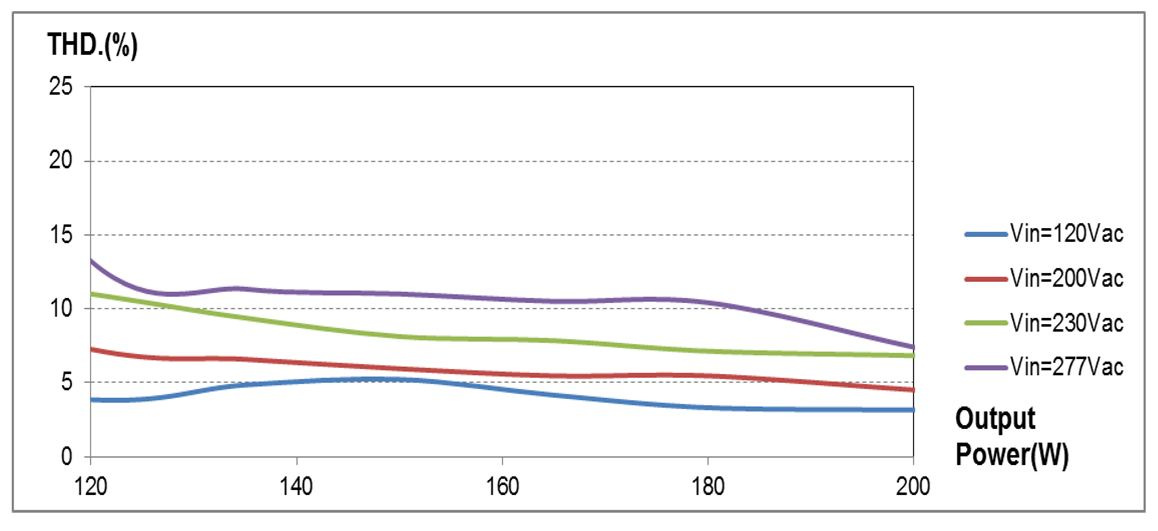

THD vs. Output Power

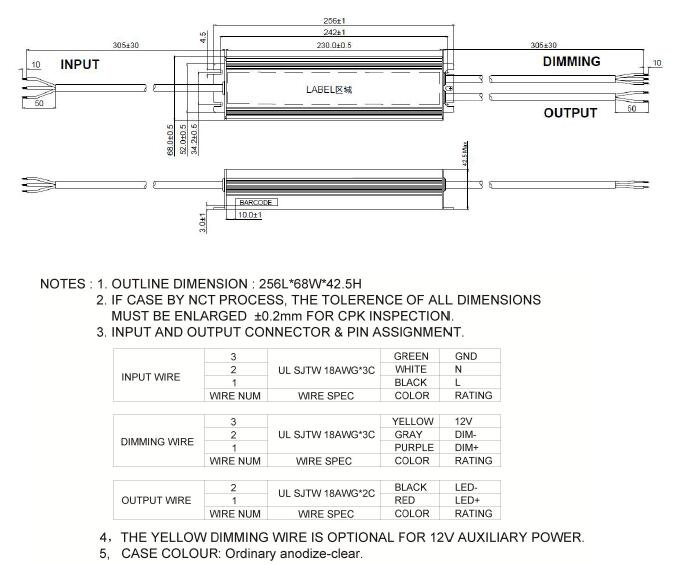

Mechanical Specification
