200W 5V Indoor LED Power Supply for LED Display with Ce

Name: 200W 5V Indoor LED Power Supply for LED Display with Ce
Brand: all-electronics-online.com
SKU: 748651805
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 12.25/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-5E200B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	5V
Output Current:	40A Max
Size:	20011050mm
Power Factor:	Low
Efficiency:	80%
Overload Protection:	110-150% Hiccup Mode, Auto-Recovery
Installation:	Indoor
IP Rating:	IP20
Cooling:	Free Air Convection
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Brand:	Neonpro
Power Supply Voltage:	AC220-240V

Product Description

200W Indoor Switching Power Supply for LED Module

1. Features of LED Power Supply :
- Constant voltage output LED Power Supply .
- Indoor LED Power Supply .
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2. Specifications of LED Power Supply

Model no.	ELDV-5E200B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	200 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	80%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	5VDC ± 5%
Output current	40A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	19911050 mm
Weight(kg)	0.8700
Packing information	30 Pcs/ Carton, G.W 26 KG

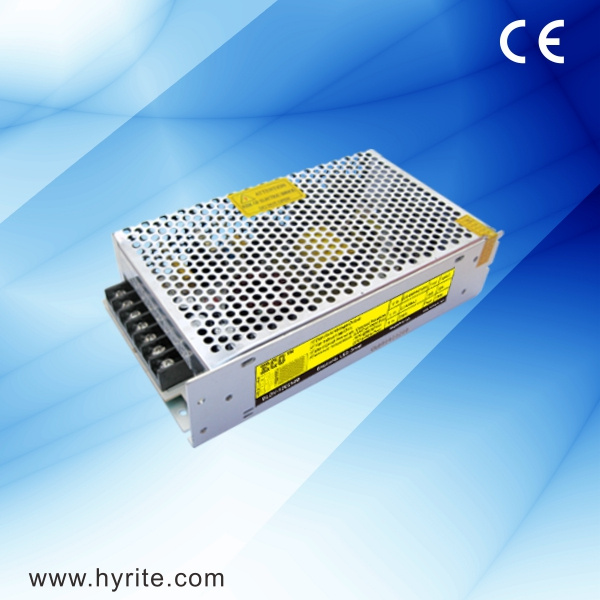

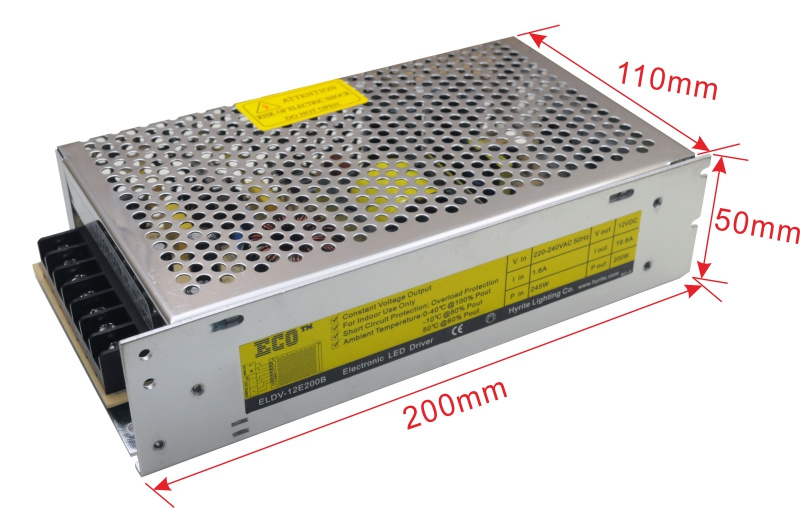

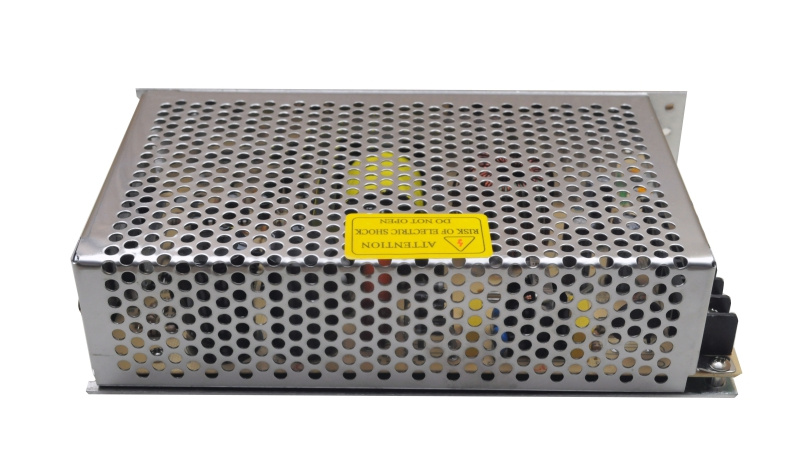

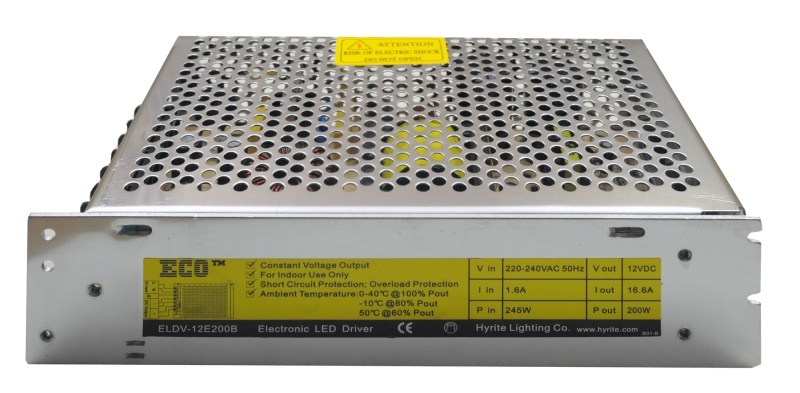

3.Detail pictures of LED power supply

4. Application of LED power supply
*LED modules and LED strips
*LED light box and channel letter
*LED-neon tube
*Bar light
*Other signage lighting

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
