| Prod Model: |
200w |
| Low: |
Volume |
| Useage: |
LED Display Screen |
| Thin: |
Ultra |
| Top: |
Quality |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Input Voltage: |
175-264VAC |
Product Description

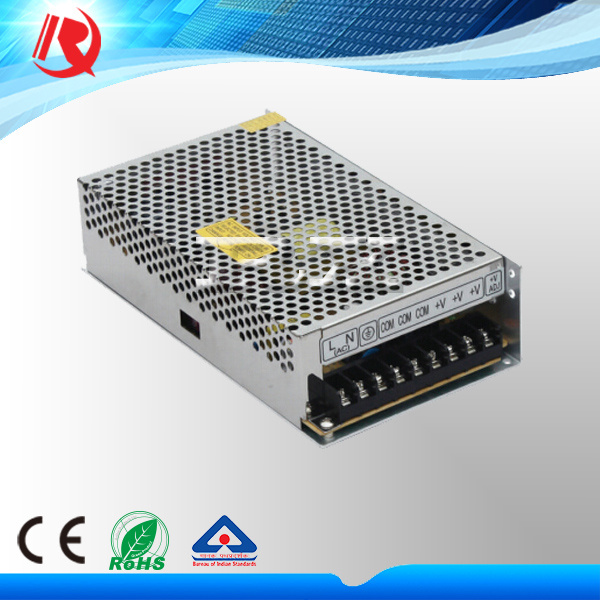

200w commen power supply for led display screen
Product Model:A-200-5
Features:
Low cost, high reliability
Built-in EMI Filter
Low output ripple&noise
Protections: Over load/ Short circuit
1 year warranty
Case: 808 Size: 199*110*50mm
AC Input voltage range...................................176-264VAC
Input frequency................................................47-63Hz
AC Inrush current.............................................Cold start, 40A/ 230VAC
DC adjustment range..................................... ±10% rated output voltage
Line regulation(full load)..............≤0.5%
Output over load protection.............................110%-150% shut off, AC recycle to re-start
Rise, hold up time............................................50mS, 20mS at full load (typical)
Withstand voltage............................................I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min
Working temperature......................................-10ºC to + 40ºC@100%, +60ºC@ 60% load
Storage temperature.......................................-20ºC~ +85ºC,20%~ 95%RH (non-condensing)
Safety standards..............................................Design refer to GB4943,UL60950-1,EN60950-1
EMC standards................................................Design refer to GB9254,EN55022 class A
Cooling method................................................Free air cooling convection
| Product model | DC output | Load regul. | R&N | Efficiency |
| A-200-5 | 5V,40A | 2% | 100mV | 78% |
| A-200-12 | 12V,16.7A | 1% | 120mV | 80% |
| A-200-24 | 24V,8.3A | 1% | 200mV | 83% |
