200W Constant Voltage Outdoor Waterproof LED Transformer

Name: 200W Constant Voltage Outdoor Waterproof LED Transformer
Brand: all-electronics-online.com
SKU: 748416065
Availability: InStock
Rating: 4.3 (134 reviews)

Price:	US $ 27-28.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	200W
Input Voltage:	170-250V
Output Voltage:	12V
Power Factor:	0.65
Efficiency:	80 %
IP Rating:	IP67
Dimensions(LWH):	23313968 Mm
Weight(Kg):	3.08
Packing Information:	5 PCS/ Carton, G.W 17 Kg
Operating Temperature:	-25~40 Oc
Usage:	Construction
Output Type:	Quad
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Saso SAA
Power Supply Voltage:	AC170-250
Brand:	Neonpro

Product Description

LED Driver 12/24V 200W IP67 Constant Voltage Outdoor Waterproof LED Transformer

Product Feature of the outdoor IP67 Waterproof transformer ::
*170-250 VAC, 12VDC
*Constant Voltage type; Mature models
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*SAA/CE/RoHS/SASO approval.

Data sheet of the outdoor IP67 Waterproof transformer :

Model no.	LPS-12E200
Input voltage	170-250 VAC 50/60 Hz
Max. power	200W
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	80%
Output voltage	12VDC ± 5%
Output current	16.7 A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*4 (18cm)
Dimensions(LWH)	23313968 mm

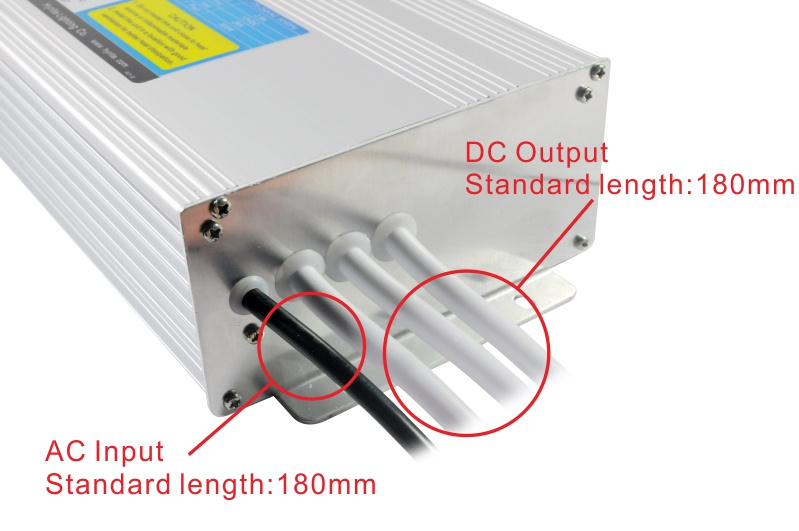

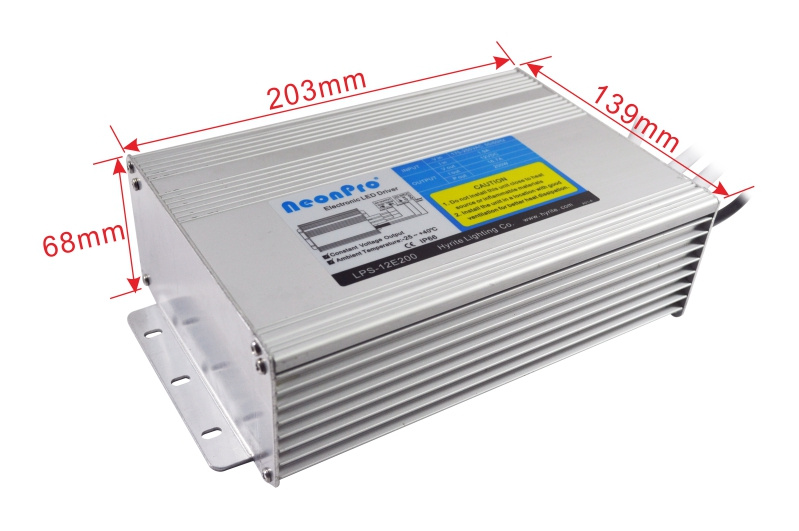

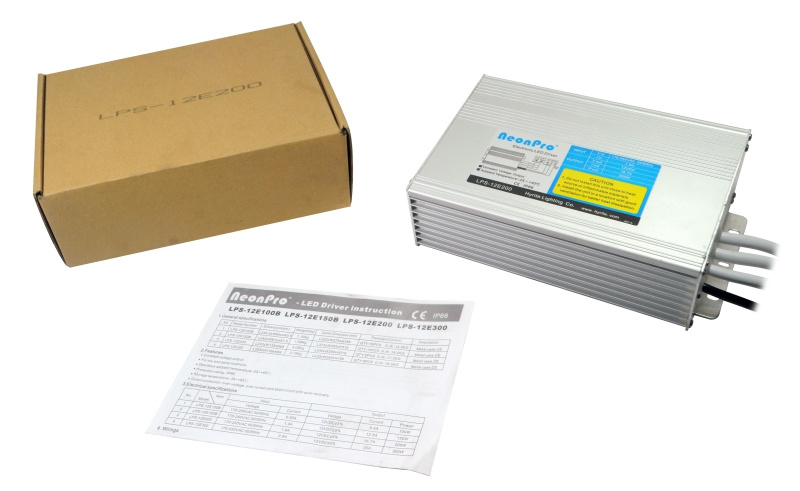

Detail pictures of LED driver:

Application of LED Driver:
* LED module
* LED strip
* LED-neon tube
* Bar light
* Other signage lighting

Important Parameter of LED Driver:
* Store Temperature: -25~75° C
* Working Temperature: -25~40° C
* Work environment: Indoor or outdoor installations
* Waterproof Rating: IP67

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
