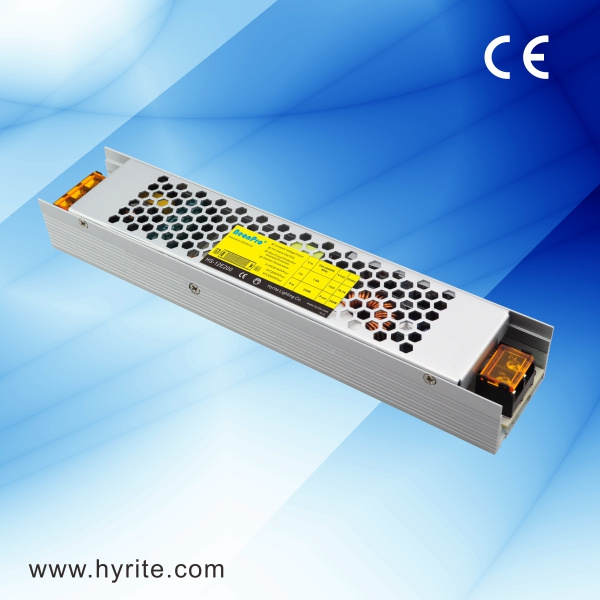

200W Indoor Switching Power Supply with Ce

Name: 200W Indoor Switching Power Supply with Ce
Brand: all-electronics-online.com
SKU: 725362312
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	US $ 9-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-5/12/24 E200
Output Power:	200W Max
Output:	Constant Voltage
Input Voltage:	220-240VAC 50Hz/60Hz
IP Rating:	IP20
Warranty:	2 Years Warranty
Size:	2404630mm
Case:	Aluminum
Output Voltage:	5V 12V 24V
Operating Temperature:	-10 ~ +60 Degree
Usage:	Construction, Building
Circuit Structure:	Electronic Step-down Transformer
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Certification:	Ce, RoHS, EMC Test
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

Quick Overview

-Slim body, special design for application with narrow space such as slim LED light box/display cabinet lighting;
-Constant voltage output
-For indoor use only

Technical Specifications:

Model no.	HS-5/12/24 E200
Model series	HS
Input voltage	220-240VAC 50Hz/60Hz
Power	200W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	5VDC/12VDC/24VDC ± 5%
Output current	40A/16.7A/8.33A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	2404630 mm
Weight(kg)	0.5000

Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:

* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
