200W LED Drivers with Waterproof for LED Display/Lighting/Light Fixture/LED Module/Strips
| Price: |
US $ 18-19/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
AKP12200 |
| Output Voltage: |
DC12V |
| Efficiency: |
85% |
| Output Curent: |
16.7A |
| Output Power: |
200W |
| Input Voltage: |
85-265V |
| Waterproof: |
IP67 |
| Warranty: |
2 Years |
| Application: |
Light, Industry, Construction, Digital Products, |
| Usage: |
Vehicle |
| Output Type: |
Dual |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
Electronic Step-down Transformer |
Product Description

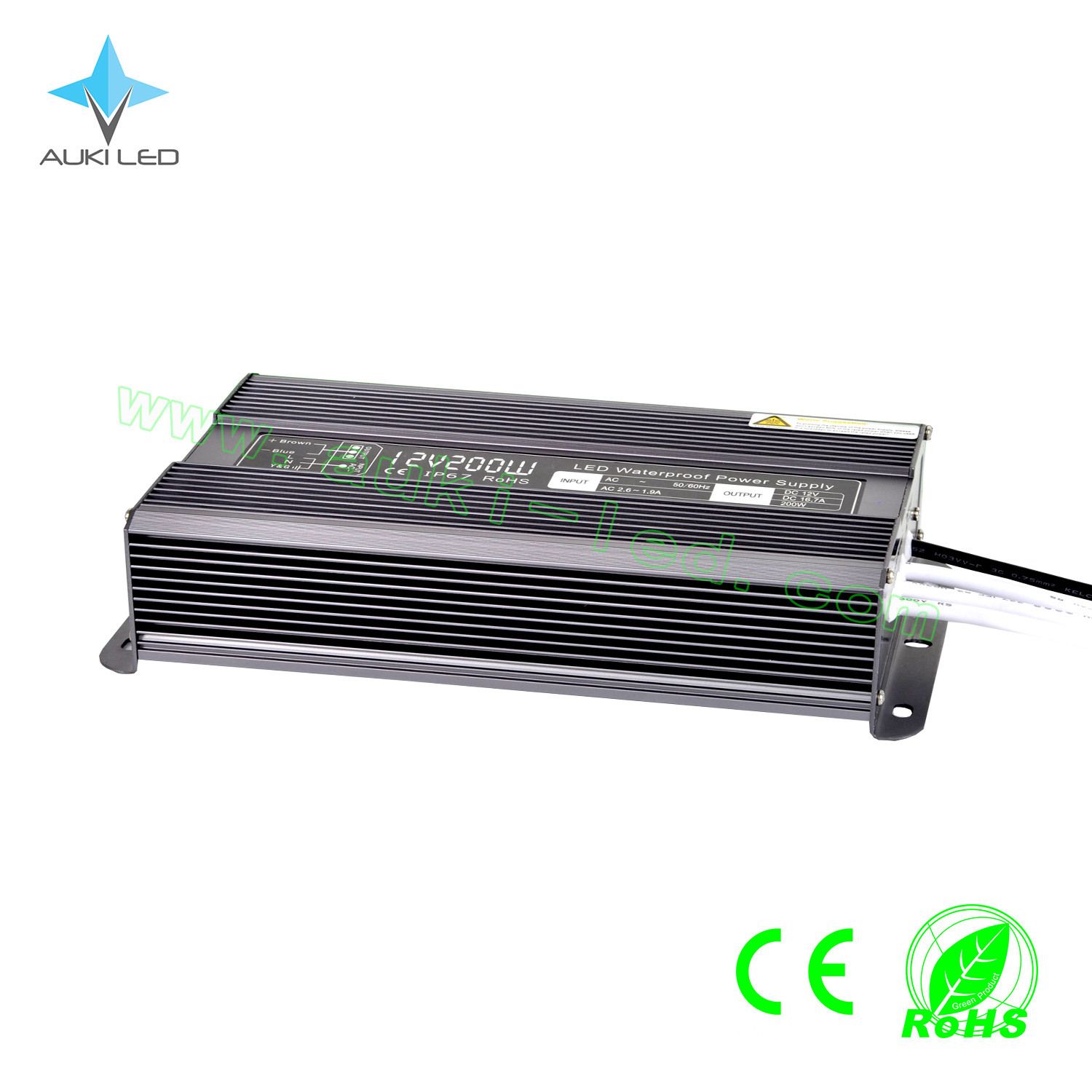

200W Waterproof led power supply
Feature:
1.IP67 design for indoor or outdoor installations
2.Protections: Short circuit / Overload/Over temperature
3.Cooling by free air convection
4.100% full load burn-in test
5.Suitable for LED lighting
6.Products through CE, RoHS Certification
7. 2 years warranty |
Specification:| MODEL |
05V60W |
12V60W |
24V60W |
|
| DC VOLTAGE | 5V | 12V | 24V |
|
| RATED CURRENT | 12A | 5A | 2.5A |
|
| CURRENT RANGE | 0~12A | 0~5A | 0~2.5A |
|
| RATED POWER | 60W | 60W | 60W |
|
NOTE.2
RIPPLE & NOISE (max.) | 150mV | 150mV | 150mV |
|
NOTE.3
VOLTAGE TOLERANCE | ±10% | ±4% | ±2% |
|
| SETUP, RISE TIME | 80ms/220VAC |
| HOLD UP TIME (Typ.) | 60ms/220VAC |
| VOLTAGE RANGE | 170~ 250VAC |
| FREQUENCY RANGE | 50~ 60Hz |
| POWER FACTOR (Typ.) | PF>0.6/220VAC |
| EFFICIENCY (Typ.) | 77% | 80% | 81% |
|
| AC CURRENT (Typ.) | 0.57A/220VAC |
| INRUSH CURRENT (Typ.) | COLDSTART40A/220VAC |
| Short circuit | Protection type : recovers automatically after fault condition is removed |
| Overload | overload protected @ 145-160% above peak rating |
| Over temperature | Protection type : Shut down o/p voltage, re-power on to recover |
| WORKING TEMP. | -30 ~ +50(Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 99% RH non-condensing(Waterproof) |
| STORAGETEMP.,HUMIDITY | -40 ~ +80, 10 ~ 99% RH |
| SAFETY STANDARDS | CE Mark(LVD) , IP67 |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-GND:1.5KVAC |
EMC TestStandards |
EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;
EN61000-3-3:1995+A2:2005; EN61347-1:2001; EN61347-2-13:2006 |
1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
|

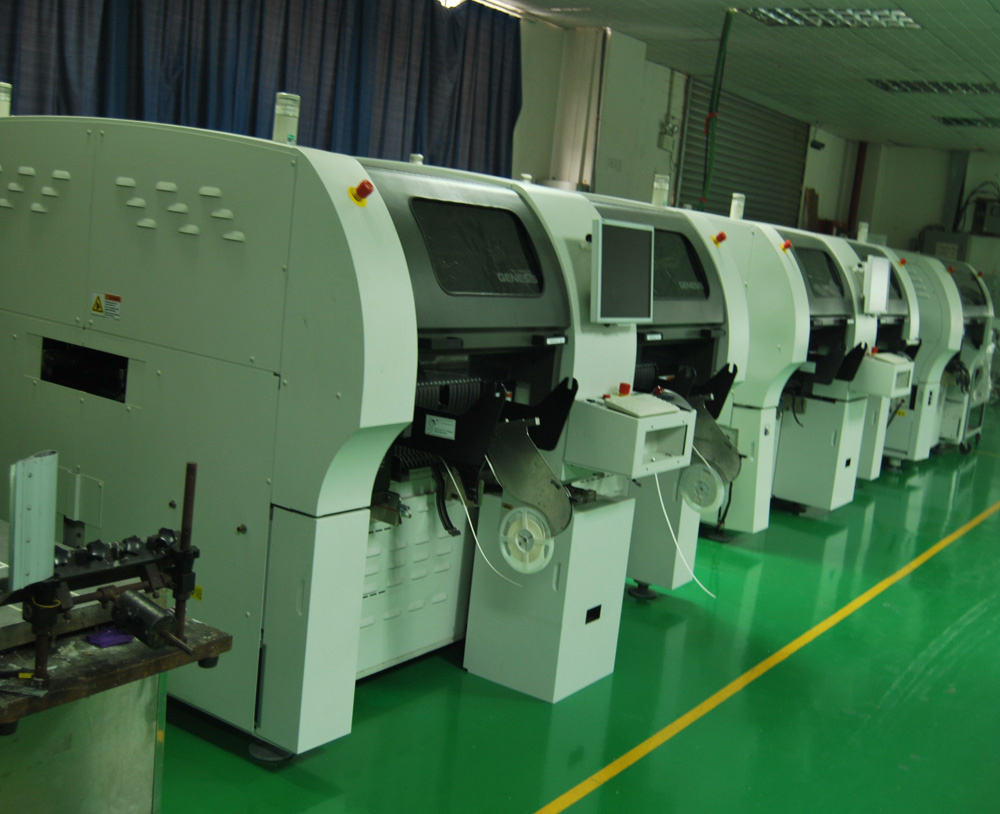

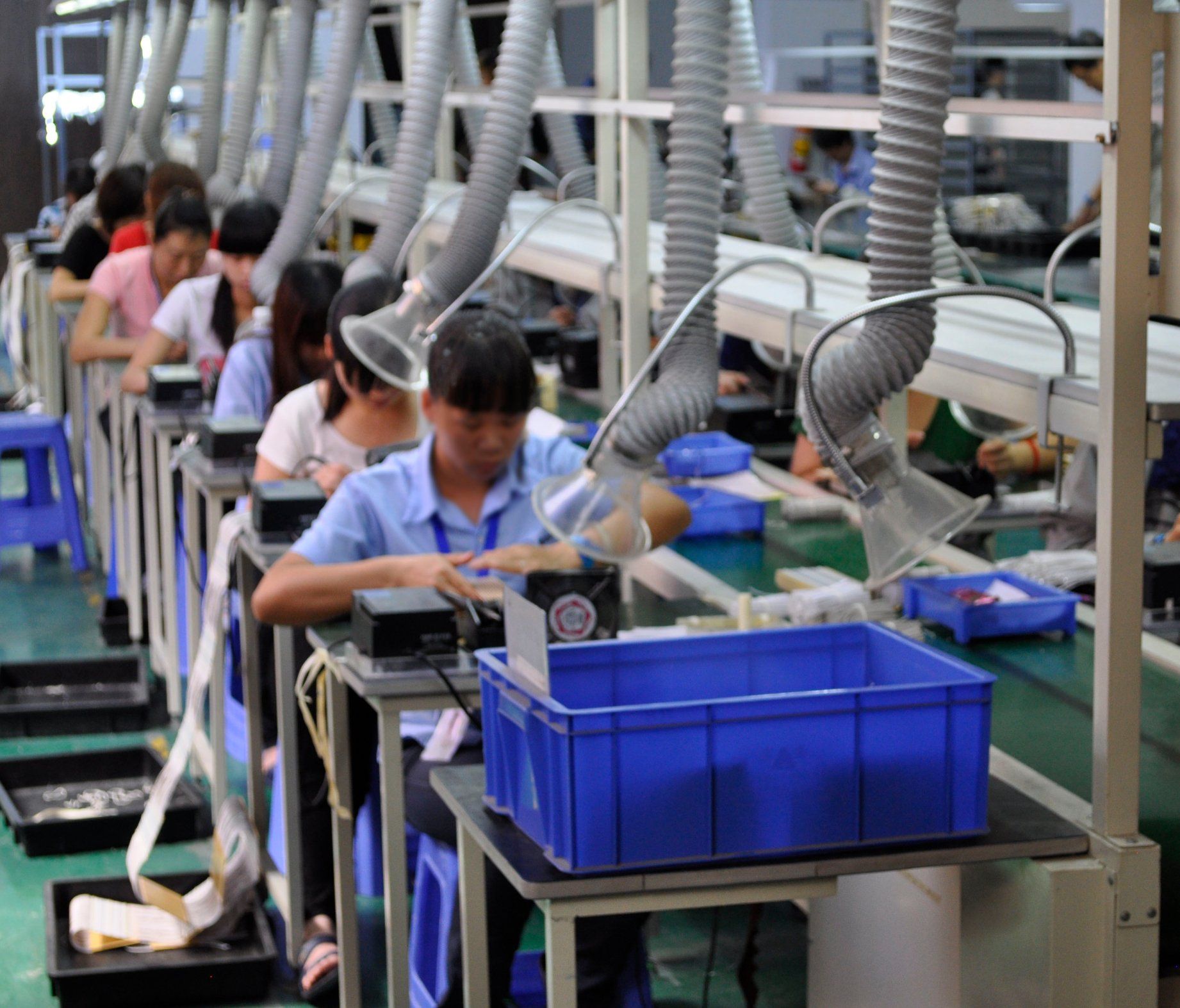

Company View:
Trade Show

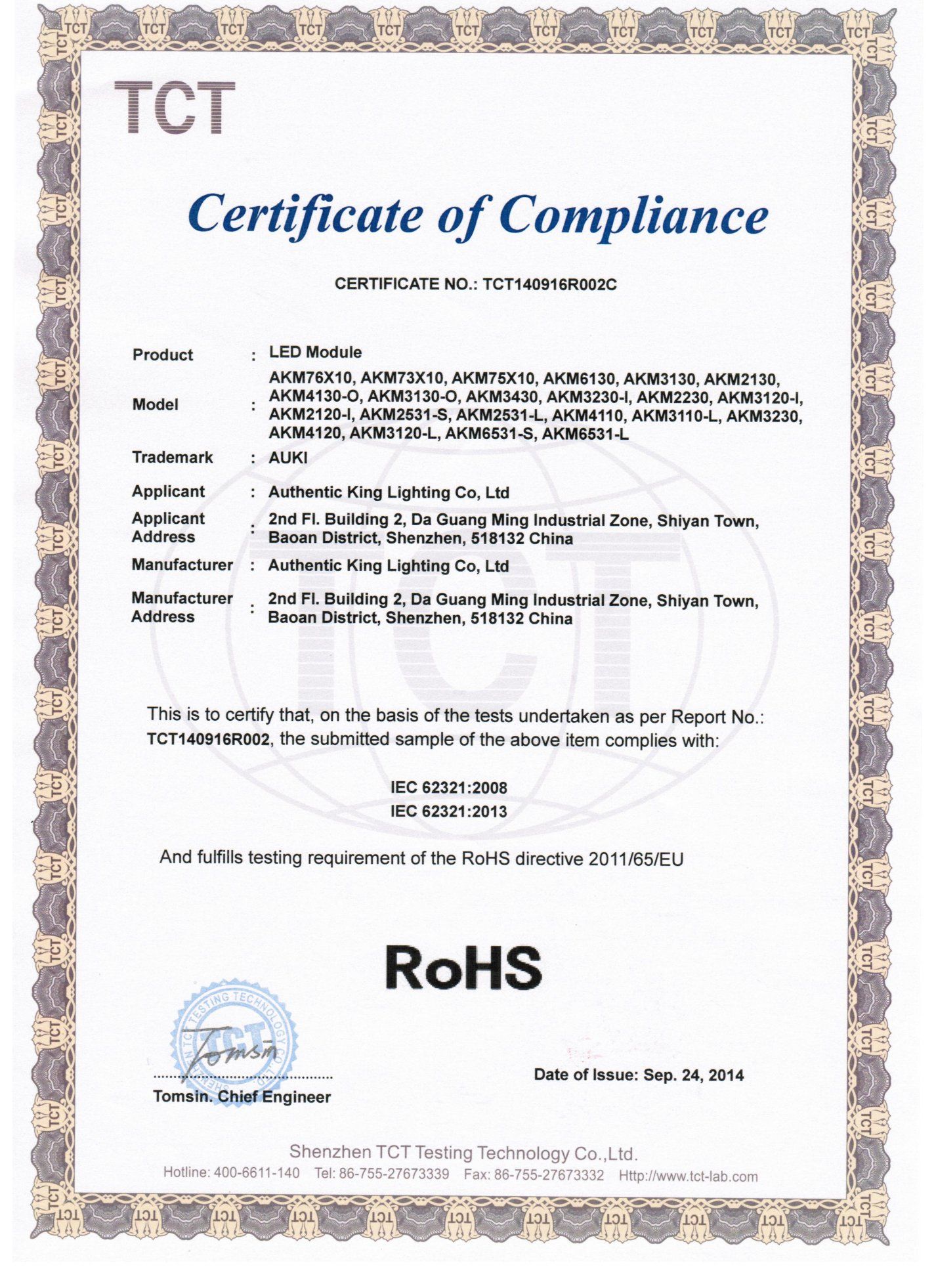

Certification:
Our Service
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM accept.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information |
Authentic-King Lighting Co, Ltd.
Brand: AUKI-----Green lighting, Green World
Profile:
AUKI--- Focusing on supplying wide ranges of middle to high end LED lighting products
(LED module, strip, spot light, projecton lamp and etc).
Our factory(ISO9001 2008) is located in the Shiyan Town, Shenzhen, China(the professional base of LED lighting).
We own professional R&D, QC and sales teams, together with mature management system from production to shipment.
Meanwhile, OEM / OEM services are available to the customers.
To comply with the international standard, our products qualified with the CE and RoHS.
Most of our LED lights are strictly manufacturered under international quality standard
(CE, RoHS, TUV, FCC, UL, PSE and etc).
Our R&D team always develop and release new product, so as to meet with the demand of the international market.
As long as you have the request, we will do our best to provide you the best solutions.
AUKI"s mission:
1. R&D team---Developing refined, innovative, reliable, high power and safe products.
2. PMC team---Fulfiling the high-efficiency production, so as to ensure prompt delivery.
3. QC team---Strictly testing and inspecting before delivering the products, so as to ensure faulty items.
4. Sales team---Marketing and researching the international market demand, ensuring the responsilbe,
Professional and timely services to every customers, establishing worldwide marketing network.
We "AUKI" sincerely expect to establish the friendly and win-win cooperation with you!
