200W Rainproof Constant Voltage LED Switch Power Supply

Name: 200W Rainproof Constant Voltage LED Switch Power Supply
Brand: all-electronics-online.com
SKU: 723180362
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	US $ 15-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-12E200
Input Voltage:	180-250V
Output Current:	16.7A
Output Voltage:	12V
Output Power:	200W
Efficiency:	>83%
Installation:	Outdoor Rainproof
Output-Type:	Constant Voltage
Dimming:	No
Dimensions(LWH):	185.5X112.5X56.5 mm
Packing Information:	20 PCS/Carton, G.W 15 Kg
Usage:	Vehicle
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Output Type:	Output Terminal
Certification:	Bis
Power Supply Voltage:	180-250V
Brand:	Neonpro

Product Description

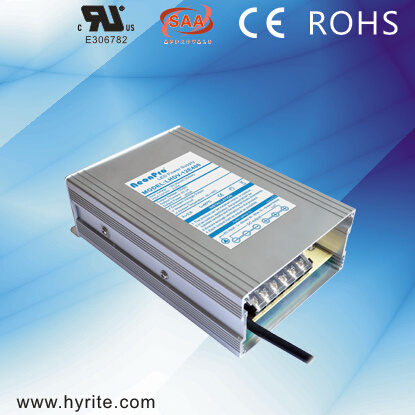

IP 23 Rainproof 200W 12V Constant Voltage LED Switch Power Supply with Bis

Features:
*Rainproof
*Constant voltage output
*low cost, high reliability, long life
*Short circuit and overload protection
*Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock
*100% full load burn-in test
*2 years warranty
*BIS certified

Applications
*LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...

Specfication:

Model no.	LHDV-12E200
Input voltage	180-250 VAC 50/60 Hz
Max. power	200W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	>83%
Output voltage	12VDC ± 5%
Output current	16.7A max
Operating temperature	-25ºC~+40ºC
Installation	Outdoor rainproof
IP rating	IP 23
Cooling	Free air convection

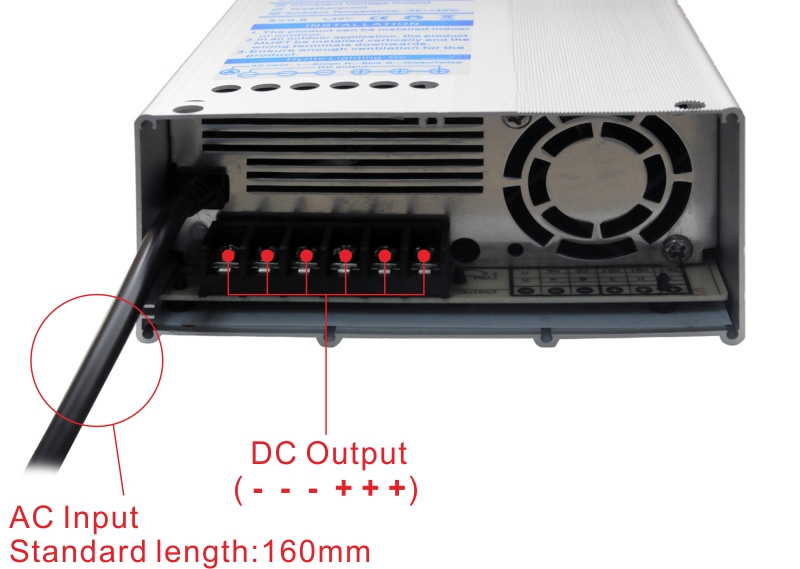

Connection input/output	Input:18AWG*3(30cm) Output:terminal(six)
*Dimensions(LWH)*	185.5112.556.5 mm
Weight(kg)	0.7 KG
Packing information	20 PCS/Carton, G.W 15 KG
*Packing Dimensions(LWH)*	400x328x260 mm

Our Strengths
*More than 20 years' experience in indoor & outdoor Lighting application
*Professional sales team and strong R&D forces
*Good quality with strict production control
*Customization and OEM service available

Successful Applications & Workshops & Exhibitions

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
