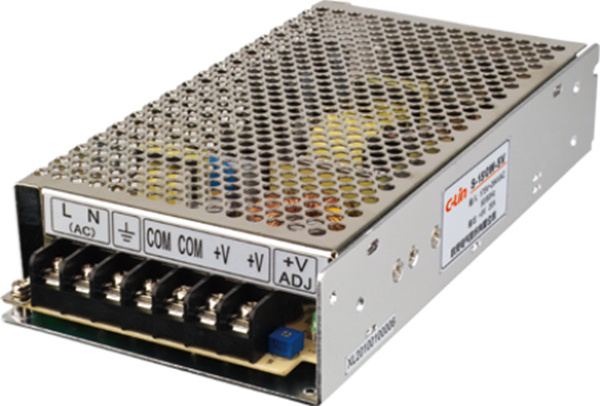

200W Switching Power Supply Single Phase Output with CE (S-200W)

Name: 200W Switching Power Supply Single Phase Output with CE (S-200W)
Brand: all-electronics-online.com
SKU: 718813932
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	US $ 13.33-26.67/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-200W
Function Protection:	Overload, Over-Current, Short-Circuit
Shell Material:	Oxide Blasting Environmenttal Material
Demension Size:	199X110X50mm
Leakage Current:	less than 0.5mA/240VAC
Impact Current:	cold start current:36A/230V
Overload Protection:	105-150%, type:current limited, reset:automatic
Overvoltage Protection:	115-150%
Start/up/keep Time:	200ms, 100ms, 30ms
Shock Resistance:	10-500Hz, 2G, 10min.
Safety Standards:	UL1012
Output Type:	Single
Warranty:	1 Year
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Output Power:	150W 5V-30A,12V-12.5A,24V-6.5A,48V-4A,200W,5V-35A
Input Voltage:	AC 170-AC264V 47-63Hz DC240V-DC370V

Product Description

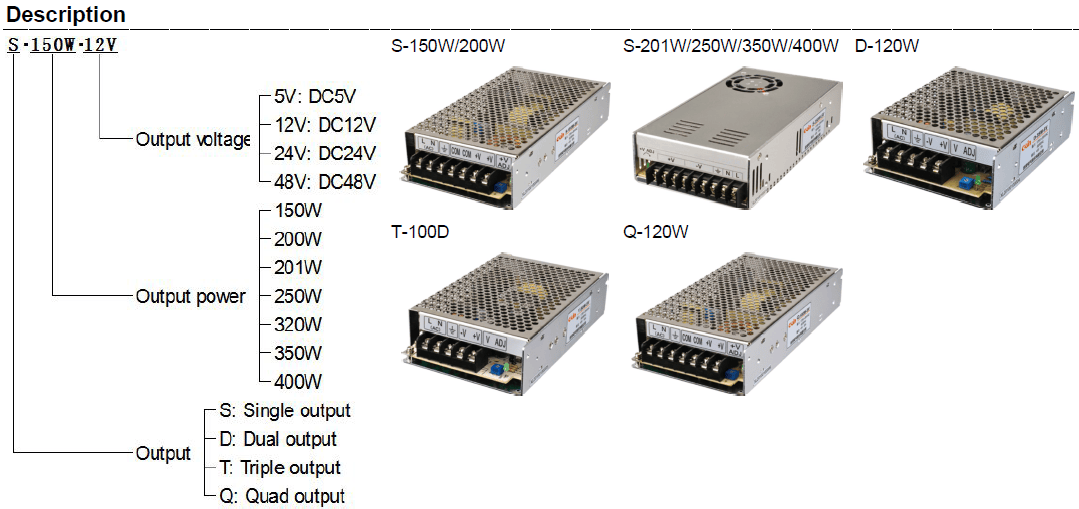

Switching power supply S-150W
General Introduction
Switching power supply is to convert alternating current into direct current which electronic and electrical equipments need. It is characterized by small size, light weight, small ripple, high efficiency, low noise, low temperature rise and cost-efficiency. Its short circuit and overload protection and soft start function prevent the load circuit from being damaged easily. The product is an ideal substitute for the traditional transformer.

Switching power supply is widely used in the places which require AC220V or AC110V to be converted into direct current, such as advertising light boxes, communication equipments, industrial control automation, low-power DC motor power supply etc. It has four specifications: single, dual, triple, quad. groups, with power range from 15W~500W, output voltage -5V, 5V, -12V, 12V, -24V, 24V, 48V etc.

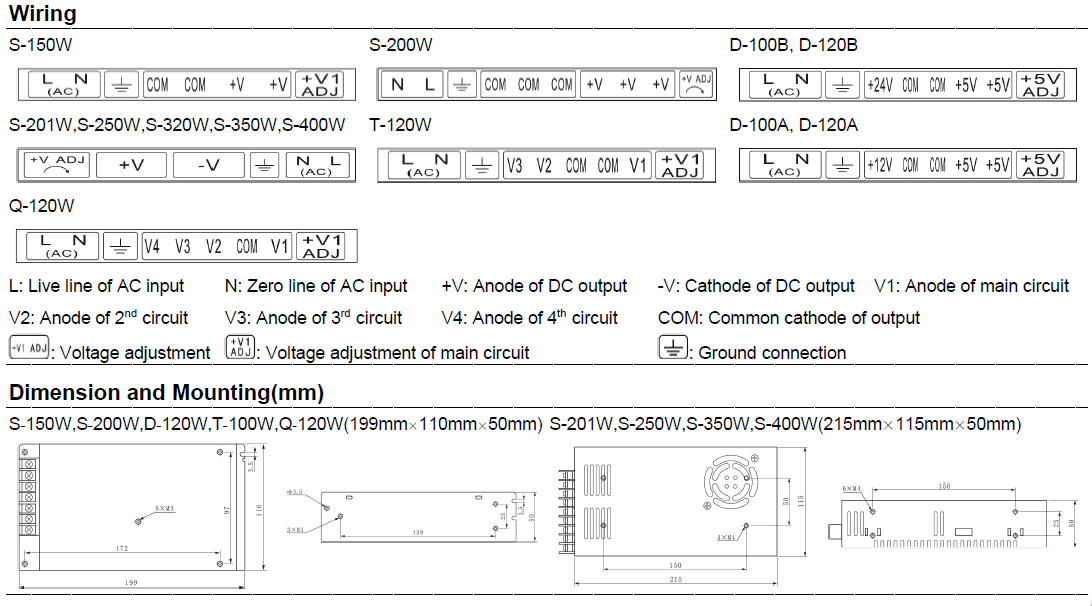

Model		S-200W Single Output General Type Switching Power Supply
Input Voltage		AC170-AC264V 47-63Hz DC240-DC370V
Output	Power	200W
	Voltage	5V-35A; 12V-16.5A; 24V-8.5A; 48V-4A
Function Protection		Short circuit, overload(overcurrent ), overvoltage
Dimension		19911050mm

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
