201275ohm Series Overhead Rg11 Cable

Name: 201275ohm Series Overhead Rg11 Cable
Brand: all-electronics-online.com
SKU: 685676575
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	30000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ISO
Application:	Overhead
Type:	Coaxial Cable

Product Description

RG11 is 75ohm series cable which is applied at CATV
(1)CE ISO RoHS
(2)Factory price
(3)Good quality

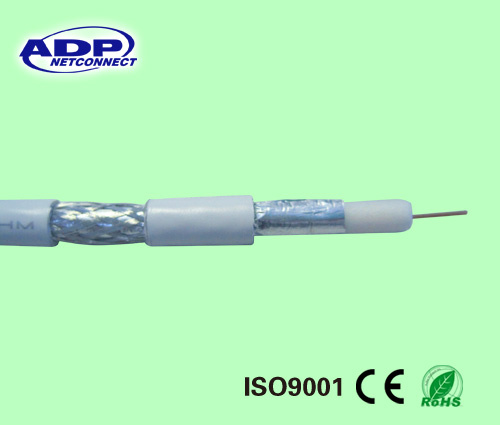

RG11 CABLE

BASIC CONSTRUCTION

Conductor 1.63mmCCS/BC
Dielectric 7.11mmFoam PE
Shield 26mmAl bonded foil+40%-95%Alloy wire
Jacket 10.03mmPVC

BASIC CHARACTERISTICS

Nominal Impedance 75ohms
Nominal Velocity of Propagation 85%
Nominal Capacitance 50(pF/m)
Sparker Test 4000(VAC)
SRL 20dB

Attenuation performance
Frequency(MHz) Maximum(dB/100ft) Maximum(dB/100m)
5 0.38 1.25
55 0.96 3.15
211 2.00 6.50
250 2.05 6.72
300 2.25 7.38
350 2.40 7.90
400 2.60 8.45
450 2.75 9.02
500 2.80 9.50
550 2.90 9.98
600 3.18 10.43
750 3.65 11.97
865 3.98 13.05
1000 4.35 14.27

Packing:
1) Packing Lengths: 305m/reel/CTN, Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
