2014 Newest Design High End Sk3110 Series of Electronic Thermostat

Name: 2014 Newest Design High End Sk3110 Series of Electronic Thermostat
Brand: all-electronics-online.com
SKU: 702445652
Availability: InStock
Rating: 4.9 (66 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SK3110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	+5c to +60c
Accuracy:	98%, 98%
Voltage Scope:	24V-230V
Usage:	Air Purifier
Control Type:	Mechanical
Type:	Temperature Controller

Product Description

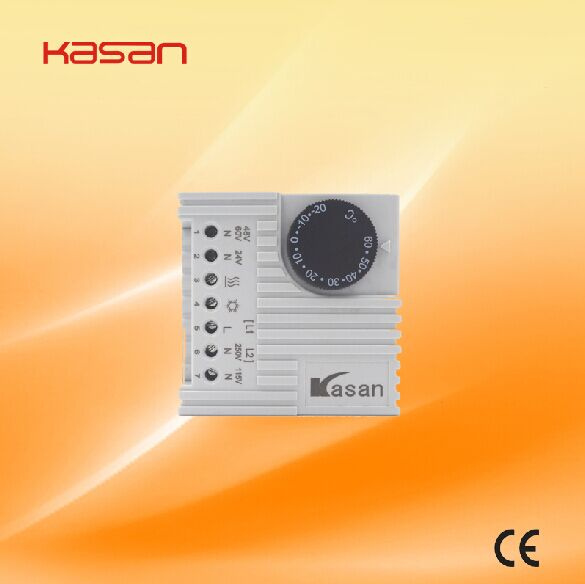

2014 Newest design High End SK3110 Series Of Electronic Thermostat

Introduction:

Inner temperature controller for switchgear cabinet
Especially used for controlling fan filter, heater and exchanger,also could be monitoring the electric cabinetinner temperature when working as signal arcuser.

Technical Parameter:

Make bimetal sensor as heat sensitivity set to feedback of heat.
Contact point scheme: single switch over contact point as instant switch component allowed load of contact point.

KL5-3          AC10(4)A

DC=30W     KL5-4(Cooling)

AC5(4)DA   DC=30W

(D)=sensitivity load at cosΦ=0.6

1.Adjusting range:+5°Cto +60°C

2.Weight:105 gappr

3.Size: 70*70*33.5mm

4.Switch discrepancy" 1K±0.8K

5.Voltage scope is wide,any type could be used from 24V to 230V

6.Time-saving connection ,terminal block could be installed with screw form outside

7.Easy installation, could be installed to 35mm din rail vertically or horizontally. According to EN50022,it could be clipped to NS/35-ES cabinet profile with its accessory adapter.

Brand	KASAN/OEM
Product Name	Electronic Thermostat
Model	SK3110.000
Color	Grey
Feature	Constant temperature and heating
Dimension	707033.5
Casing Material	plastic according to UL94 V-0, light grey
