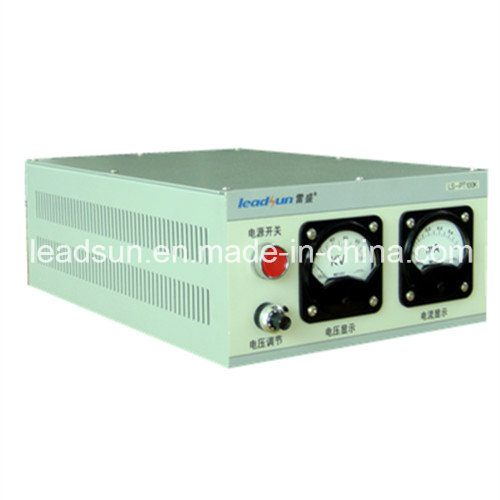

2015 New Design 220V AC Ls150kv/5mA AC Stabilized High Voltage Power Supply

2015 New Design 220V AC Ls150kv/5mA AC Stabilized High Voltage Power Supply
Price: US $ 2900-3400/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
Prod Model: LS150KV/5mA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
L*H*B: 250*370*750mm
Ambient Temperature: -20oc~50oc
Cooling: Air Cooling
Work Frequency: 60kHz
Output Type: Single
Warranty: 1 Year
Output Power: >500W
Input Voltage: 220V
Connection Mode: Series Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CE
Starting Mode: Soft Start
Brand: Leadsun

Product Description

High Frequency High Voltage Power Supply LS150KV/5mA
Specifications
ItemParametersRemarks
Input voltage220V ACWave less than 10%
Rated power750WFull load, output Umax, Imax
Rated output voltage150KV
Rated output current5mA
Comparative voltage control accuracy1.5%Uo=80%Umax
Absolute voltage control accuracy3%Uo=80%Umax
Voltage/temperature coefficient50V/1K
Voltage program accuracyBetter than 1.5%
Voltage output range0-150KV adjustable
Output limiting current5mA
Control response timeBetter than 50mS
Ambient temperature-20 ~ 50ºC
Ambient humidity10% ~ 90% no atomization
CoolingAir cooling
StartingSoft start
Constant voltage control modePhase-shifting PWM
Current control modeConstant current of average value
Peak value testing		Within 100nS peak value loading, cut off and restart automatically
Working frequency60kHZ
Converting efficiencyBetter than 80%Output voltage from 50% - 75%, efficiency 80% - 90
Voltage regulation rate1%
Ripple CoefficientLess than 1%
Current and voltage program modeBy potentiometer
Dimension250*370*750mm   L*B*H
This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
