| Prod Model: |
DSC15081108 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
0.10*28 Tc/ Bc/Tccs |
| Insulation: |
PE |
| Filler: |
Cotton Yarn |
| Shield: |
Al Foil+ 96*0.10mm Tccs/ Tc/Bc Braiding Wire |
| Jacket: |
6.8mm Clear PVC |
| Key Words: |
Low Noise Microphone Cable |
| Application: |
Monitor |
| Color: |
Blue |
| Type: |
Twisted Pair |
| Connector: |
XLR |
| Certification: |
CCC |
| Brand: |
OEM |
Product Description

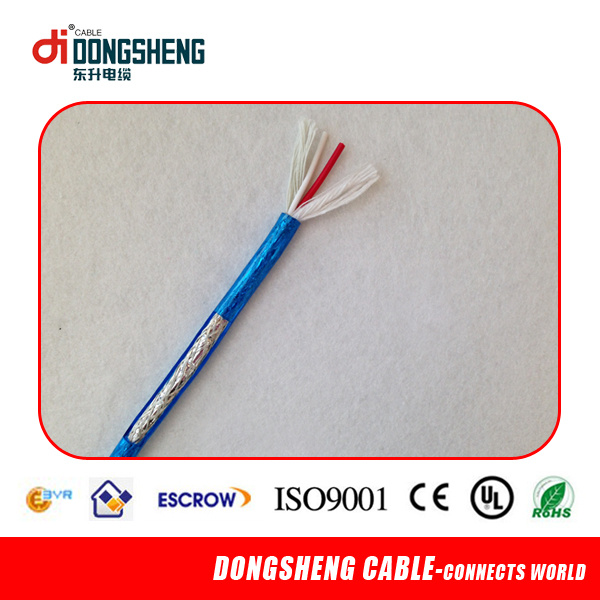

2015 NEW low noise microphone cable
low noise microphone cable
Audio and Video cable YPX-516
1.Conductor: OFC and TC
2.Jacket: disposable PVC
3.OEM is welcome
Audio and Video cable YPX-516
28*0.10mm TCCS/TC/BC conductor + PE + cotton yarn + Al foil+ 96*0.10mm TCCS/ TC/BC braiding wire +6.8mm Clear PVC
Features:
1.Type: audio and Video cable
2.Packing: carton box
3.Conductor: BC/ TC/TCCS
4.Jacket: disposable PVC
5.OEM is welcome
6. high quality with competitive price
Description:
1.inner conductor: 0.10*28 TC/ BC/TCCS
2. the red and white double core wire
3.shielding layer: 30 cotton wires, 0.10*96 TCCS, tinsel wires and cotton yarn.
4.Structure: lapping
5.Jacket: clear PVC material with various colors
6.Wire diameter: 6.8mm
| Item | Conductor mm | Insulation Dia. | 1st Shield | 2nd shield | Sheath O.D. | Sheath Material |
| 2C*0.2mm2 | 12/0.15(OFC) | 1.4mm PVC | Aluminum Foil | Copper Clad Aluminum (CCA)
Braiding 96/0.12 | 5.5mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(OFC) | 2.0 mm PVC | Aluminum Foil | Tinned Copper Clad Aluminum (TCCA)
Braiding 80/0.12 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(OFC) | 2.4mm PVC | Aluminum Foil | Tinned Copper Clad Aluminum (TCCA)
Braiding 80/0.12 | 7.0mm | Elastic PVC Black |
| 2C*0.2mm2 | 12/0.15(OFC) | 1.4mm PVC | Aluminum Foil | OFC
Braiding 64/0.08 | 5.5mm | Elastic PVC Black |
| 2C*0.3mm2 | 16/0.15(OFC) | 1.7mm PVC | Aluminum Foil | OFC
Braiding 64/0.08 | 5.9mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(OFC) | 2.0 mm PVC | Aluminum Foil | OFC
Braiding 80/0.08 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(OFC) | 2.4mm PVC | Aluminum Foil | OFC
Braiding 96/0.08 | 7.0mm | Elastic PVC Black |
| 2C*0.3mm2 | 16/0.15(TC) | 1.7mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 64/0.1 | 5.9mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(TC) | 2.0 mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 80/0.1 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(TC) | 2.4mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 96/0.1 | 7.0mm | Elastic PVC Black |

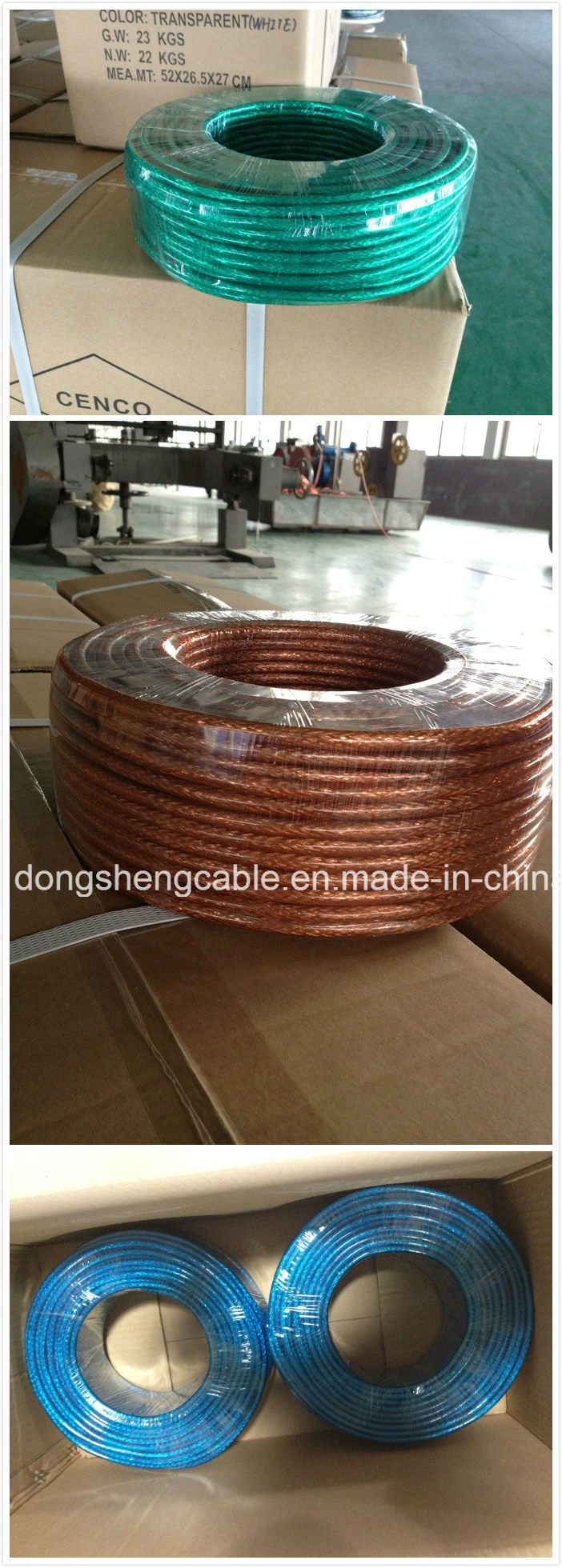

Produc Photos:

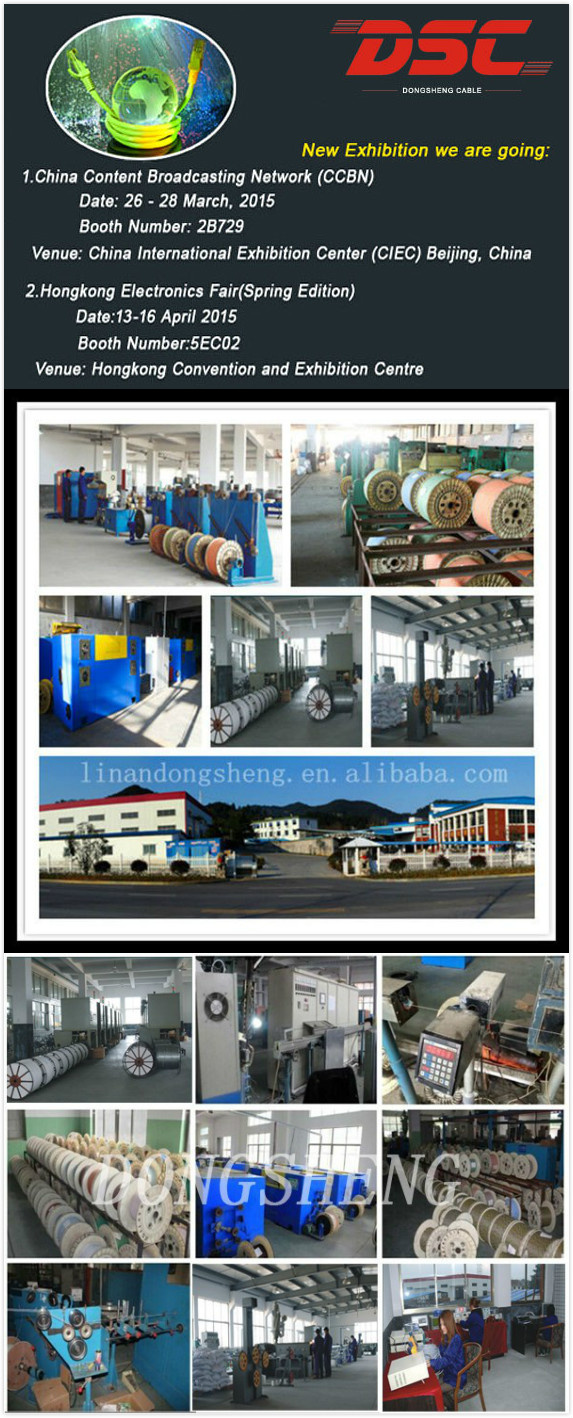

Factory Pictures:
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
