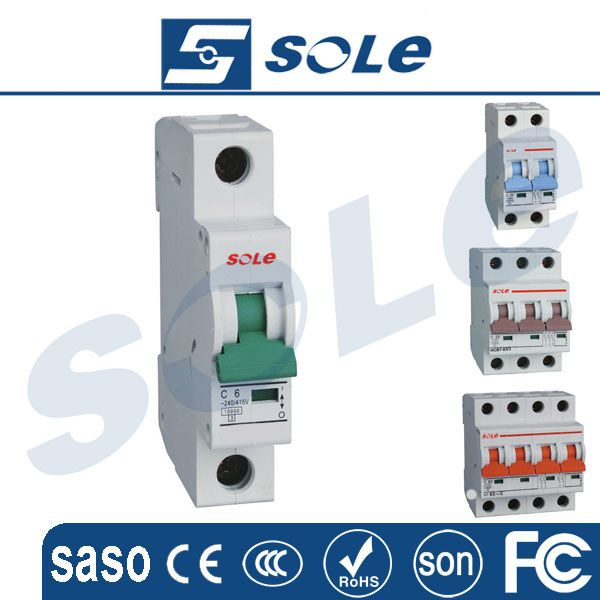

2015 New Slmcb7-63III MCB Mini Circuit Breaker

Name: 2015 New Slmcb7-63III MCB Mini Circuit Breaker
Brand: all-electronics-online.com
SKU: 734559125
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	US $ 0.5-2/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLMCB7-63III
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MCB:	Miniaure Circuit Breaker
Structure:	MCB
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Electric Type
Installation:	Insert
Arc-extinguishing Medium:	Air
Speed:	Normal Type Circuit Breaker
Poles Number:	1,2,3,4p

Product Description

Applications

The products of HCB7-63Ibelong to the advanced level of the nineties in the world instead of the older generation of HCB7. They have protective function as shortage as overload, and are used in lighting distribution system in industry,
Commerce and welling, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20), high break capacity, reliable sensitive action, convenient, multipole assembling, long life etc. They are mainly
Adapted to the circuit of AC 50Hz, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal
Condition.

Mechnical Specication

The length of exposed plane	45mm
Enclosure height	80mm
Enclosure width	17.5mm per pole(single pole)
Enclosure width	35mm: 1P+N(two poles)
Mounting manner	Used for track of 35mm of IEC standard
Terminal manner	Two-function terminal can connect with
Terminal manner	busbar and conducting wire
Terminal block capacity	Wire 1-25mm 2
	Conducting wire 0.8-2mm

Specification

Electrical Specification	EN60898(IEC898) GB10963-99
Conforms to standard of electrical	230V/400V; 50/60Hz
Rated current(Ue)	10KA IEC898(0.5-6.3A)
Rated breaking capacity	15KA IEC947-2(0.5-6.3A)
Short circuit breaking capacity of DC	Max. 48V(HCB7...,10KA)single pole
Performance	Max. 250V(HCB7-DC, 6KA)single pole
Max. fuse that can be connected to	C, D characteristic curve
Selective grade	100AgL(>10KA)
Working ambient temperature	3
Enclosed protective class	-5 to+40
Life	P40(Under mounting)
Electrical mechanical	Not less of 8000 times switching operation
Electrical mechanical	Not less of 20000 times switching operation

Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
