Product Description

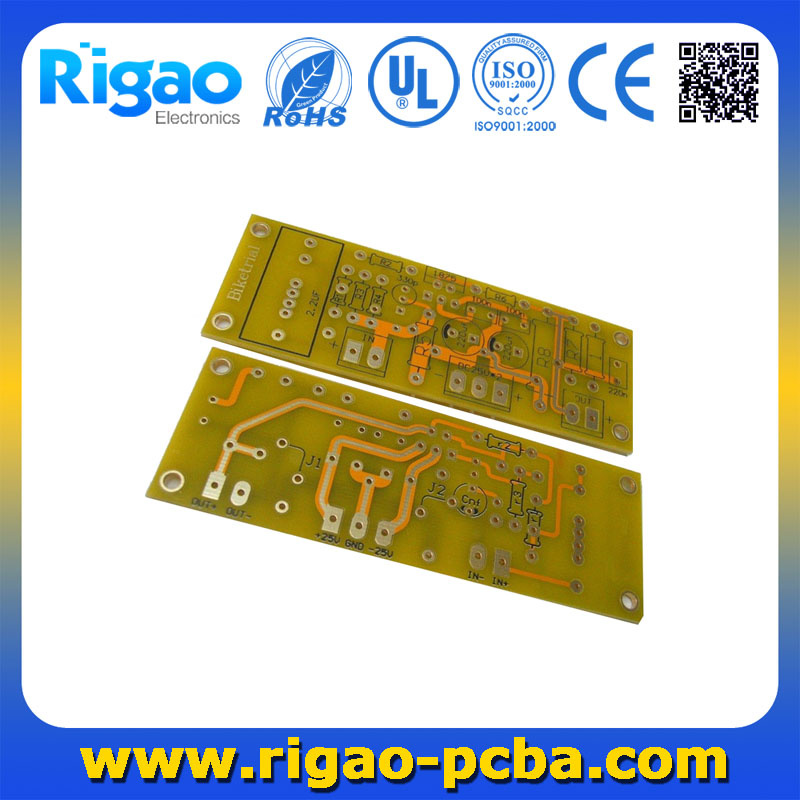

PCB Assembly Drawing Example
Shenzhen Rigao Electronics Co, . Ltd is an experienced PCB and PCBA manufacturer in Shenzhen, China. After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to guarantee a complete service with technical back up, offering a cost advantage and continuity of supply.
For making PCBA, customers just need to provide us with Gerber file and bill of material. Components procurement is one of the featured services we can provide. IC, battery, fuse, LCD, transformer, LED Diode, connector, sensor, we could purchase all these electronic parts to our customers.
Our PCBA capability and services: SMT/THT/DIP.
1. Component Purchasing Service
2. SMT assembly and through hole components insertion
3. IC pre-programming / Burning on-line
4. Function testing as requested
5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)
6. Packing design
.Detailed Specification of PCB Manufacturing
| Types: | Single-sided, Double-sided, Multi-layers (max 6 layers) and
Rigid-flexible PCB, Aluminium board |
| Surface Finishing: | HASL(LF), Gold plating, Electroless nickel immersion gold,
Immersion Tin, OSP(Entek) |
| Base Material: | Polyimide(Kapton), Polyester(PET), Aluminium, FR4 |
| Copper Foil: | ED/RA |
| Min. Line Width: | 2 mil |
| Min. Line Spacing: | 2 mil |
| Min. Hole Size: | 0.2mm |
| Max. Board Size: | 800x400mm |
| Min. Board Thickness: | 0.1mm |
| Min. Solder Mask Thickness: | 10um |
| Solder Mask Types: | Green, yellow, black, white, blue, red and clear |
| Profiling: | Punching, Routing, V-cut |
| Soldering Thermal Resistance: | 300°C/10 seconds |
| Peeling Strength: | ≥1.4kg/cm |
| Surface Resistance: | 105mΩ |
| Insulation Resistance: | 105mΩ |
| Dielectric Strength: | 9.8x105v/cm |
| Flammability: | UL-94V-0 |
| Performance Test: | 100% electrical and electricity performance test |
PCB/PCBA Description:
1. Single sided PCB, double sided PCB & multilayer PCB with competitive price, good quality and excellent service.
2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium and batch production.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
