Shenzhen Santak Castle Power Supply Co., Ltd. >> 2016 Hotsell Solar Inverter 1kVA with 25A MPPT Controller

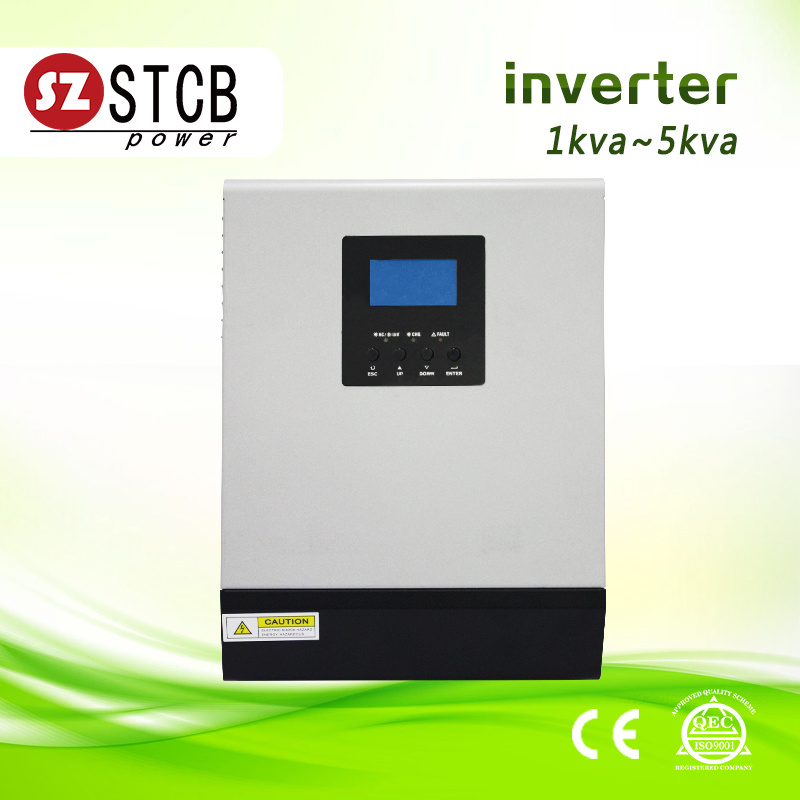

2016 Hotsell Solar Inverter 1kVA with 25A MPPT Controller

2016 Hotsell Solar Inverter 1kVA with 25A MPPT Controller
Price: US $ 245-268/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: PH20 1KVA
Power Capacity: 1kVA/800W
Peak Power: 2kVA
AC Input: 220V
DC Input: 24V/48V
Charge Current: 20A/25A
Waveform: Pure Sine Wave
Power Factor: 0.99
Application: Home Applications

Product Description

2016 Hotsell Solar Inverter 1KVA with 25a MPPT controller

Product Description

  • Pure sine wave inverter
  • Built-in MPPT solar charge controller
  • Selectable input voltage range for home appliances and personal computers
  • Selectable charging current based on applications
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery performance
  • Cold start function
  • Parallel operation with up to 6 units only available for 4KVA/5KVA
  • Optional Remote Control Panel available



Specifications

Model

PH20-

1000

PH20-

2000

PH20-

3000

PH20-

3000

PH20-

4000

PH20-5000
DC VOLTAGE1K-24v2K-24v3K-24v3K-48v4K-48v5K-48v
RATED POWER800W1600W2400W2400W3200W4000W
INPUT
Voltage230 VAC
Selectable Voltage Range

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency Range50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)230VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency (Peak)90%-93%93%
Transfer Time10 ms (For Personal Computers); 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY & AC CHARGER
Battery Voltage24 VDC24 VDC24 VDC48 VDC48 VDC
Floating Charge Voltage27 VDC27 VDC27 VDC54 VDC54 VDC
Overcharge Protection31 VDC31 VDC31 VDC62 VDC60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power600 W600 W600 W900 W3000 W
MPPT Operating Voltage30V~66VDC30V~66VDC30V~66VDC60V~88VDC60V~115VDC
Maximum PV Array   Open Circuit Voltage75VDC75VDC75VDC102VDC145VDC
Maximum Solar Charge Current25A25A25A18A60A
Max AC Charge Current20A30A30A15A60 A
Maximum Charge Current25A30A30A18A120A
AC and solar charger can't work at the same time
Maximum Efficiency98%

Standby Power

Consumption

2 W
PHYSICAL
Dimension D*W*H100*272*355 (mm) 140*295*540 (mm)
Net Weight (kgs)6.877.412.513.5
OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C - 55°C
Storage Temperature-15°C - 60°C
Company & Factory

Our Services

1.  OEM&ODM services acceptable.

2. 1% pcb board provided .

3. Lots of cooperated agent for shipping by sea or by air.

4. 1year warrenty , if it is quality problem , we will provide the parts for free .

FAQ

Q1: Why you should choose us?

    ---16 years UPS experiences

    ---Professional team for both oversea and domestic market

     --UPS provider of  SCO meeting 2015 and  Shanghai-Kunming high-speed railway project

    ---Qualified product plus competitable prices

    ---Delivery in time

    ---Sincerely services

Q2: How is your after-sale service?

      ---We provide 12-24 months warranty since the delivery date and free maintenance /

     replacement during  warranty period.

Q3: What kind of certification you have?

    ---ISO9000, CE,ROHS,UL,and so on

    Our products could pass different labor testing according to different countries' requirements.

Q4: Delivery time:

    ---Standard products could be delivered within 15 days; customized products could be

    developed within 45-60days.

SHENZHEN SMARTKEY POWER Co., Ltd / SHENZHEN SANTAK CASTLE POWER SUPPLY Co., Ltd. is a professional engaged in an uninterruptible power supply (UPS), small uninterruptible power supply, solar inverter, solar home system, valve control maintenance free lead-acid battery, voltage regulator design, products such as the production, sales and service company 16 years ago, and has a good reputation in the local market. Professional R & D team and professional export team. The United States and Germany, battery, UPS power supply technology and reserves of high quality and efficiency to adapt to market research and management team and the development of industry demand, universities and scientific research institutions established extensive and close relations of cooperation, research and development to ensure the sustainable development of enterprises and high-tech products.

DC UPS is a backup protection power for network communication equipment. It can be widely applied to various low-power DC devices, such as routers, modems, IP cameras, closed-circuit television monitoring and POE switches, so as to ensure network communication in the case of blackout continuity, and also to charge mobile phones and tablet computers.

UPS has 16 years of experience in UPS production and sales, and has many rich experience in UPS pre-sale service after many years of operation and development in many parts of China and Europe, such as North and South America, South Asia, Middle East, Africa and many other fields. 16 years of industry struggle to build our technical team, at any time to provide customers with high quality power solutions and solutions.

The use of clean energy, such as inverting solar energy, is the trend of future energy development, and plays an important role in energy conservation and environmental protection. We have entered the solar home industry to produce high frequency and high frequency solar inverters to meet the needs of customers in different regions.

The annual sales volume in 2016 is about $4 million 500 thousand.

Shenk is still developing, is still in progress, not only is the company with the boss, and we have been in the staff. Along the way, people have experienced a lot of Shenk, forward, also has the growing stagnation; Family, also have a family of regret to leave; Have to climb the joy, also occasionally fall pain.

In this bumpy road, is the achievement of our dream journey shenk!
