2016 New Model 1000W Home UPS Inverter Price Competitive
| Price: |
US $ 48-56/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
EP1000 plus |
| Size: |
224*255*80 |
| Cover: |
Plastic |
| Color: |
Black |
| Transfer Time: |
4ms Typical, 8ms Max. |
| Net Weight: |
2.3kg or 2.5kg |
| Charge Current: |
10/20A Adjustable |
| Capacity: |
600W-1440W |
| Frequency: |
High Frequency |
| Battery Reverse Function: |
Yes |
| Warranty: |
One Year |
Product Description
2016 New Model 1000W Home UPS Inverter Price Competitive Features of power inverter EP1000 plus series:
- High reliability with CPU control.
- Inner-equipped protection of over-load, short-circuit, over-voltage, low-voltage over-heating
- Self-diagnosis function, capable of detecting status at inverter and battery in the Inverter.
- Automatic voltage regulation (AVR), most suitable for areas where commercial power supply is unstable.
- Extra long standby time.
- Additional battery connections possible for longer power supply time according to customer's requirements.

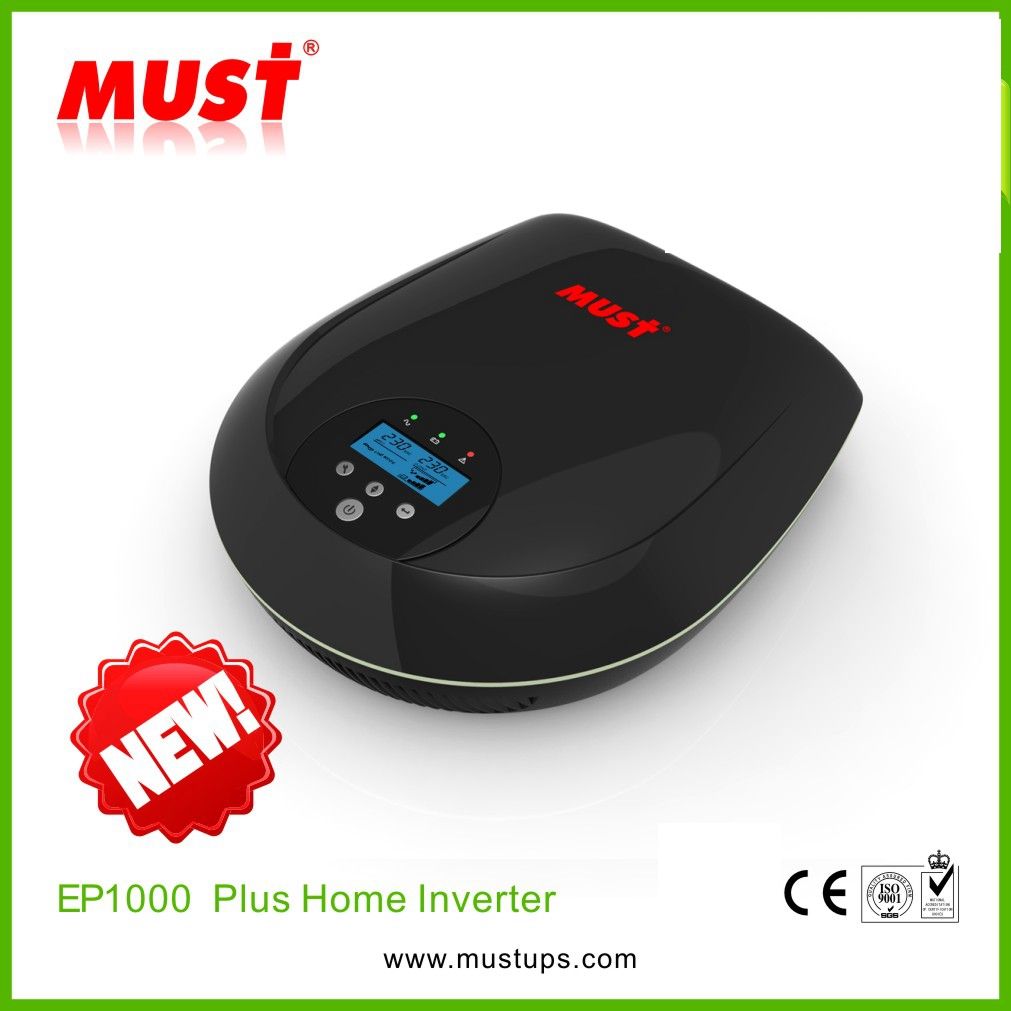

Pictures of EP1000 plus series:
Specification:| MODEL | 115V Models | 230V Models |
| OUTPUT |
| Power Levels crated at nominal inputs | 500VA/300W;1000VA/600W;2000VA/1200W | 500VA/300W;1000VA/600W;2000VA/1200W |
| Output Voltage | 120V | 230V |
| Phase | Single |
| Voltage Waveform | Modified Sine Wave |
| Power Factor | 0.6 |
| Output Frequency(Synchronized to Mains) | Auto Select for 50/60Hz |
| Regulation (Nominal) | 10%-18% |
| Regulation(Battery mode) | ±0.1HZ |
| Transfer time | 8ms Typical |
| INPUT |
| Nominal Voltage | 110V/120V Selectable | 220V/230V/240V Selectable |
| Phase | Single |
| Voltage range | 90 - 145VAC or 170-280VAC ( Narrow Range ) |
| 50-145VAC / 90-280VAC (Wide Range) |
| BATTERY |
| Charger Current | 500VA/300W/12VDC:10 Amp + / - 1Amp;1000VA/600W/12VDC/:10Amp + / - 1Amp; 2000VA/1200W/24VDC:10 Amp + / - 1Amp |
|
| Floating Voltage | 500VA/300W:13.7V + / - 0.2V; 1000VA/600W:13.7V + / - 0.4V; 2000VA/1200W:27.4V + / - 0.4V |
|
| Overcharge Protection | 500VA/300W: 15V +/- 0.3V charger stops and fault |
| 1000VA/600W:15V +/- 0.6V charger stops and fault |
| 2000VA/1200W: 30V +/- 0.6V charger stops and fault |
| EFFICIENCY |
| AC to AC | 95% "> >95% |
| DC to AC | >80% |
| INDICATOR |
| AC Mode | Green LED lighting |
| Battery Mode | Yellow LED lighting |
| Battery Charging Mode | Green LED flashing every 2 seconds |
| Overload | Red LED flashing every 0.5 second |
| Fault | Red LED lighting |
| AUDIBLE ALARM |
| Low Battery at Battery Mode | Sounding every 2 seconds |
| Overload | Sounding every 0.5 second |
| Fault | Continously sounding |
| Protection |
| Full Rrotection | Deep Discharge, Overcharge, and Overload protection |
| ENVIRONMENTAL AND SAFETY |
| Operating Temperature | Up to 1500 meters:0 °Cto 40°C (32°F to 104°F) |
| Transit/storage Temp. | 15°C below zero to 50°C (5°F to 131°F) |
| Relative Humidity | 0 - 90% non condensing |
| Quality control system | ISO 9001:2000, ISO 14002-2004 |
| PHYSICAL |
| Appearance | Size(mm)L x W x H | 224 x 255 x 80 |
| Weight(Kg) | 500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg |
| Carton BOX(mm)L x W x H | 414*311*560(3pcs) |
| Gross Weight Weight(Kg) | 500VA / 300W:7.4kg ;1000VA /600W :8kg ; 2000VA / 1200W :9.5kg |
Packaging & Shipping
Power Inverter Package: Client's OEM Package Welcomed
Our ServicesPayment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
Samples are Available for Testing and Market Test. OEM is welcomed for us.
One Year Warranty on MUST POWER Products
Guides and After-service Consultancy
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily. Company Information
Must Power Limited
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 200 workers |
| Department | 7-team Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
FAQQ1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Why not press the below "SEND" button to send us an email about your detail requirements?Scan the Code and a suprise for you!
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
