| Prod Model: |
TPZ1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Span: |
0~5...50bar |
| Overload: |
1.5 Times of Full Scales |
| Accuracy Grade: |
1%Fs |
| Power Supply: |
4.5~5.5V DC (5~20V DC as Required) |
| Output Mode: |
2-Wire or 3-Wire |
| Electrical Connection: |
Hirschmann/Packard/Cable Connection |
| Weight: |
45g |
| Application Range: |
Air Conditioner, Automobile, Compressor, etc |
| Class Of Protection: |
IP67 |
| Certificate: |
CE, Ex Approved |
Product Description

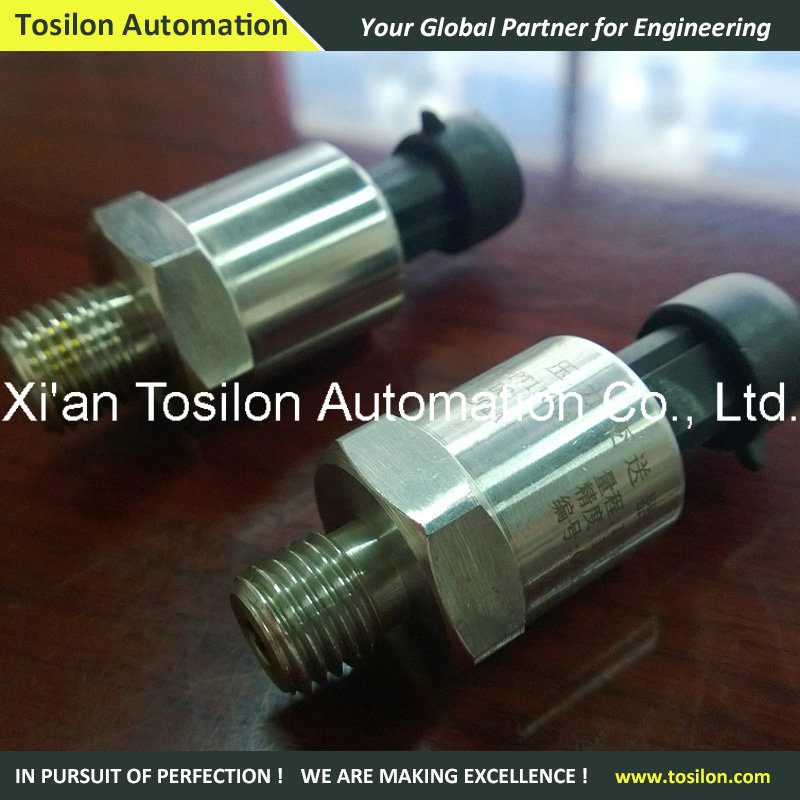

Tosilon 2016 New Price Mini Oil Pressure Sensor for Generator (CE, Ex Approved)
Design and Manufacturing According to CE Standard
Introduction
Tosilon TPZ series Pressure Transmitter is especially designed for the application of Compressor, Automobile, Air Conditioner, etc. The pressure cores and the chip are imported from German. Equipped with the advanced production lines and supported by the advanced technology of adjustment and digital compensation, TPZ series Transmitter has acquired RoHS and CE certificate.
Features
· Full stainless steel construction;
· Thread connection optional;
· Electric connection optional;
· Constant current supply;
· Ceramic core and cell imported from German;
· Multiple alternative for Pressure Port;
· CE approved
Performance Parameters (For Details, please contact Tosilon)
Measuring Range Overload
0~5...50bar 1.5 times of full scales
Accuracy (Nonlinear +Repeatability+ Hysteresis)
± 1% F. S, ± 0.5% F. S
Type of Transmission Power Supply
2-wire 3-wire 10~30V DC 10~30V DC
Output Insulation
4~20mA DC 0.5~4.5V DC, (U-10)/0.02(Ω ) >100kΩ
Response time Vibration / Shock
<10ms (0...99%) 10g/52000HzX/Y/ZAxis/20g 11ms
Electrical connection Wetted Parts & Shell
Hirschmann/Packard/Water-Proof Joint, stainless steel 1Cr18Ni9Ti, or brass
Electromagnetic Transmit Electromagnetic Sensitivity
EN50081-1/-2 EN50082-2
Process Connection
G1/4"(Fluorine rubber Seal), 3/8"-24UNF-2A, 7/16"-20UN or M12× 1.25 others on request
Weight Class of Protection
45g IP67
For more information, please contact Tosilon
Your Global Partner for Automation
www.Tosilon.COM
| Measuring range | 0~5...50bar |
| Overload | 1.5 times of full scales |
Accuracy
(Nonlinear +Repeatability+ Hysteresis) | ±1% F.S
±0.5% F.S |
| Type of transmission | 2-wire | 3-wire |
| Power supply | 10~30V DC | 10~30V DC |
| Output | 4~20mA DC | 0.5~4.5V DC |
| Insulation | (U-10)/0.02(Ω) | >100kΩ |
| Response time | <10ms (0^99%) |
| Vibration / shock | 10g/5^2000HzX/Y/ZAxis/20g 11ms |
| Electrical connection | Hirschmann/Packard/Water-Proof Joint |
| Wetted parts & shell | stainless steel 1Cr18Ni9Ti, or brass |
| electromagnetic transmit | EN50081-1/-2 |
| electromagnetic sensitivity | EN50082-2 |
| Process connection | G1/4"(Fluorine rubber Seal),3/8"-24UNF-2A,7/16"-20UN or M12×1.25 others on request |
| Weight | 45g |
| IP rating: IP67 |
