| Prod Model: |
OCR-1600-04U3-0.4SA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Ocl |
| Voltage: |
380V/440V 50Hz |
| Power: |
1.5-630kw |
| Dimension(L*W*H): |
110*150*130-400*330*450mm |
| Weight: |
2.5-95kgs |
| Warranty: |
One Year |
| Rated Operation Power: |
3/380V/50Hz or 660V/50Hz |
| Rated Operating Current: |
3A to 2000A |
| Reactive Strength: |
Core-Winding 3000VAC/50Hz/10mA/10s Free of Arcing |
| Insulation Resistance: |
1000VDC, Insulation Resistance>=100 |
Product Description
Sanyu High Performance Output AC Reactor (OCL 1.5-630KW)
AC Reactor
Reactors
Electric Reactors.
AC Output reactor
AC Output Choke
Output Choke
AC Choke
----------------------------------------------------------------------------------------------------------------------------------------------
About Sanyu company and Products:
Sanyu is specializing in producing electric products. 300 workers, 20000m2 workshop,12 years experience, ISO&CE certificated, in the city of Shanghai port, this is how Sanyu keep good quality and competitive prices for global valued customers.
Product Features:
| 1. Rated Operation Power: 3/380V/440V/50Hz or 660V/50Hz |
| 2.Rated Operating Current: 3A to 2000A@40ºC |
| 3.Reactive Strength: Core-Winding 3000VAC/50Hz/10mA/10S Free of arcing breaking(tested in factory) |
| 4.Insulation Resistance: 1000VDC, insulation resistance>=100MΩ |
| 5.Reactor'S noise is less than 80dB(to be measured at the point 1 meter away from the reactor horizontally) |
| 6.Protection class: IP00 |
| 7.Insulation class: Above F |
| 8. Standard IEC289, 1987 Reactor, GB10229-88 Reactor(equivalent to IEC289:1987) jb9644-1999 for semi-Conductor transmission |
Product Model:
| Inverter power(KW) | Voltage drop (%) | Output Reactor
Model |
| 1.5 | 2% | OCR-0005-1M40-0.4SC |
| 2.2 | 2% | OCR-0007-1M00-0.4SC |
| 3.7 | 2% | OCR-0010-0M70-0.4SC |
| 5.5 | 2% | OCR-0015-0M47-0.4SC |
| 7.5 | 2% | OCR-0020-0M35-0.4SC |
| 11 | 2% | OCR-0030-0M23-0.4SC |
| 15 | 2% | OCR-0040-0M18-0.4SC |
| 18.5 | 2% | OCR-0050-0M14-0.4SC |
| 22 | 2% | OCR-0060-0M12-0.4SC |
| 30 | 2% | OCR-0080-087U-0.4SC |
| 37 | 2% | OCR-0090-078U-0.4SC |
| 45 | 2% | OCR-0120-058U-0.4SA |
| 55 | 2% | OCR-0150-047U-0.4SA |
| 75 | 2% | OCR-0200-035U-0.4SA |
| 90 | 2% | OCR-0250-028U-0.4SA |
| 110 | 2% | OCR-0250-028U-0.4SA |
| 132 | 2% | OCR-0290-024U-0.4SA |
| 160 | 2% | OCR-0330-021U-0.4SA |
| 185 | 2% | OCR-0390-018U-0.4SA |
| 220 | 2% | OCR-0490-014U-0.4SA |
| 280 | 2% | OCR-0600-012U-0.4SA |
| 300 | 2% | OCR-0660-011U-0.4SA |
| 400 | 2% | OCR-0800-08U7-0.4SA |
| 450 | 2% | OCR-1000-07U0-0.4SA |
| 500 | 2% | OCR-1200-05U8-0.4SA |
| 630 | 2% | OCR-1600-04U3-0.4SA |

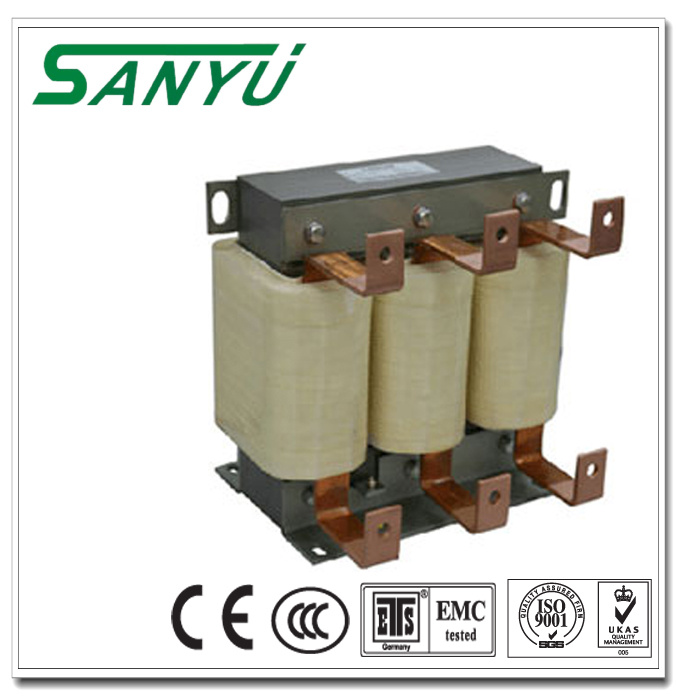

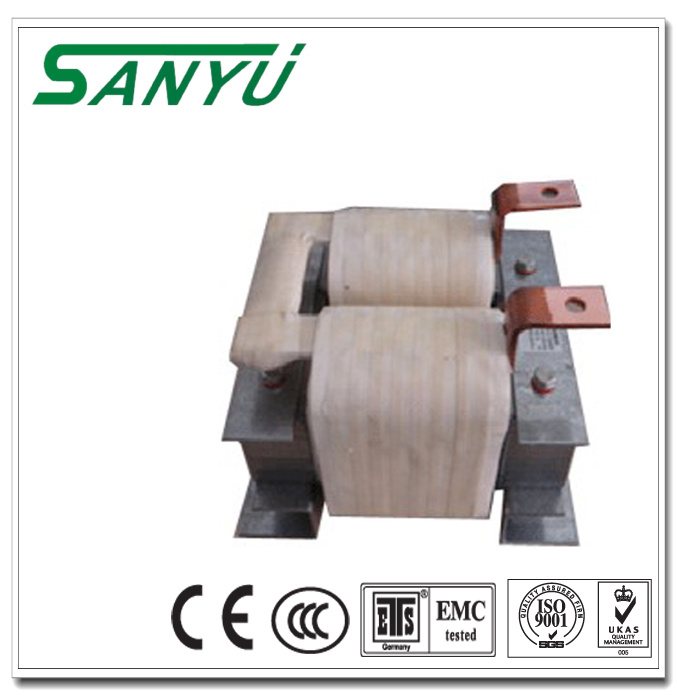

Product Picture:
About Certification:
Sanyu has got CE, SGS, ISO9001, and CCC certifications:

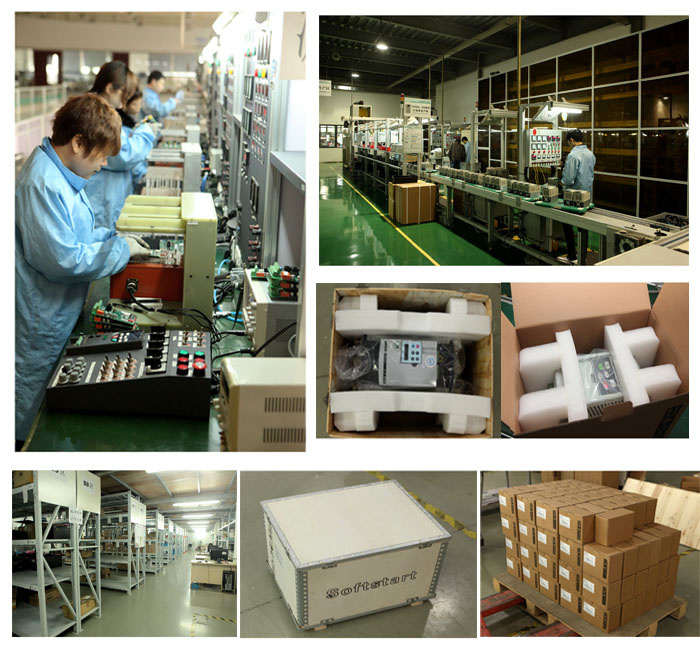

Production Procession:
About Samples:
Sanyu can offer sample product. For normal product, we can delivery within three working days; for speical product, we can delivery around five working days. For one piece sample, we advise you to use express way such as DHL, UPS, Fedex, EMS etc.
About shipping and delivery:
Sanyu has large inventory in stock, so for normal product, we can delivery in around three working days. For the delivery way, you can choose by sea, by air, by express way etc. It's according to your requirement. Also we can we will give you our advise since we have abudant experience.
Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.
SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.
In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.
Let's make a bright future together!
