| Prod Model: |
MC4, T-MC4, Y-MC4 |
| Cable Cross Section On Request: |
2.5/4.0/6.0mm2 |
| Dia. Of Pin Or Socket: |
4mm |
| Protection Degree: |
IP67/IP2X |
| Insulation Material: |
PC/PA/PPO/TPE |
| Product Standard: |
DIN V VDE V 0126-3/12.06, UL1703 Standard |
| Rated Voltage: |
1000/1500V |
| Free Sample: |
Available |
| Quality Assurance: |
5 Years |
| MOQ Of Mc4: |
200 Sets |
| Item Name: |
IP67 Solar PV Mc4 Connector |
Product Description

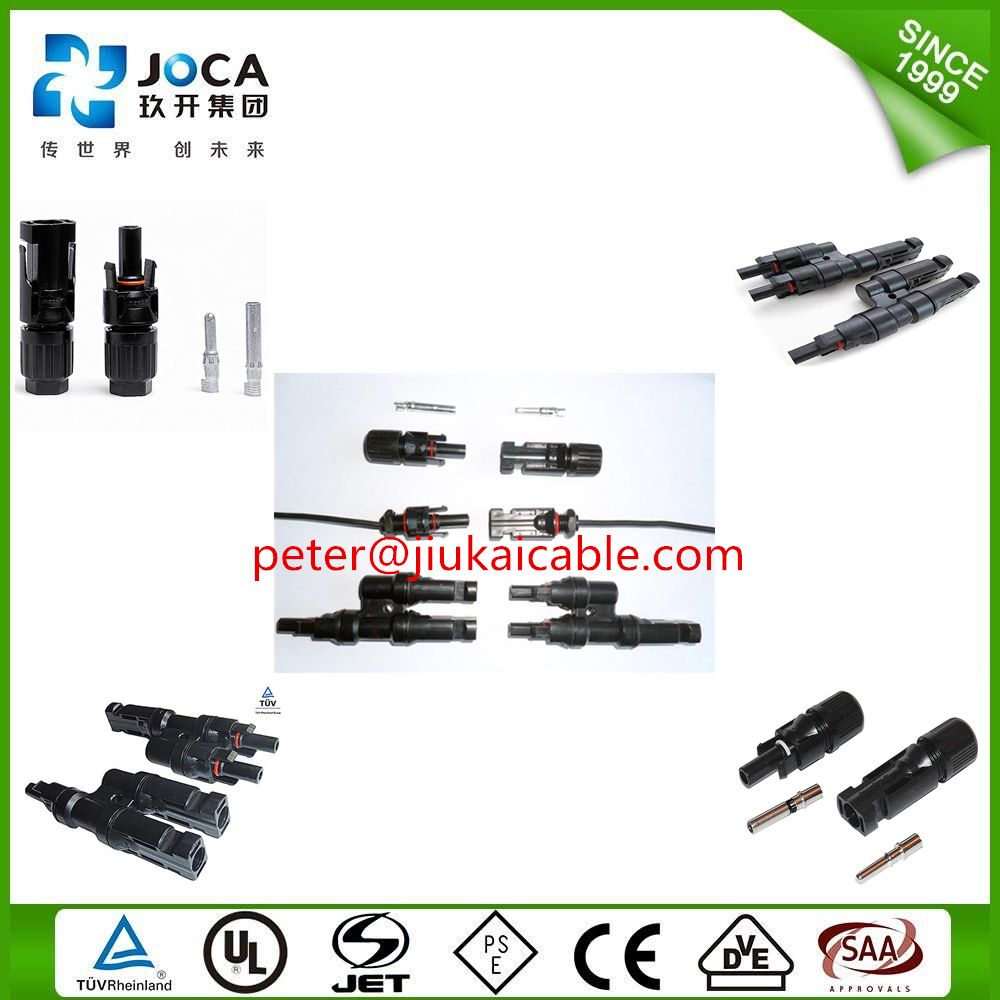

2016 New Style IP67 Solar PV MC4 Connector
Application:Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
Construction:MC4(RO-1) Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.
Technical Specification
1.Rated Voltage:1000V
2.Rated Current:22A(2.5mm2)/30A(4/6mm2)
3.Contact resistance of plug connectors: ≤5mΩ
4.Protection degree(Mated/unmated): IP67/IP2X
5.Operating Temperature: -40ºC~+85ºC
6.Insulation material: PC/PA/PPO/TPE
7.Contact material: Silver plated copper
8.Locking system: Snap in
9.Cable cross section on request: 2.5/4.0/6.0mm2
Brief-Introduction of IP67 Solar PV MC4 Connector
| Complete connector include | Male house, female house, positive and negative terminal |
| Insulation material | Polycarbonate (PC) |
| Contact material | Silver plated copper |
| Contact resistance | Less than 3 m oHm |
| Fixed form | HFW |
| Rated current | 30A |
| Rated voltage | 1500V |
| Test voltage | 6000 V (50Hz, 1Min) |
| Degree of protection | IP67/IP2X |
| Safety class | 2 |
| Flame calss | UL94-V0 |
| Insertion force | Less than 50N |
| Withdrawal force | More than 300N |
| Ambient temperature range | - 40 degree ~ + 85 degree |
| Compatible cable cross sections | MC4 2.5/4.0/6.0mm2 ; MC3 2.5/4.0mm2 |
| AWG14/12/10 |
| Suitable diameter of cable outer | 5.5-7.2mm |
| TUV certification NO. | 4478015406749-090 |
| Contact type | Crimp contact by crimping tools |
| Package | 1000 pairs /carton box. |
| Measurement | 480mm x 380mm x 350mm |
| Net weight / Gross weight | 21kg /22 Kg |
| Minimum order quantity | 500 pairs |
Advantages of IP67 Solar PV MC4 Connector
1.Simple,quick,safe and effective filed assembly
2.Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
3.High mechanical endurance
4.High current and voltage carrying:30A,1000DC.
5.Low transition resistance
6.Innovative sealed,waterproof,dust resistance design:IP67/IP2X
Approval for MC4 Solar PV Connector for Solar System
TUV,UL,CE,CCC,ISO9001,IEC,PSE,SAA&VDE etc.
Group Profile
JOCA holding group is an enterprise group,integrated research,manufacture&trade. The group has he group total capital RMB 250million&o occupied area 1800 thousand sqm including building area 1000 thousand sqm. The group has more than 800 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1.6 billion, 600 employees and nearly domestic& overseas representative offices or branch companies. Subsidiary company Shanghai Jiukai Wire&Cable Co.,Ltd, Jiukai Communication Technology(Shanghai)Co.,Ltd.&Wuxi City Qunxing Wire&Cable Co.,Ltd. are fully invested Wholly owned companies by JOCA group in cable, telecommunication&integrated general wiring industry.
We mainly produce 10 categories(thousands of kinds)cables, such as audio&video cable, elevator cable, data cables,computer cable, CAT5E LAN cable, CAT6E cable, solar PV cable, UL Wire,flexible cable and special cable.
With so many years' manufacturing experience, our cables are well sold to America, Europe,Middle-east, Southeast Asia and Africa. And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE Certificate, German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises","China Top Brand" and "China Cable Manufacturer TOP100.
Main Products
1.Solar Cable
2.IP67 MC4 Connector
3.Elevator Cable
4.TPS Cable
5.Coxial Cable
6.Flexible Power Cable 0.6/1kv
7.CE Sheathed Cable
8.UL&CE Standard Wire
Advantages
1.Large Scale Factory-Encolsed Company Information File.
2.Complete Qualified Approvals.
3.OEM, Quality is guaranteed.
4.Wire&Cable with High Quality&Competitive Price.
5.Import-Exported Operating Licence.
6.Short Dlivery Time.
Standard Package&Delivery Time
1.100pairs in one PE bag.(one pair include Positive house, Negative house, Positive teminal, Negative terminal)
2.1000pairs/carton.
3.At least one day(We have already some stocks in our warehouse.) or depends on MOQ.
Our Services
1.Jiukai sends all the items with Outgoing Quality Inspection Report.
2.The Copy of UL Certification will be sent along with the products.
3.We guarantee 100% good quality when the products are sent out of factory.
4.Jiukai ships to the Worldwide.
5.Most orders will be shipped within 7days on payment received.
6.We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most of the countries within 7days.
7.Once we shipped the products, our after-sale service will send you the tracking number.
8.If your item is not as described or faulty when you receive it, we will replace it for you with no additional charge.
9.If the item is found non-defective, the item will be sent back to the buyer at buyer's expense.
Why Choose Us
1.Many Years of experience for supplying the OEM and customized cables to many World Leader Cable Group.
2..Always Work for more profit for customer with our competitive Price .
3.TUV, UL,CCC Certificate etc has been passed .Quality Guarantee for 15years.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden pallet or wooden case. And we aslo can put your brand or LOGO on packaging after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply free sample if we have ready parts in stock.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
