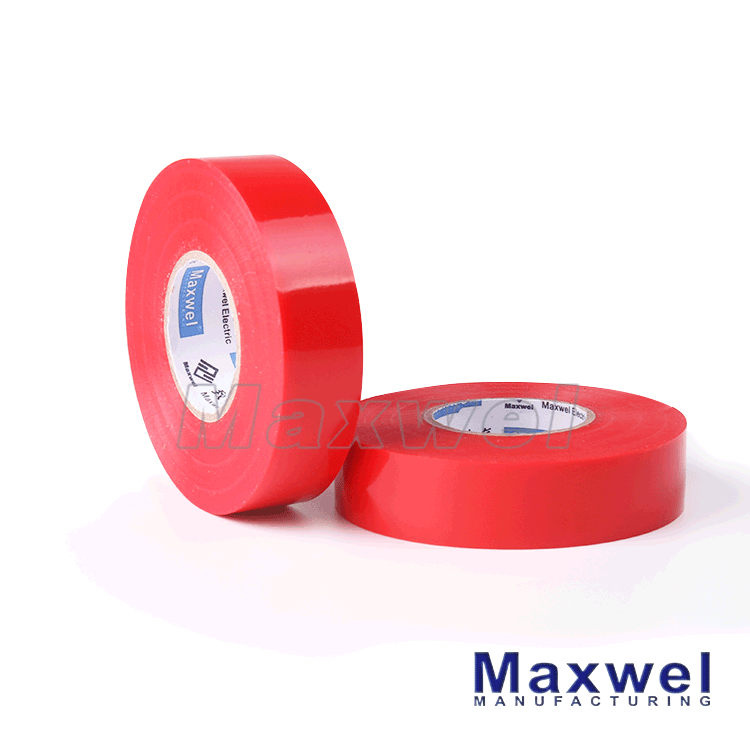

2016 Single Sided Rubber Adhesive PVC Electrical Insulation Tape

Prod Model:	180Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.10- 0.22mm
Elongation At Break:	160%-220%
Length:	6m- 33m
Paper Core Diameter:	38mm/42mm
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Plastic
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Certification:	RoHS,Reach,CE,UL
Color:	Black,Red,Yellow,Green,etc

Product Description

pvc electrical insulation tape UL Rohs pvc tape

Main Specification as following

Backing: PVC film
Adhesive: Rubber
Thickness: 0.10mm-0.22mm
Tensile strenth: 14N/cm-30N/cm
Elongation at break: 160%-220%
Adhesion: 1.5N/cm

PVC Tape Description
1. PVC Tape is composed of soft film and rubber PSA
2. PVC Tape is charaterized by excellent insulation,good flame retardant and excellent resistance to low temperature
3. PVC Tape is used for insulation protection of electrical wires and harness in automobile industry

WHY US:
10 Years history, USD9 MILLION turnover last year.
3 Coating Line, high production capacity.
Leading manufacturer, ISO 9001:2008 & UL.
Japanese Glue Water, the holding power is 30% higher than normal ones according to the lab test.
Customizing Service, semi-finished products (Jumbo roll) and finished products (small roll) can be provided.
Quick dispatch: 3 40ft containers in 20 days

We also supply:

Self amalgamating tape


Silicone rubber tape



Cotton Tape (Fabric InsulationTape)



Welcome to contact us at any time

Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (° C)	Voltage breakdown(kv/mm)	Features & application
100D	PVC	rubber	0.1	1.5	14	160	80	≥ 40	Used for wrapping electric wires and cables etc.
110D	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130D	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150D	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165D	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be up to the UL standard, used for wrapping electric wires and cables etc.
180D	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190D	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200D	PVC	rubber	0.2	1.5	30	220	80	≥ 40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥ 40	Flame retardant, used for wrapping electric wires, automotive wire harness and cables ect.
110Z	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be up to the UL standard, flame retardant, used for wrapping electric wires, automotive wires harness and cables etc.
180Z	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200Z	PVC	rubber	0.2	1.5	30	220	80	≥ 40
