| Prod Model: |
BGA rework station A3 |
| Number Of Heating Zone: |
3 Heating Zone |
| Curving Number: |
10 Group 8 Phase Welding Curve |
| Temperature Control: |
Controlled Meter |
| Computer Interface: |
Button |
| Curve Display Mode: |
Figure |
| Centi-Meter: |
24*38 |
| Total Power: |
3.8kw |
| Up Heating Power: |
800W |
| Weight(Kg): |
28 |
| Centimeter: |
61*41*69 |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-6 |
| Material: |
Paper Phenolic Copper Foil Substrate |
| Brand: |
No |
Product Description

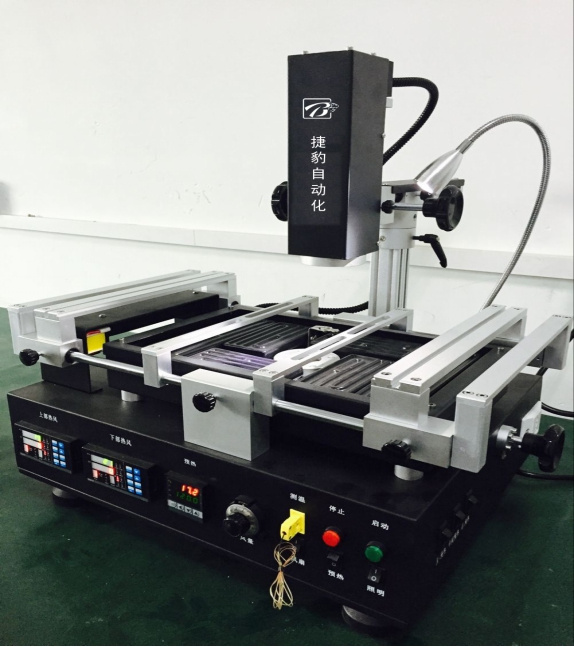

BGA rework station A3
Specification and Feature:
1.Adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability
2.Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen
3.Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3ºC.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.
4.The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly.
5.High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.
6.Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out easily.
7.Having alarm prompt function after welding is done, specially added early warning function for convenient operation.
Style
Function | A3 |
| Parameter | |
| Heating mode | Up and down hot air+ IR heating |
| Number of Heating zone | 3 heating zone |
| Curving number | 10 Group 8 Phase welding curve |
| Temperature control | PC410+temperature controlled meter |
| Human-computer interface | Button |
| Curve display mode | Figure |
| Preheat area: centi-meter | 24*38 |
| Total power | 3.8KW |
| Up heating power | 800W |
| Down heating power | 800W |
| Weight(Kg) | 28 |
| Size:Centimeter | 61*41*69 |
| Max PCB size | 440*310 |
| Min PCB size | 50*50 |
| Machine platform | Metal plate |
| FUNCTION | |
| Work light | 1 set |
| Location light | no |
| Fixture size(mm) | 610*320 |
| Vacuum pen | no |
| Bottom up and down | yes |
| Heating head working area | Front-Behind\ Left-Right\ UP-Down |
| Mix fan Blade | NO |
| Silence function | NO |
| Unattended operation | NO |
| Intelligent Cooling | NO |
| High temperature alarm | No |
| End alarm | NO |
| Partition preheating | Yes |
| Real time curve change | NO |
| Accessories and other | |
| Tuyere | 5 up tuyeres 2 down tuyeres |
| Fixture | 4 alligator clips +4 pothooks |
| Holder | External brace |
| Package | Wooden case |
Our Services
1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment
failure, the supplier in the receipt of the notification, the maintenance
personnel in one hour to respone.
4, service principle: product warranty period of 12 months, in the guarantee
period the supplier will free maintenance and replacement of quality caused by
he damaged parts.
