| Prod Model: |
DBW/SBW 30K-300KVA |
| Warranty: |
2 Years |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SBW |
| Frequency: |
50Hz/60Hz |
| Brand: |
Honle |
Product Description

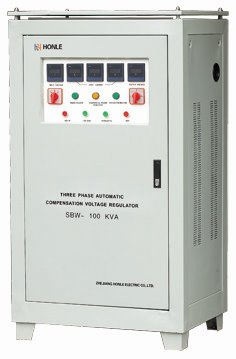

Product DescriptionDBW/SBW Series Large Power Full Automatic Compensated Voltage Stabilizer
GENERAL 1.DBW/SBW series large power voltage stabilizer is an energy-saving new product developed by our company absorbing the advanced technology of international same product.
2.This products possess the functions of over/under-voltage protection,delay and error protection.
3.It has advantages of small volume,light weight,large capacity,high efficiency,wide range,high precision,strong protection,without wave-form distortion,reliable operation and easy installation,etc.
APPLICATION
Widely used in the fields of post office,store,elevator,hospital,school,publishing house and stock exchange where normal voltage is in need.
And also can be used in the factories of large and middle-scale industrial and mining corp.It is very much suitable for some important devices and supporting single machine.
Technical Index
| SBW | 30KVA/50K/80K/100K/120K/150K/180K/200K/225K/300K/500K/800K/1000K/1500K |
| DBW | 30KVA40K/50K/60K/70K/80K/100K |
| Input voltage | Three phase four line system phase voltage:220±20% line voltage:380V±20% or phase voltage:220±30% line voltage:380V±30%(can be selected:Please specify when ordering.) Single phase:220V±20% or 220V±30% (can be selected:Please specify when ordering.) |
| Output voltage | Phase voltage:220V Single phase:220V Line voltage:380V |
| Output voltage accuracy | 2-5%(can be adjusted)Frequency:50Hz/60Hz |
| Efficiency | ≥98%(Power grade is over 50KVA) |
| Ambient temperature | -10ºC~±40ºC |
| Insulation resistance | ≥2MΩ |
| Electric intensity | The voltage for electrical strength and power frequency sinusoidal is 2000V without breakdown and flash over when lasts 1 minute |
| Overload capacity | It can last 1 minute at the rated current of two times |
| Wave form distortion | No additional waveform distortion |
| Protective function | It offers the protections against over voltage,over current,phase shortage and phase-sequence(the single-phase offers no protection against the phase shortage and phase sequence)and mechanical failure |
| Response speed | ≤1.5S(in the condition that the ecternal voltage changes is 10%) |
ABOUT OUR COMPANY
a).HONLE Electronic co.,Ltd is specified in producing Single phase and three phase voltage stabilizers, voltage regulator, distribution transformers, low-voltage switch gear assembly,complete plant equipment
b)Passed the ISO9001 quality management system certification
c).HONLE insist on the quality of survival ,innovation and development all the time , try our best to be winner to give you the competitive product .
Our service :
a)Quick response to your inquiry
b)best quality with reasonable price
c)long warranty ensure you buy with no hesitation
FAQ:
Q1.WHY CHOOSE US
A--Best quality with reasonable price .You will realize the answer when you compare ours product with others
Q 2. what's the payment term?
A --We usually accept TT, 30% deposit and 70% balance against copy of B/L.We also accept L/C considering the first cooperation between us.
Q 3. how's the delivery time ?
A --Usually it will take about 25 days for production.
Q 3. tell me the standard of package?
A --For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q4. what kind of certificate you have ?
A. Our company already achieve ISO, CCC, and for products, we have CE
Q5.How long is your product warranty
A.2 years warranty after manufacturing date
More question?
PLEASE FEEL FREE TO CONTACT US YOU CAN GET OUR IMMEDIATE REPLY
Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.

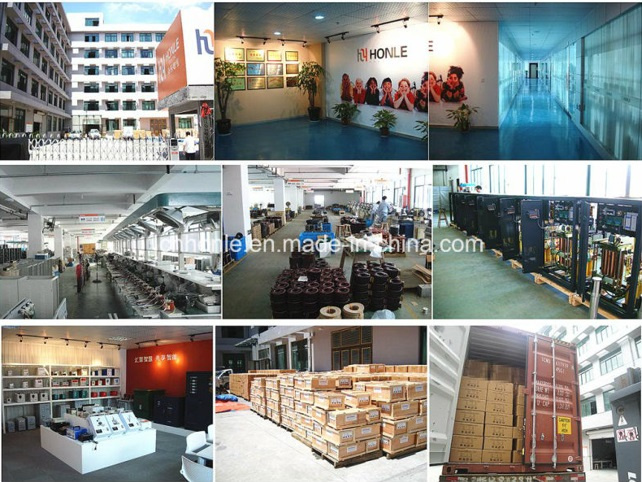

Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.
The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
