Prod Model: |
M558 |
GSM Module: |
Quectel M26 |
GSM Frequency: |
850/900/1800/1900 MHz |
GPS Chipset: |
U-Blox 7020 |
Warranty: |
12 Months |
Tracking Software: |
Free Websited Based Platform and Mobile APP |
Accuracy: |
5 Meters |
Server: |
Cloud Server |
Weight: |
0.2kg |
Work Voltage: |
7VDC-100VDC |
Products Name: |
GPS Vehicle Tracker |
Type: |
GPS Tracker |
Use: |
Automotive |
Operating Principle: |
Interferometric Type |
Port Number: |
Multiplex Multi-purpose Channel |
Carrier Frequency: |
Dual-Frequency |
Model: |
GSM/GPS /GPRS |
Screen Size: |
No Screen |
Chip: |
U-Blox 7020 |
Brand: |
Myrope |
Certification: |
Ce ; RoHS ; FCC |
Product Description

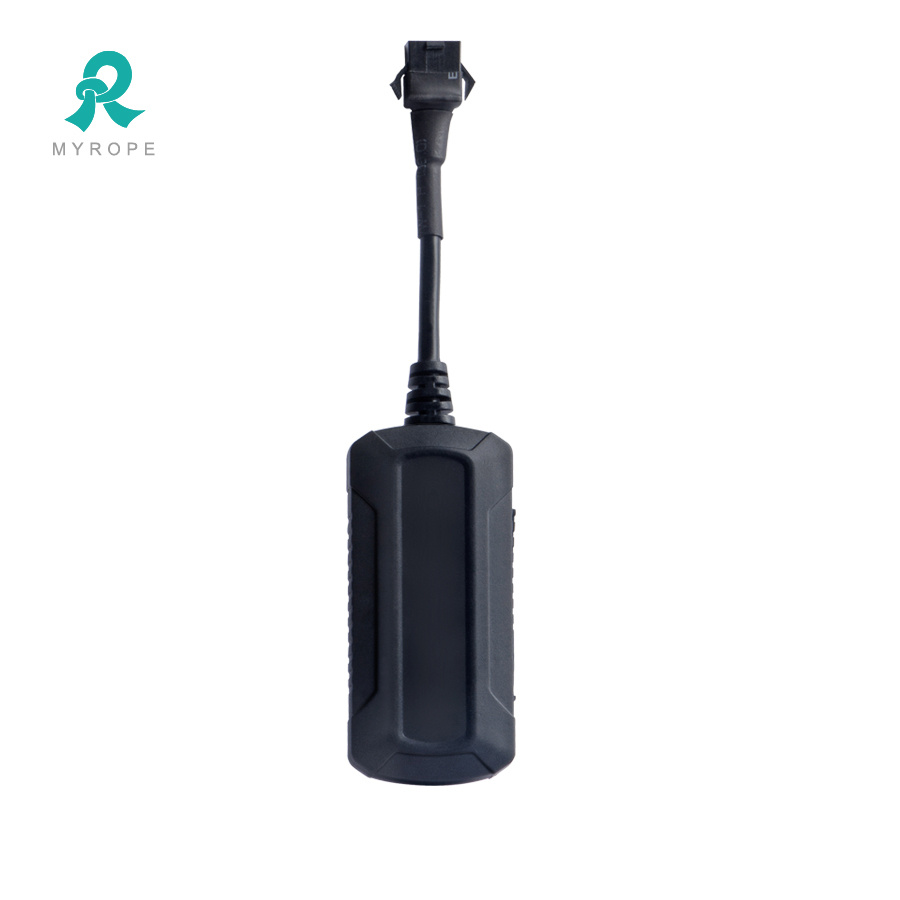

2017 high quality free tracking platform car gps vehicle tracker M558
1. Functions
Smallest size, as small as USB dongle | Parking alarm; |
Built-in antenna; | Tired driving alarm; |
Track by SMS or GPRS; | History playback; |
Real time tracking at intervals; | Mileage statistics; |
Resend data from signal dead zone; | Reports statistics; |
Low power alarm; | Remotely update firmware. |
Overspeed alarm; | |
Geo-fence alarm; | |
work voltage | 8VDC~100VDC |
work current | 50mA~160mA |
GSM module | Four Band: GSM 850/900/1800/1900Mhz Quectel M26 |
Communication protocol | UDP/TCP(can be customized) |
GPS module | Ublox chipset |
GPS sensitivity | -159dBm |
GPS frequency | L1, 1575.42 MHz |
C/A coding | 1.023 MHz chip rate |
Channels | 20 channels examine track |
Position accuracy | 10 meter, 2D RMS |
Speed accuracy | 0.1 meter/second |
Tine accuracy | GPS time synchronization |
Default data | WGS-84 |
Recover | Average 0.1 second |
Hot start | Average 1 second |
Warm boot | Average 38 second |
Cold boot | Average 42 second |
Height limit | 18,000 meter (60,000 feet) max |
Speed limit | 515 kilometer/second (1000 knots)max |
Acceleration limit | Less than 4g |
Work temperature | -20°~ 70° C |
Storage temperature | -30°~ 85° C |
Humidity | 5% ~ 95% noncondensing |
Terminal size | 55mm × 28mm × 12mm |
Inside battery | Continuous working no less than 4 hours |

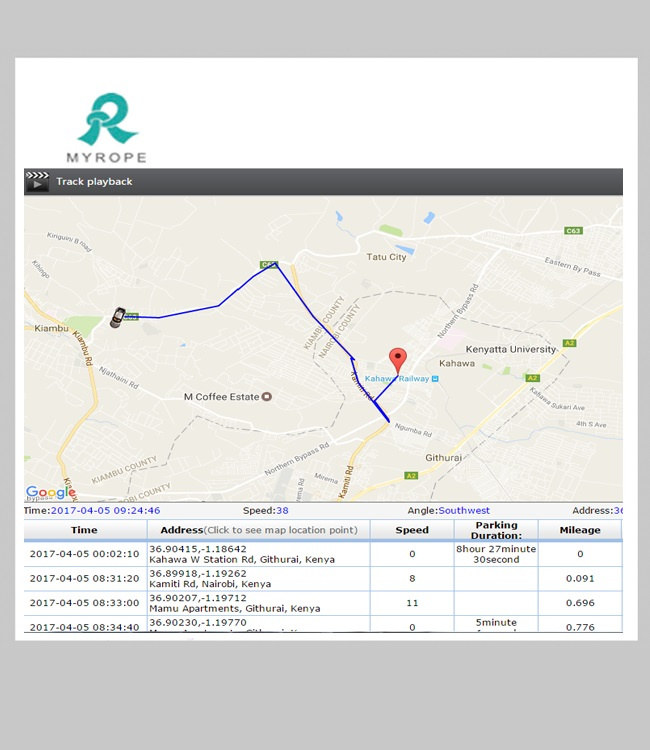

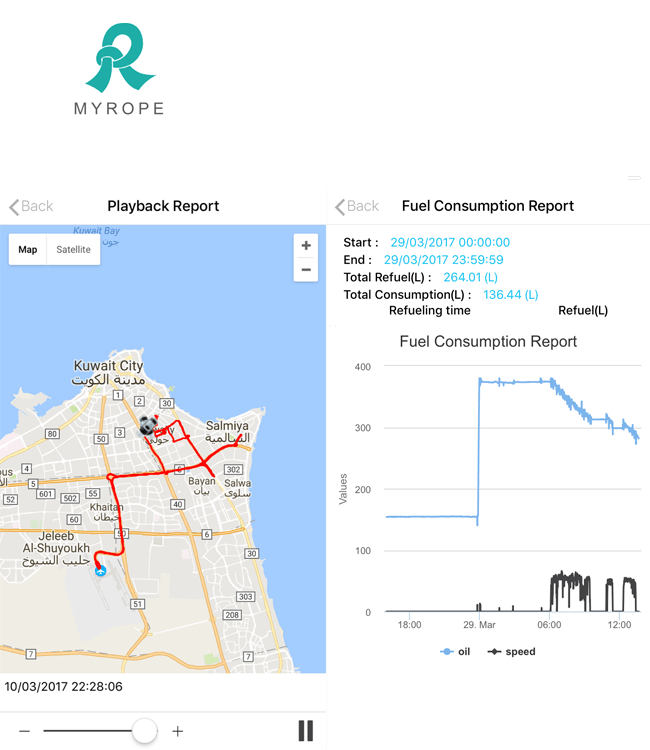

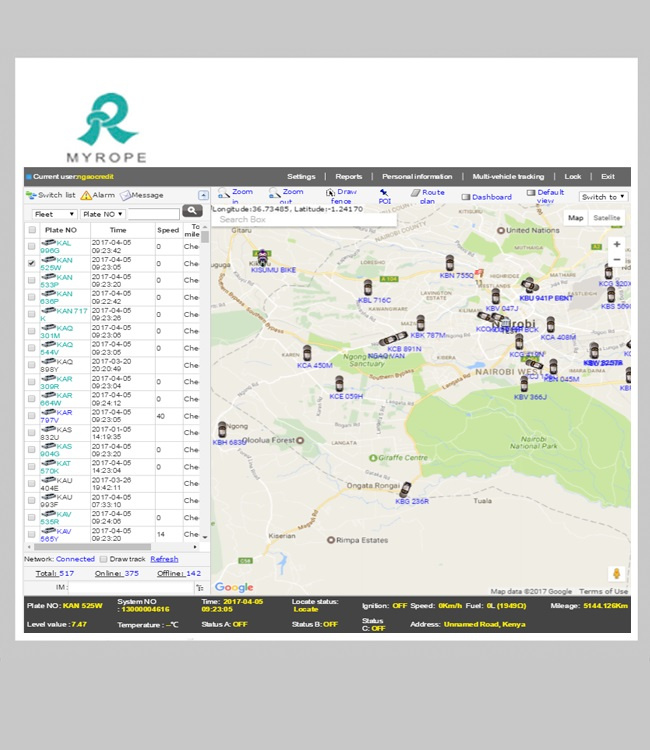

3. Web Platform & APP
1. Stable and fast response.
2. It can support more than 10000 units tracker .
3. Can track in real time.
4. Remote control the vehicle by changing the settings.
5. With full function like take photo, POI, Geo-fence, check alert message and etc.
6. We can customize the software as your requirements
7. Our software support 18 languages: Chinese, English, Russian, Spanish, Portuguese, Norwegian, Vietnamese, Arabic, Polish, Sinhala, Tamil, farsi, Danish, Serbian, Turkish, greek language, Georgian, Hrvatski.
8. Easy to manage.
9. Support many kinds of reports.
10. PC-based, Web-based and smart-phone based APP .

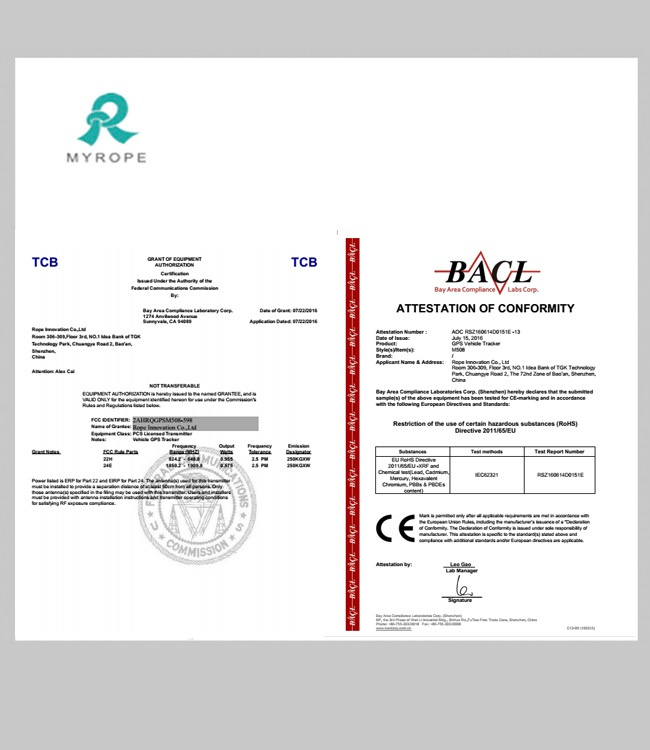

4. Certifications
Focusing on products that are truly superior and innovative, Rope has been awarded China National Hi-tech Enterprise and ISO9001 Quality Certification, Rope's products have passed the international certification SGS,Design Patent, CE, FCC,Rohs and grown to become one of the largest manufacturers and exporters of GPS tracking products in China.

5. Company Information

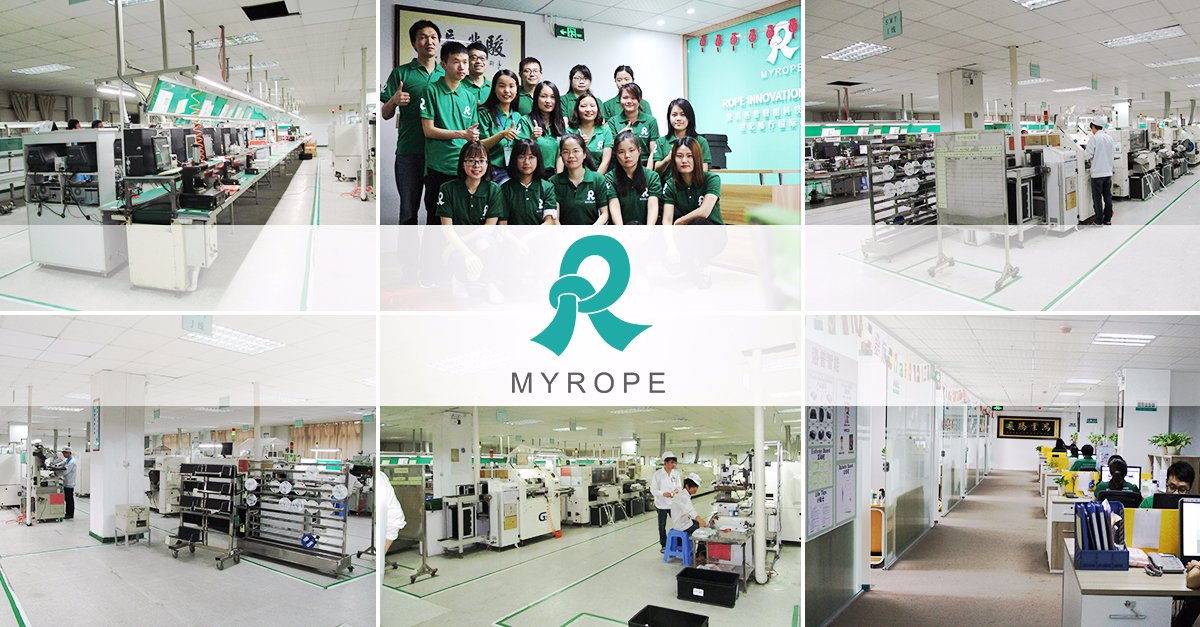

Rope based in Shenzhen, China with Two huge square meters state-of-the-art modern factory, Rope is dedicated R&D team has over 11 years of experience in design, prototyping, integration and testing products that are high quality and truly innovative, and satisfying buyers from more than 100 countries.
There are over 30 agents in Asia , Africa , Middle East ,Europe ,North America ,South America Office,India Office.
6. Our Services
1. Free maintain software 7/24 hours . One To One After-Service
2. OEM/ODM included -
1). Logo Design,
2). Color Boxes Production,
3). Manual DIY,
4). Software System Customization,
5). Accessory Customization,
6). DIY Clients Equipment Requirement
Please leave a message below, we will reply to you later .
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.
Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.
With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.
We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
