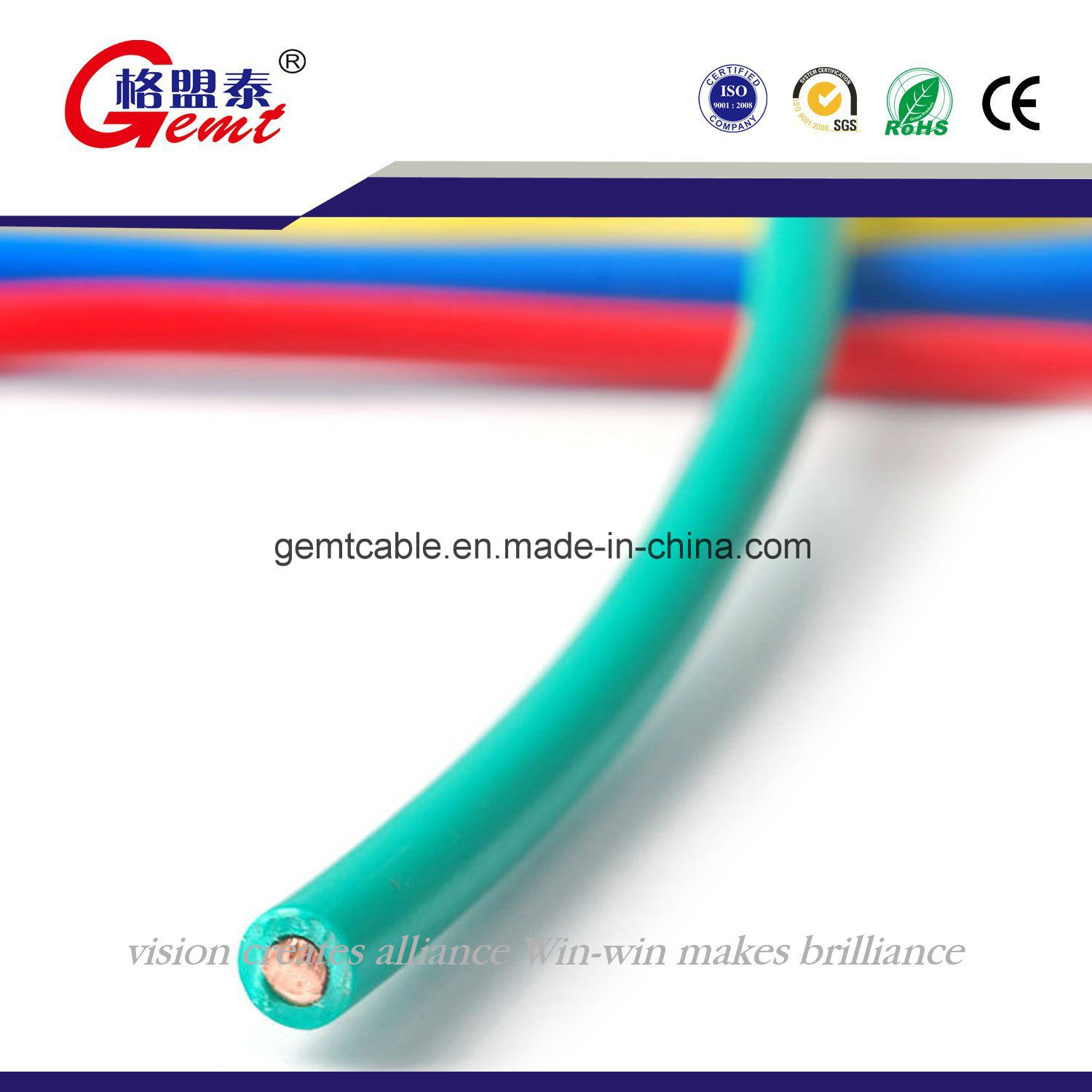

2017 High Quality Security BV Cable

Name: 2017 High Quality Security BV Cable
Brand: all-electronics-online.com
SKU: 807785825
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 0.15-0.2/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV11
Color:	Black,White,Red,Blue,Yellow etc
Sizes:	Customized
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PE
Certification:	RoHS
Brand:	Gemt

Product Description

2017 High Quality Security BV Cable

1. Product Description:
SYWV(Y)type physically foamed

PE insulated community antenna television system cable

use:for community antenna television system(including fiber distributed data interface coaxial commix net HFC),transmit data,voice,and image signal.

Operation characteristic:small attenuation,good structure equlity,Anti-jamming excellent performance,Tide ability,Small temperature coefficient.

2. Detailed Specification:

BS6004 IEC227
MM² Normal area	MM Structure	MM Thickness of insulation	MM App.overall dia
1.0mm²	1x1.13	0.60	2.50
1.5mm²	1x1.38	0.80	3.00
1.5mm²	7x0.52	0.80	3.20
2.5mm²	1x1.78	0.80	3.40
2.5mm²	7x0.68	0.80	3.60
4.0mm²	1x2.25	0.90	4.00
4.0mm²	7x0.85	0.90	4.20
6.0mm²	1x2.76	0.90	5.00
6.0mm²	7x1.04	0.90	5.00
10mm²	7x1.35	1.00	5.80
16mm²	7x1.70	1.00	6.60
25mm²	7x2.14	1.20	10.00
35mm²	7x2.52	1.20	10.00
50mm²	19x1.78	1.40	11.90
70mm²	19x2.14	1.40	13.70

3. Technical Sheet:
Application: Used for general purpose, as building wire for power, lighting and control wire. They can be fixed into truck and conduit.
Standard: IEC227/BS6004
Structure: Solid Pure copper or CCA
Rated Voltage: 300/500V, 450/750V
Insulator: Polyvinyl Chloride (PVC) Rated 70oC
Color: White, Black, Yellow, Red, Blue, Yellow/Green, etc

4. Why Choose Us(GEMT):
G--Guaranteed quality
   E--Effective service
   M--Mutual benefit
   T--Top technique
   GEMT Cable, Friend Reliable

WARMLY WELCOME TO VISIT TO OUR FACTORY AND SHOWROOM , AND KNOW MORE ABOUT US ~~~~

PLS FEEL FREE TO

CONTACT ME : VERA ZHUANG
TEL:+86-13415529380

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
