| Prod Model: |
S11 |
| Capacity: |
30 to 2500kVA |
| Input Voltage: |
20kv |
| Output Voltage: |
0.4kv, 0.38kv, 0.44kv |
| Connection Group Symbol: |
Dyn11 |
| Impedance Voltage: |
4%, 4.5%, 5% |
| Rated Voltage: |
20kv |
| Frequency: |
50Hz or 60Hz Optinal |
| Color: |
Grey B05 or Optional |
| Hv Tapping Ranges: |
5% or 2*2.5% |
| Product Name: |
Hot Sale 20kv Three Phase Distribution Transformer |
| Application: |
Lighting |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description

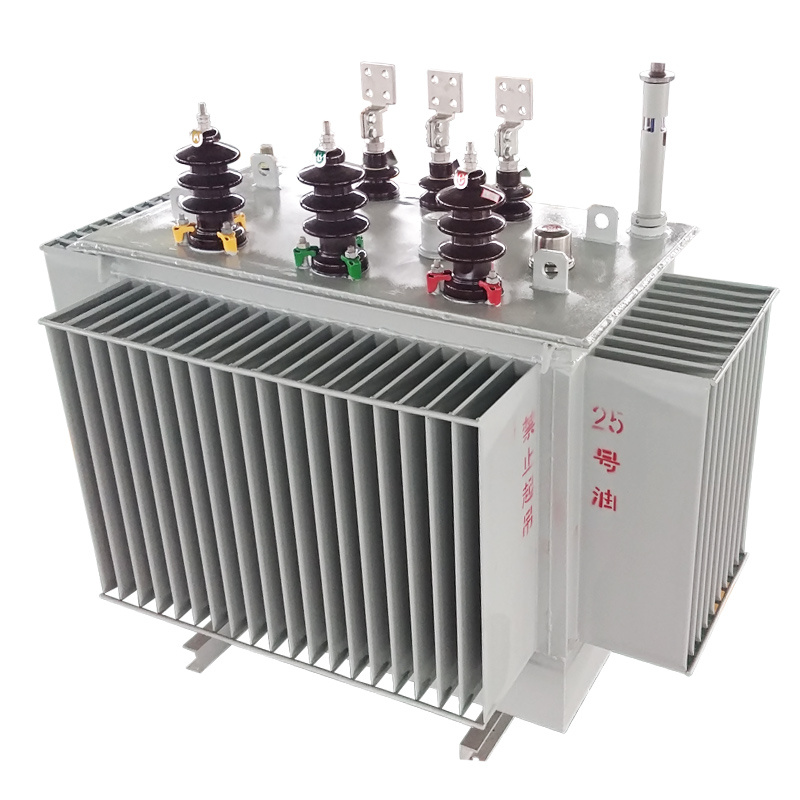

2017 Hot Sale 20kv Three Phase Distribution Transformer
Product introductionS11 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.Advantages 1.Good Economic Performance
Based on S9 series, the no-load loss for S11 series products decreased averagely 10.3%, no-load current decreased 22.4%.
2.Long Service Life
Transformer tank adopts fully sealed structure, fuel tank and tank rim can be connected by bolts or welded firmly, the transformer oil doesn't contact with the air, extending the service life.
3.High Operational Reliability
Improve the relevant sealing parts for the fuel tank, increase the reliability and advance the technical level to ensure the reliability of the seal.Technical Parameter of S11 series oil immersed transformerRated capacity
(KVA) | Voltage Combination | Connection Group Symbol | No-load Loss(W) | Load Loss (W)75ºC | No-load Current (%) |
Short-circuit Impedance(%) |
| High Voltage (KV) | Tapping ranges of High Voltage | Low Voltage(KV) |
| 30 |
20 |
±5%
±2×2.5% |
0.4 |
Dyn11
| 90 | 660 | 2.1 |
5.5 |
| 50 | 130 | 960 | 2.0 |
| 63 | 150 | 1145 | 1.9 |
| 80 | 180 | 1370 | 1.8 |
| 100 | 200 | 1650 | 1.6 |
| 125 | 240 | 1980 | 1.5 |
| 160 | 290 | 2420 | 1.4 |
| 200 | 330 | 2860 | 1.3 |
| 250 | 400 | 3350 | 1.2 |
| 315 | 480 | 4010 | 1.1 |
| 400 | 570 | 4730 | 1.0 |
| 500 | 680 | 5660 | 1.0 |
| 630 | 810 | 6820 | 0.9 |
6.0 |
| 800 | 980 | 8250 | 0.8 |
| 1000 | 1150 | 11330 | 0.7 |
| 1250 | 1350 | 13200 | 0.7 |
| 1600 | 1630 | 15950 | 0.6 |
| 2000 | 1950 | 19140 | 0.6 |
| 2500 | 2340 | 22220 | 0.5 |
Why Choose US?
1.Leading manufacture of various transformer and special transformer since 2008.
2.Meet the standard of ISO9001-2015 international standard.
3.With great R&D team to meet any international requirements.
4.With hundreds of engineering case apply in power plants, chemicals, construction, mining, metallurgy, rail transportation and so on.

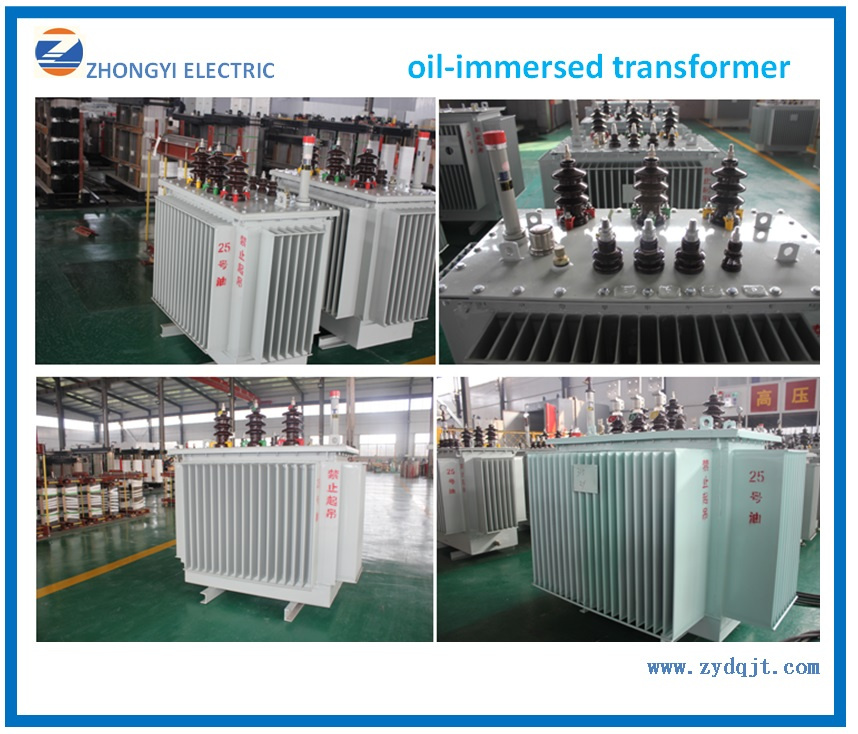

Details images:
Certifications
Packagind&shipping
Packing&shipping
Packing:
1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.
4. Iron shelf
5. Special packaging: According to customer's requirement
Delivery Details :
10-20 days according to order quantities
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to the quantity.
Q: What about the OEM
A: Yes, OEM is accepted.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
