| Prod Model: |
GPS103B |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC ISO |
| Weight: |
120 |
| Shipment: |
DHL, UPS, EMS etc |
| Delivery Time: |
1-3 Working Days |
| Network: |
GSM/GPRS |
| Tracking System: |
SMS, APP, Web Server |
| Feature: |
Car GPS |
| OEM: |
Yes |
| Waterproof: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
103A |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
2017 new arrival gps gsm chip car gps tracker tk103b with fuel sensor/sos panic button
Product Description
This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Function
1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS
15, Door, windows alarm get by SMS
16, Movement alert sensor
17, Free GPRS tracking software send you in CD package
18. With direction and heading value
19. Optional shock/impact sensor
20. Abosolute street function
21. Smart track upon time and distance interval
22. Automatic update positions of vehicle turns
23. GPS drift suppression
24. Data logging
25. Forward third parties message to authorized phone number
26. charge inquiry
27. Multi area management
28. Accident alarm(Option)
29. ACC working alarm
30. Configure parameters by USB
31. Less GPRS traffic
32. GPS blind spot alarm
33. Fuel sensor(option)
34. Sleep mode fuction
Specification | Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable changeable 3.7V 350mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
| | |
Applying directions: car / vehicles / truck / fleet / asset management How to tracking ? The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP

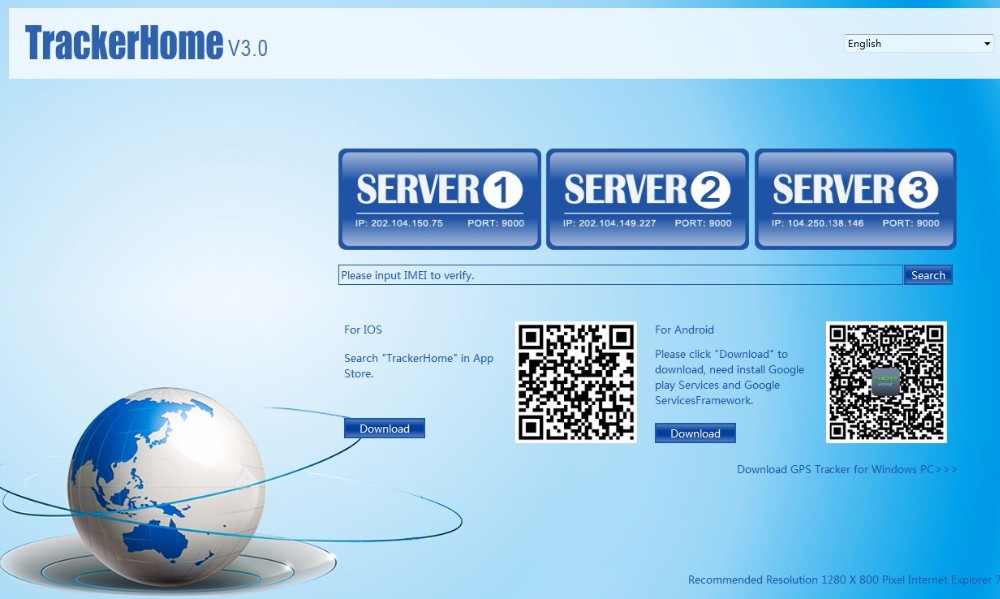

Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888
IOS Android APP on phone tracking

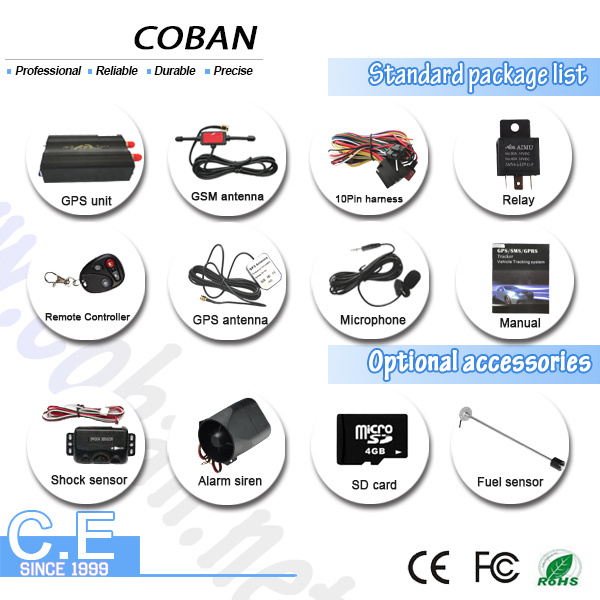

Standard pakage GPS Unit
Remote controller(one)
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
manual | package
Optional accessories
One more remote controller
Shock sensor
alarm siren
Microsd memory card
Fuel sensor
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
OEM&ODM Service1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
3. All products have been well packed before shipping.
