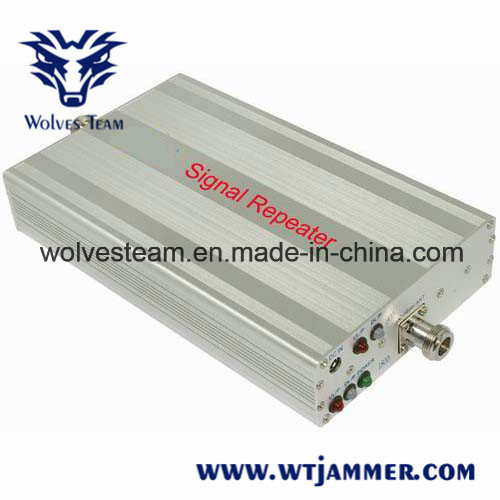

2017 New Product ABS-15-1c1p CDMA/PCS Dual Signal Repeater/Amplifier/Booster

Name: 2017 New Product ABS-15-1c1p CDMA/PCS Dual Signal Repeater/Amplifier/Booster
Brand: all-electronics-online.com
SKU: 833824685
Availability: InStock
Rating: 4.8 (133 reviews)

Price:	US $ 300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ABS-15-1C1P
Coverage Area:	800 M2
Power Supply;:	AC110240V 4555Hz
Packing:	Neutral Packing
Type:	Indoor
Jammer Frequency:	CDMA/PCS Dual Signal
Signal Jammer For:	Repeater/Amplifier/Booster

Product Description

Product Description
The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor magnetism environments, protract cellular battery life and reduce radiation of cellphones.

Features
High gain, easy installation and operation.
Full-duplex, single-port design, build-in power supply.
Use ALC technology, adjust extent automatically
LED Light Working & Signal Condition Indicators
Big linear power, control intermodulation & saturation stably
Dependability stand by GB6993-86 standard
Compatibility of electromagnetism according with ETS300 609-4
CE and RoHs Approved

Technique

Frequency range	824-849/1850-910 869-894/1930-990
Gain ( dB)	Uplink Gp≥55 Downlink Gp≥60
Export power (Po)	≥15dBm
Pass band ripple	≤3dB
I/O impedance	50Ω/N connector
Noise figure	≤4dB
Transmission Delay	≤0.5μs
Ambient temperature	-10??span>60??span>
Power supply	AC110240V 4555Hz
Size	204×120×37mm
Reliability	To the GB6993-86 standard
Electromagnetic compatibility	To the ETS300 694-4 standard
Function	a) Power supply LED denote b) Export power LED denote
coverage area	800 m2

Installation Approaches

Fix up outdoor antenna reception on housetop and point to signal tower.
Connect outdoor antenna to "outdoor" port in repeater machine through cable.
Connect indoor antenna(s) to "indoor" port in repeater machine through cable also.
Plug power adaptor into AC power socket and finish installation.

Technique Supporting

If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
If cannot call out, please adjust the direction of outdoor antenna.
If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antennas have distance of 20

Accessories
Selection Outdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.
Packing list
Main unit 1pc
Power supply 1pc
User manual 1pc

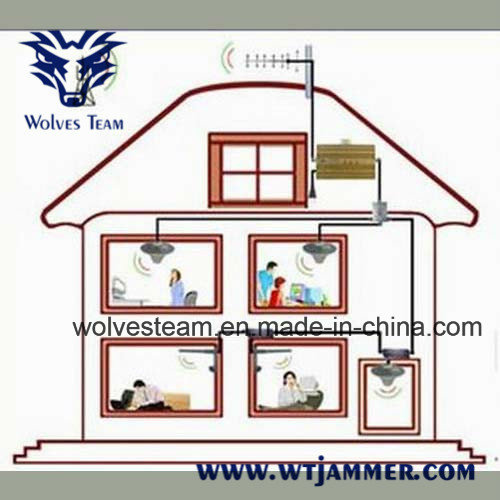

SpecificationsInstallation Sketch Map
