| Prod Model: |
DSC15073001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
0.81 Bc/CCS |
| Insulation: |
3.66 Mm Solid/ Foam PE |
| Braiding: |
CCA/Bc/Al-Mg Wire |
| Shield: |
Al/Cu Foil |
| Jacket: |
PVC |
| Function: |
CCTV/CATV System |
| Certificate: |
CE/RoHS/ISO9001/SGS |
| Key Words: |
Rg59 |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
CCC |
| Type: |
Coaxial Cable |
| Wire Core Material: |
CCS/Bc |
| Model: |
Rg59 |
| Brand: |
OEM or Dongsheng |
Product Description
2015 new rg59 coaxial cable price Suitable for television, CATV, cable moderns and radio communication. Customized specifications are available.
Reference standard:MIL-C-17G Black
Type of coaxial cable: RG 59 TYPE/BU RoHS compliance
RG59 cctv cable good quality
1):cctv cable for CCTV Camera
2):cctv cable Brand OEM
3):cctv cable RG59 plus power cable
Note:
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double non-bonded Al-foil
3) Braiding wire:Al,BC,,TC,CCA,CCS
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm
5) Braiding net:32,48,64,72,80,96,120,128,144 and more
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL
Constructure and Specifications-RG59
| Component | Diameter | Material |
| Inner Conductor | 0.81(mm) | BC/CCS |
| Dielectric | 3.77(mm) | Solid/Foamed PE |
| First Shield (Al Foil Shield) | | Bonded/Al Foil |
| Second Shield (Braiding Shield) | 96/112/128*0.12(mm) | TC/BC/CCA/AL wires |
| Jacket | 6.0(mm) | PVC |
| power cable | 30*0.15mm/16*0.2mm | BC/CCA |
| Dielectric | 1.8mm | Red & Black PE |
| Jacket | 4.5mm | PVC |
Electrical Characteristics-RG59
| Impedance(Ohms) | 75+3 |
| Nomial Capacitcance(pF/m) | 67 |
| Velocity of Propagation | 82% |
| Minimum Return Loss(dB) | 1-1000Mhz 23 1000-2250Mhz 20 |
Attenuation[ @68°F]
| Frequency (Mhz) | Maximum(dB/100M) |
| 10 | 2.5 |
| 50 | 5.0 |
| 100 | 7.3 |
| 200 | 9.6 |
| 400 | 14.3 |
| 700 | 19.1 |
| 900 | 22.0 |
| 1000 | 24.0 |
| MOQ | 50KM |
| Payment | 30% deposit in advance. the balance before shipping |
| Delivery time | with in 15 days when we got the deposit |
| Certificate | CE/RoHS
|
Products photos-RG59

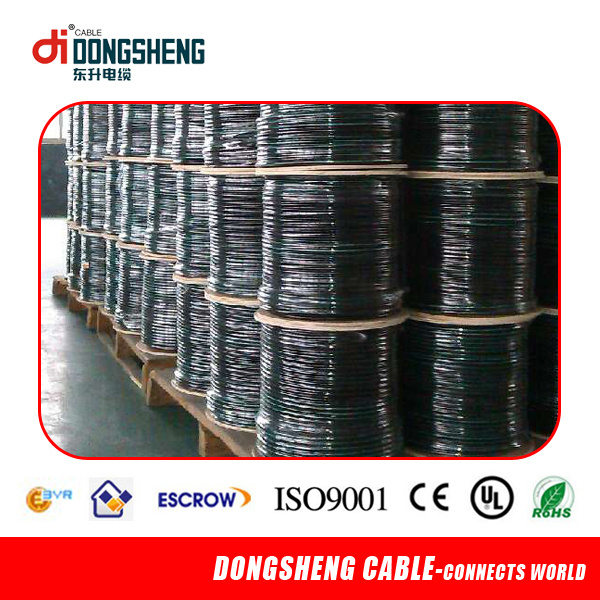

Package-RG59
1) Packing Lengths: 100m/roll, 305m/roll,1000m/drum,Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel available.
3) Outer packing: Cardboard box, pallet customers'request available.
4) Other packing available according to client's request
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
