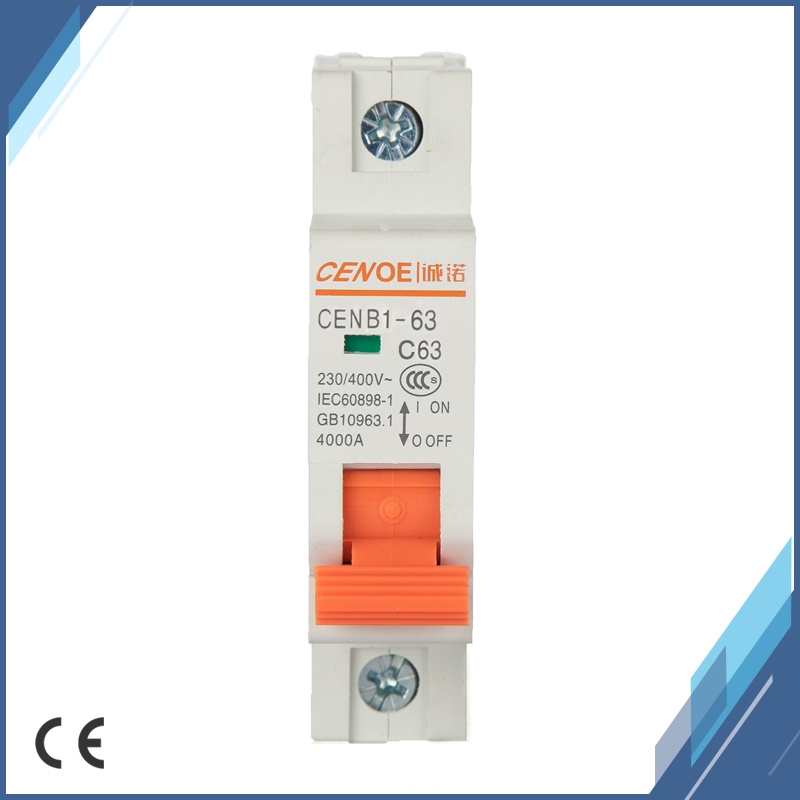

2017 New Style 1p 63A 240V Circuit Breaker
| Price: |
US $ 0.3-1/Piece |
| Min Order: |
6/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| The Style: |
New Style 2017 |
| Warranty: |
Beyond 2 Years |
| Inner Package Size: |
43*24*24cm |
| Unit Weight: |
0.075kg |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
CCC |
Product Description
Zhejiang CENOE electric co., LTD. Is one of the professional enterprises collection of manufacturing, sales and researcherSo far, the 16 big series more than 600 kinds of specifications has been development and manufactured .The mainly products include small circuit breaker, molded case circuit breaker, leakage circuit breaker, modular socket ,residual current circuit breaker, intelligent universal type circuit breaker, control and protection switch, dual power automatic transfer switch, etc. The company introduces the advanced production equipment and perfect testing facilities, set up a technology research center and development team, And has passed ISO9001 quality system certification, the European Union CE certification and national compulsory CCC certification, the company also owns four national patent certificate, all products are quality of contractor shall be conducted by the people's insurance company of China.Part of the product performance has reached the international leading level, products are exported to Europe, America, Middle East and other countries and regions. CENOE in global markets, will follow a win-win concept and hand in hand with you, innovation value, achievement industry mode
the products descreption
CENB1-63 high breaking
small leakage circuit breaker has the advanced structure, reliable performance, high breaking capacity, beautiful small shape, the shell made of high impact resistance and flame retardant materials and components. it is Suitable for the place with ac 50/60 hz, rated voltage 415 v and below, rated current 63AMainly used in office buildings, residential and similar building, lighting, power distribution lines and equipment for overload or short circuit protection, it can also be in normal circumstances, for the use of lines do not frequent transformationThis product meets the requirement of IEC60898 and GB10963 standard.

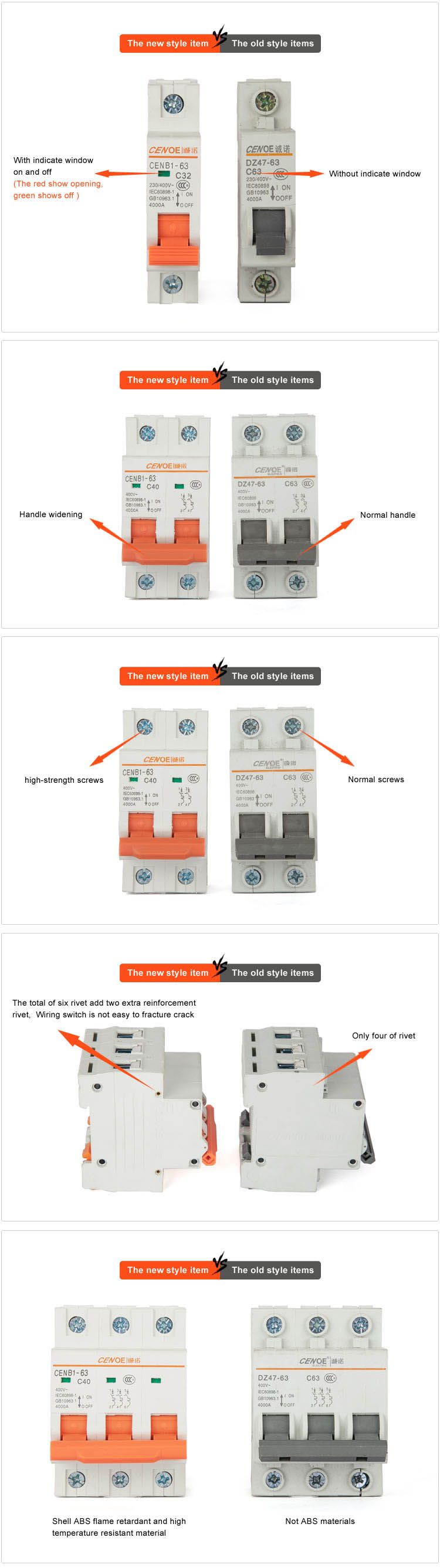

the new and old products comparison chart:
| Crust grade rating current Imm(A) | Pole | Rating voltage(V) | Rating current In(A) | Rated limit short circuit capability | Instantaneous trip type |
| | | | | Breaking current Icu(A) | Time (ms) | |
| 63A | 1 | AC(240V) | 16,20 ,25 32 ,63 | 10000 | 10 | B. C. D |

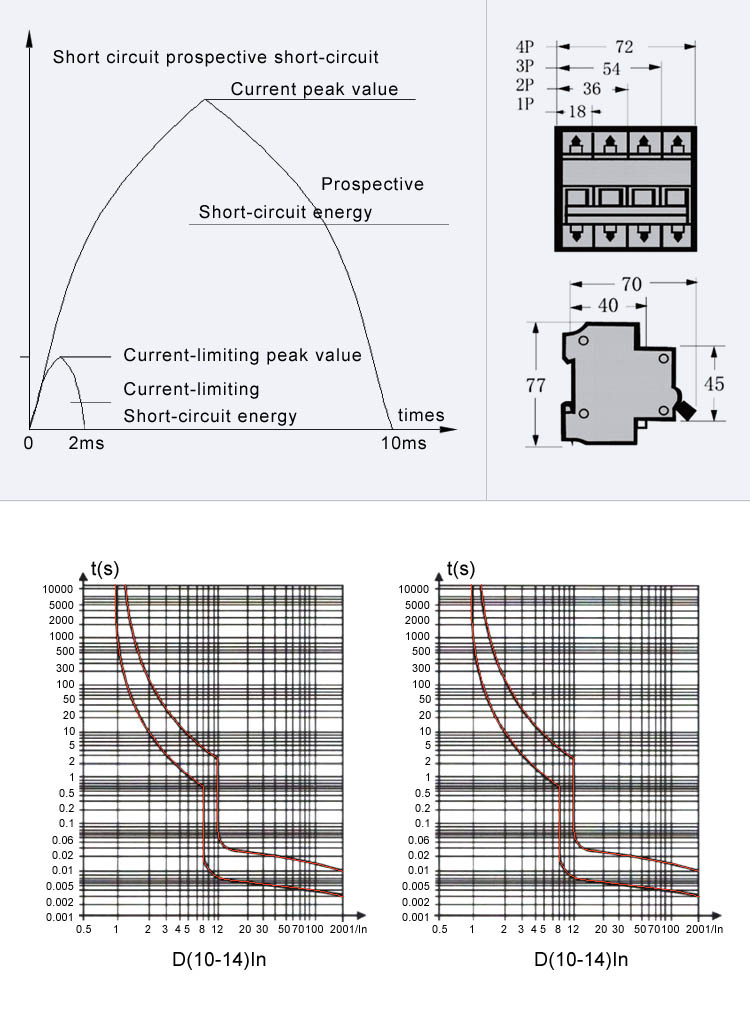

| Tripping action Characteristic | delay | 1.13In≥1h no tripping |
| 1.45In<1h tripping |
| 2.55In.1-60s tripping |
| instantaneous | 5In≥0.1s no tripping |
| 10In<0.1s tripping |
| | | | | |
| Protective properties | | | |
| Protective properties rated temperature | 30ºC | | |
| rated voltage | 240V/415 AC | | |
| rated current CENB1-63( C ) | (1,2,3,4,5)6,10,16,20,25,32,40,50,63A | | |
| CENB1-63(D) | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A | | |
| Electrical life | Not less than 6000 times | | |
| Mechanical life | Not less than20000 times | | |
| Warm test | | 2 class (temperature at 55 ºC, relative humidity 95%) | | |
| | 1P | 2P | 3P | 4P |
| weight(g) | 102 | 208 | 308 | 408 |
| | | | | |
| :(1,2,3,4,5)not recommended specifications | |
| | |
China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.
Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.
Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.
We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.
We hope our high quality products and service will be bringing successful future to all our customers.
