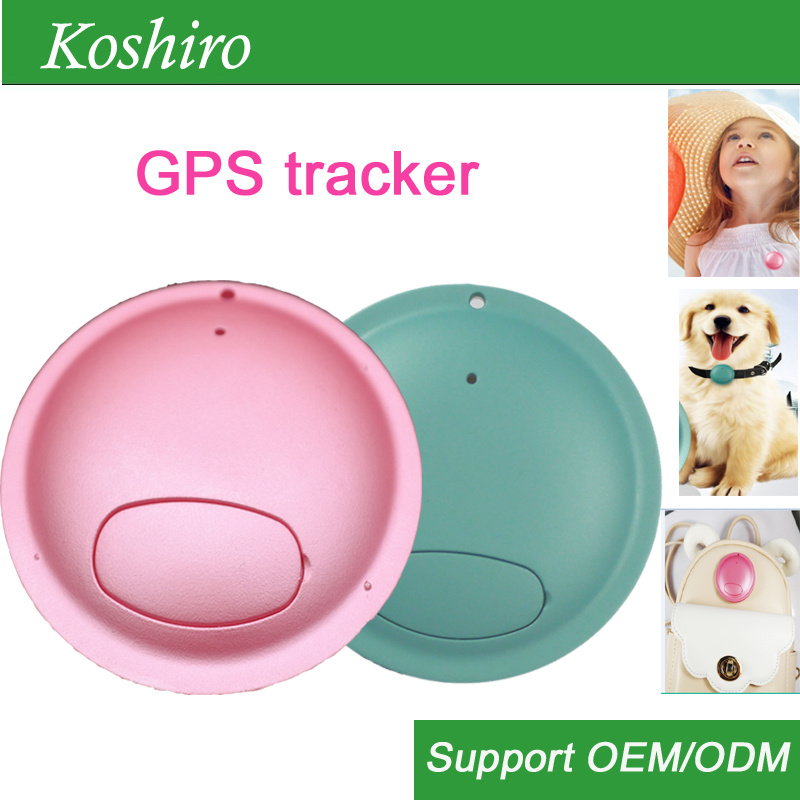

2017 New Waterproof Mini GPS Tracker
| Price: |
US $ 22-28/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
KG008 |
| Battery: |
400mAh |
| Whole Machine Size: |
6cm*4.5cm*0.7cm |
| GPS Channel Number: |
: 22 Channels |
| G-Sensor: |
Support |
| GPRS: |
Class12 |
| Support Agps: |
Cold Start 26 Seconds Posi |
| Minimum Standby Current: |
Less Than 0.5 M |
| GSM Antenna: |
FPC Antenna |
| SIM Card Slot: |
1 |
| GSM Frequency Band: |
850/900/1800/1900MHz |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No |
| Chip: |
Mtk |
| Brand: |
Koshiro |
Product Description
Small locator (PET; elderly, children; trunk valuables etc.)

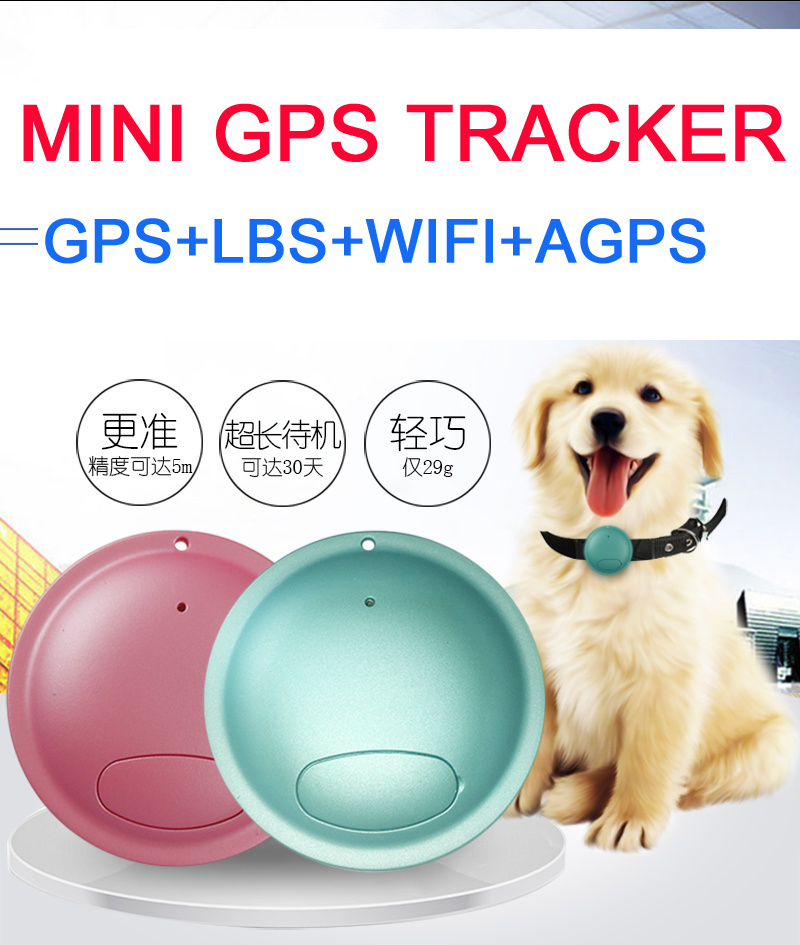

Main features:The appearance of fine; ultra small slim, "GPS+GPRS+WiFi+LBS multi-mode positioning accurate, static sleep power-saving design, real-time positioning, intelligent monitoring Global universal
major function:
1, real-time positioning
2, historical track
3, electronic fence
4, two-way call (SOS emergency call)

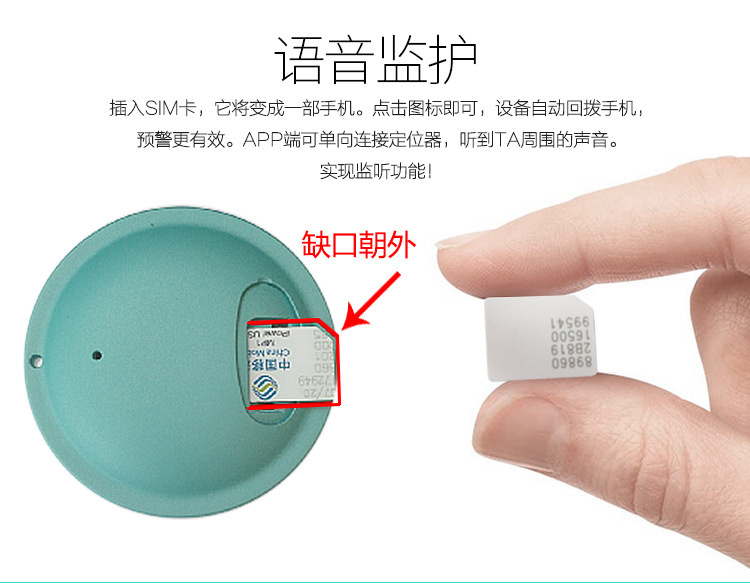

5, voice monitoring
6, vibration alarm
7, remote shutdown
| category | specification |
| ID design | Exquisite compact, ultra small ultra thin |
| Whole machine size | 4cm*4cm*0.7cm |
| Packing size | 11.5cm * 7.5cm * 3.5cm |
| Weight | 29g no packaging, 68g packaging box |
| colour | Golden |
| button | one button(power/SOS button) |
| screen | no |
| gps antenna | High sensitive ceramics active antenna |
| GSM antenna | FPC antenna |
| battery | 400mAh |
| CPU | MTK MT6261 |
| GSM frequency band | 850/900/1800/1900MHz |
| GPS chip | MTK3337 |
| GPRS | class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| WIFI location accuracy | 10~50M |
| GPS location accuracy | 5~15M |
| LBS location accuracy | 100-1000M |
| Minimum standby current | less than 0.5 mA |
| Average stndby current | less than 2.5 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | can approval by 3C,CE&ROSH |
| GPS antenna | Built in high sensitivity ceramic antenna |
| GSM antenna | FPC antenna |
| 3D gravity sensor | Support |
| MIC | Support |
| Texture of material | ABS environmental protection material |
OEM/ODM customized project would be highly welcome.
Why choose IHD Technology Limited(KOSHIRO)?
Our R & D team
We specialize in Smart Wearable & Health Life Product field for several years, We have a group of professional and passionate exprot team.
Over 15 Chinese engineers work together to realize a idea to a real product, responsible for such services like external industrial design, internal structure configuration, PCB layout and technique support during all process of ODM development process.
Our Facilities
We have our all workshops for design to production, such as moulds making, plastic injection, CNC prototype making, Silk printing, Painting spray, SMT, Hardware making and final mass assembling line, which enable us to provide one-stop OEM & ODM services all in house.
Thanks in advance!
Zoe Liao
TEL:86-13809885387
KOSHIRO aims to become leading company in Safty/ healthy and devotes to bring people a scientific, high quality of life, healthy, safe, fashionable lifestyle.
IHD Technology Limited over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.
For now, we have wide experience on GPS Tracking devices\Smart Health Watches\ Heart Rate Fitness Pedometer Bracelet etc...Products of high quality, fashionable, widely used in people's life, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
We also have powerful hardware development capabilities. OEM & ODM project are mainly business of us. IHD to always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions and technical problems.
For our current products, we offer beautiful price and can delivery the goods between 2 ~ 15 days.
OEM/ ODM project, Private label service, Package customized are also warmly welcomed.
