| Prod Model: |
PT30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
77*51*25mm |
| GSM Frequency: |
Quad Band |
| Two Way Talking: |
Yes |
| Sos Button: |
Yes |
Product Description

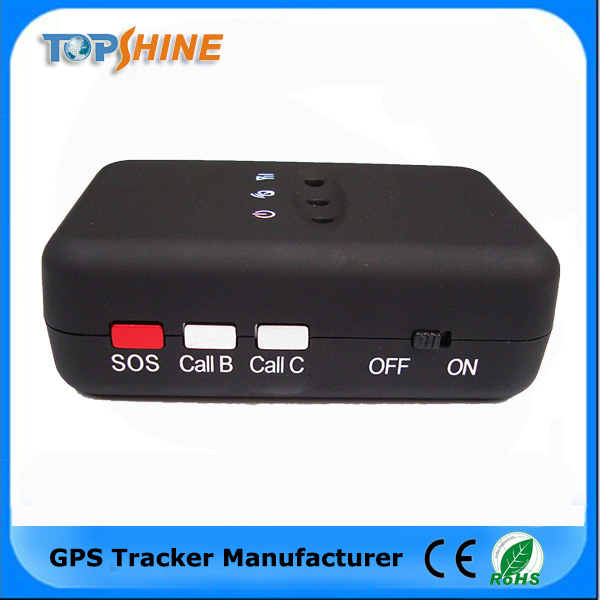

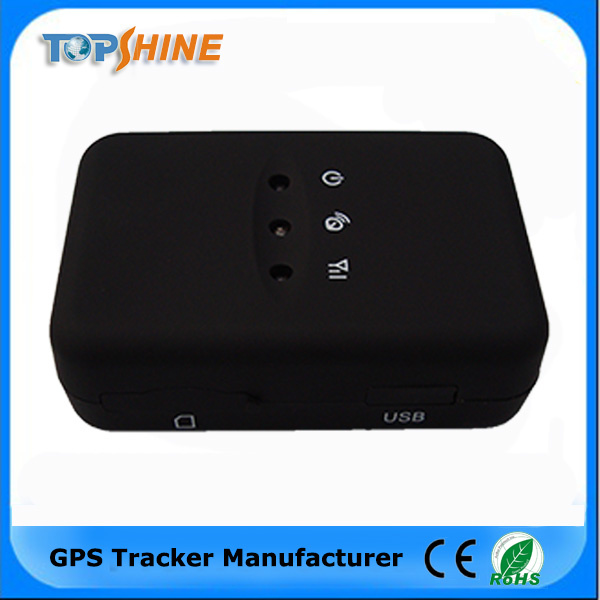

2017 Newest Power Saving GPS Tracker For Person PT30PT30 is a personal remote position device, small size, build-in battery, easy to use. PT30 can be used as an emergency cellular phone and locator. It allows speed dialing of 3 numbers for 2-way voice conversation. PT30 sends alert and call the pre-defined number for immediate assistance. It is suitable for the care&protection&rescue of the elderly, children, patients, wild area explorer, tourists or pets etc. PT30 has good sensitivity and stable performance, tracking by web-based platform or by SMS commands.
Applications * People tracking & security, like the Kids, the Elderly, the tourists
* Assets tracking & security
* Pets tracking & SecurityProduct Features and Functions* No installation, mini size, easy taken
* Track by SMS/GPRS (TCP/UDP)
* Track on Demand
* Real Time tracking via the web-platform
* Track by time Interval
* Two-way conversation
* SOS panic button
* Built-in backup 950mAh battery, normal working, it can work 12 hours, sleep mode, can work 24 hours.
* Geo-fence Alarm
* Built-in sensor for power saving & GPRS flow saving mode (sleep mode)
* Speeding Alarm
* GOOGLE map URL for location via SMS, which shows you location on map via mobile phone.
* Built-in 2MB memory & position logging capacity up to 10,000+waypoints even no GPRS signal
* Get the physical address name via SMS.

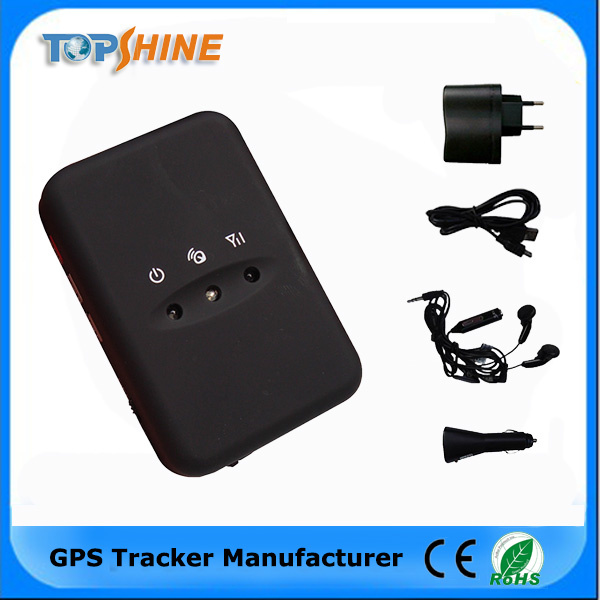

* Three buttons for making phone call and/ or sending messageStandard Package
Certificate of Compliance
Why Choose TOPSHINE
>> Professional manufacturer, less intermediate links, then more competitive price and quicker service than a trade company.
>> 13 year experience in GPS tracking system and car alarm security system, strict ISO9001 quality control and rigorous tests before shipment, ensure our superior and proven reliable quality. Tests include high and low temperature aging test, vibration test, noise tests, high and low voltage change tolerance test, etc.
Inquiry Now!!
| Items | Specifications |
| Dimension | 77*51*25mm |
| Weight | 96g |
| ChargingVoltage | DC 4.5V~5.5V/850mA(Mini USB port) |
|
Power
consumption | Active mode(peak) < 1.0A
Active mode(avg.) < 300mA
|
Operating
Temperature | -30~+75 Celsius degree |
| Humidity | Up to 75% non-condensing |
| External Antenna | Connected via 50 ohm coax connector |
| External SIM Card | Connected via SIM card connector |
| Button | 1SOS and 1poweron/off |
| Microphone | Optional |
| Transmit Power | Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900
|
| Sensitivity | -104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900 |
| GPSChip | LatestGPSSIRF-StarIIIchipset |
| GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps
|
| Speech Codec | Triple rate Codec
Half rate_ETS 06.20
Full rate_ETS 06.10
Enhance full rate_ETS 06.50/06.06/06.08
|
| Packing Measures: | |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 165x155x50 | 0.25 | 1 set |
| Carton | 470x340x310 | 9 | 30 sets |
