| Prod Model: |
YT-RJ45-CPE-10-002, YT-RJ45-JSX-25-001 |
Product Description

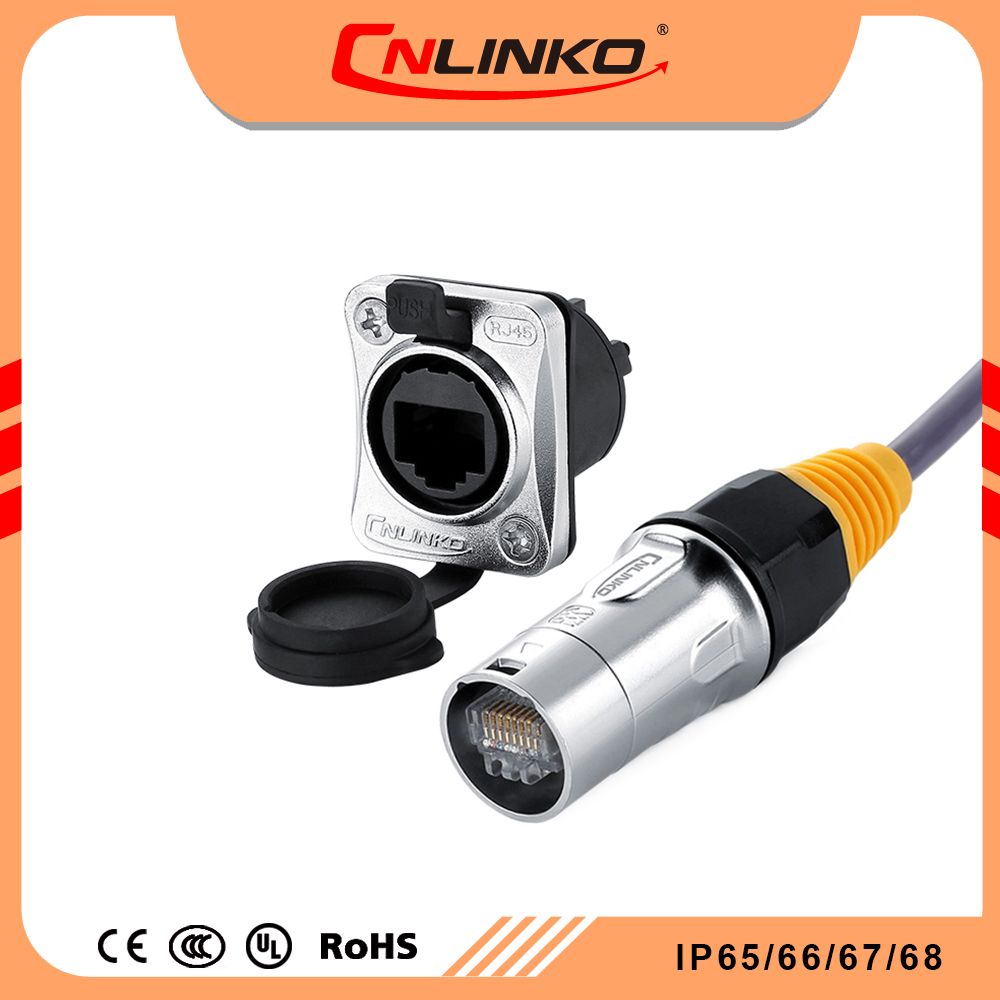

2018 Best Selling IP67 Waterproof Industrial Ethernet RJ45 Conector
Features:
. Compliance with D level or CAT 3E standard of EIA 5688 and ISO / IEC11801,RJ45 connector compatible CAT6E.
. D panel connectors ,metal shell and locking system.
. shielding system with high frequency noise immunity and electromagnetic interference protection.

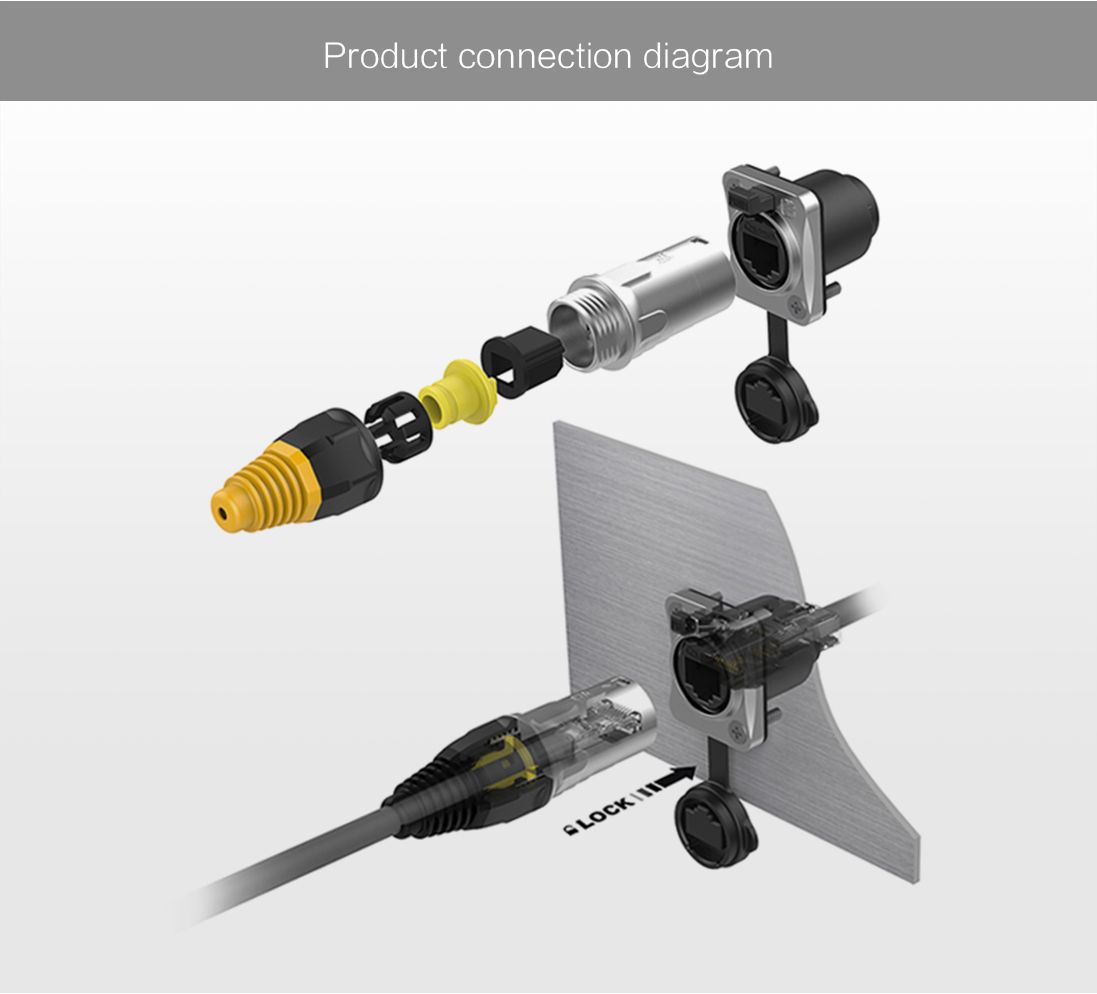

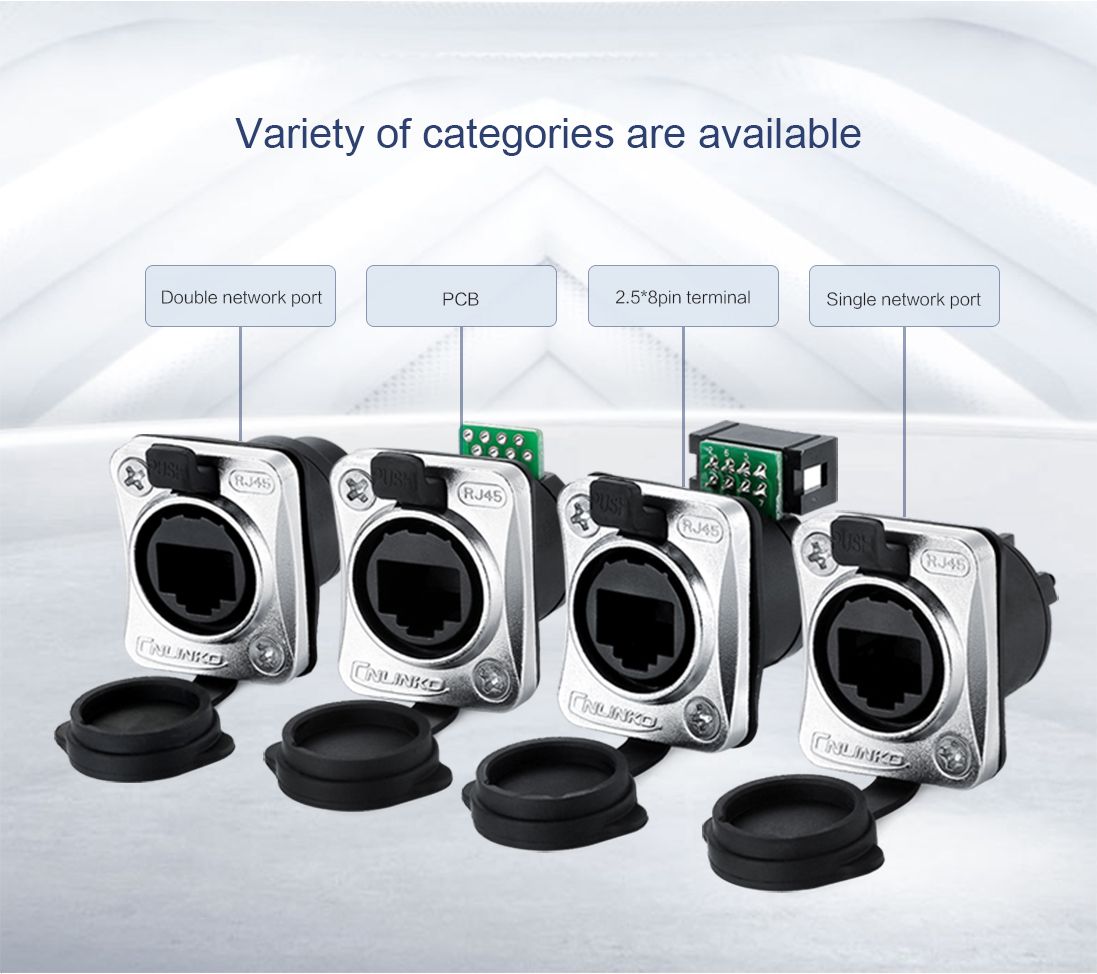

. Push-pull design with secure locking system and optional installation of straight or pcb adapter.
. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof .
. solid connections system can provide the solutions for date transmission in harsh environments.
. waterproof RJ45 connector
Product Description:
Specifications: | Specifications |
| Connecting mode | pull/push |
| Protection level | IP65/IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ7mm |
| Contact Qty | 8 |
| Current rating(A) | 1.5A |
| Temperature rise | / |
| Operating voltage(AC.V.rms) | 1000V |
| Withstanding voltage(AC.V)1min | / |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |

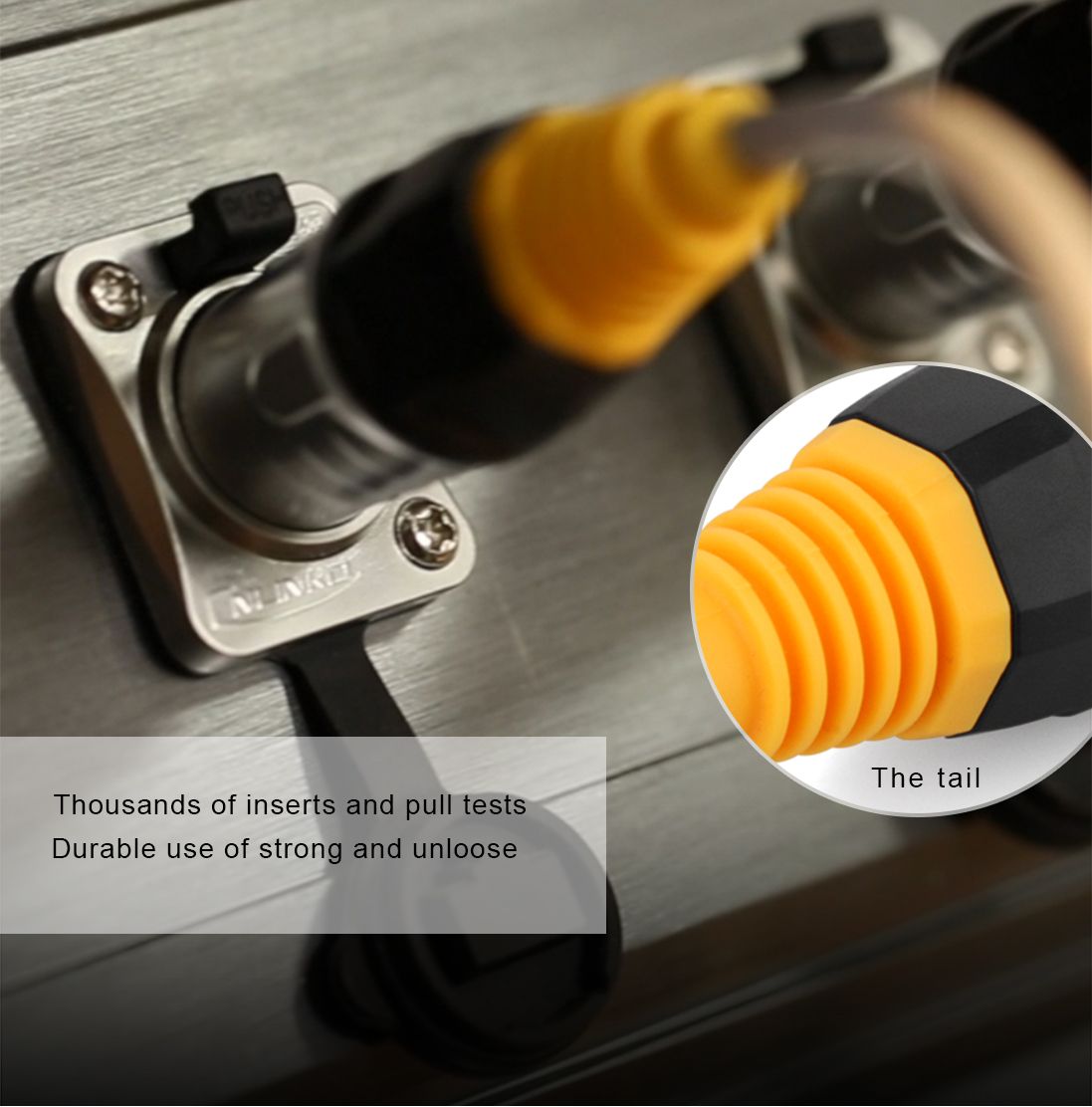

| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | / |
| Prevent the combustion level | UL94-V0 |
| Material |
| Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics |
| Sealed against dust and fluid (IP65/IP67) |
| Vibration resistance,impact resistance,stretching resistance |
| socket with cover |
| Application industries |
| Stage equipment - The smart grid |
| Medical equipment - Server |
| Solar energy equipment - Ship equipment |
| Electric power equipment - Vehicle equipment |
| Communications equipment - Heavy machinery |
Packaging & Shipping:- CNLINKO packing or Customized Packing (MOQ1000pcs each model)
- Packing detail: 2pcs/PE bag, 10pcs/small box, 240pcs/CTN
- Lead Time: 3-5 working days after received payment
- Shipment: by express, by air, by sea
- Payment term:100% T/T in advance
- Payment method: T/T, Western Union, Paypal
Our Services:- our enterprise will strictly follow the connector specificatios and deliver the products in due time as required by the contract
- CNLINKO will provide waterproof connector technological maintenance and guarantee within one year if any quality problem happens to our product
- Professional personnel will provide product specifications,product choice suggestions and installation methods
- professional personnel will provide operation training for free
- zero-distance service and phone number for around-the-clock service
FAQ:Q1:What are connectors?
A1:Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various electrical circuits, plays the role of connecting or disconnecting the circuit.
Q2:What classification do connectors have?
A2: In accordance with the frequency points, a high-frequency connector and the low frequency connectors; in accordance with the shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards, cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.
Q3:What is rated voltage?
A3:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q4:What is rated Current?
A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q5:Why choose cnlinko?
A5: Our product have passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that import from abroad with stable,compression, anti-explosion and anti-deformation; Use Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q6:Is there cheap shipping cost to import to our country?
A6: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you
