2018 High Standard Coaxial Cable Rg59+2c RG6

Name: 2018 High Standard Coaxial Cable Rg59+2c RG6
Brand: all-electronics-online.com
SKU: 704133835
Availability: InStock
Rating: 4.4 (149 reviews)

Price:	US $ 0.1-1/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59+2C RG6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White Green
Impedance:	75ohm 50ohm
Dielectric:	Fpe
Shield:	Bonded Al Foil
Length:	305m
Braid Coverage:	50~95% Bc/Al/Tc
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Model:	Rg59+2c RG6
Brand:	OEM or Superlink

Product Description

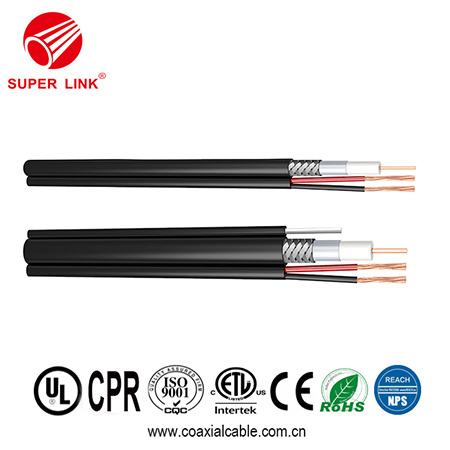

Coaxial Cable RG59+2C RG6

Specifications

Construction

Center Conductor:	1.02+0.01mm BC/CCS18AWG
Dielectric:	4.58+0.05mm Foam PE
Shield:	Bonded Al Foil
Braid Coverage:	60~90% BC/AL
Jacket:	6.90+0.05mm PVC
Connector	F Male/BNC
Messenger	1.3mm Steel Wire
Length	305M/Wooden Reel

Characteristics

Sparker Test:	4000VAC
Impedance:	75+3 Ohm
Capacitance:	50+3pF/m
Velocity of Propagation:	85%
Return Loss:	≥22dB min (5-1000MHz)
	≥20dB min (1000-2000MHz)

Attenuation

Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.58	1.9
50	1.5	4.9
100	2	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.5	21.4
1450	8	26.2
1800	8.5	27.9
2100	9.5	31.1
2250	10	34
3000	11.4	37.5

producing process

Certifications

We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.

Our Services

1. Free sample
2. We can suggest you our suitable products when u have no idea about the cable.
3. If available for you, welcome to visit our factory.
4. We can according to your samples to produce exactly the same product
We will do the QC test for
6. If our customer have any problem, we will reply at 24 hours

Company Information

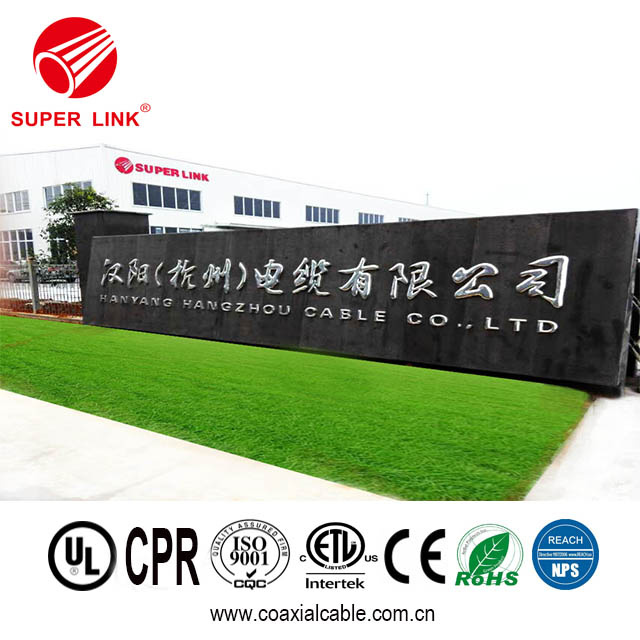

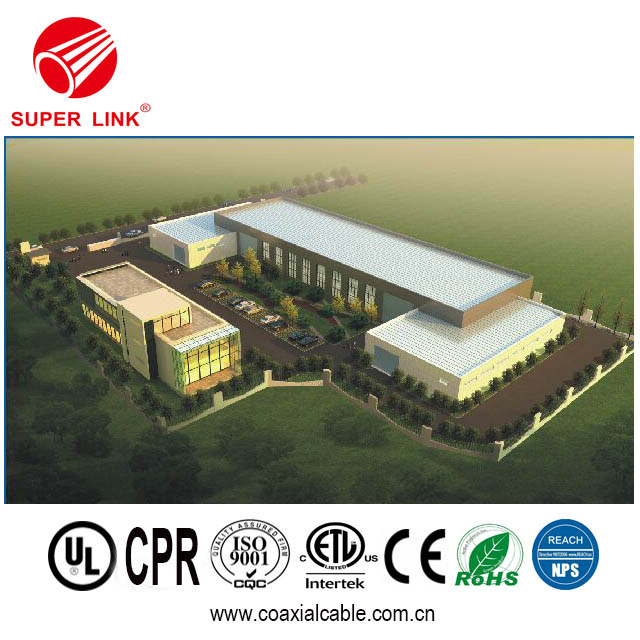

Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990, located in
Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA specializes in the production of cable, such as coaxial cable, network cable, speaker cable, etc. which are highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and services to clients all over the world.

Hangyang(Hangzhou) Cable Co., Ltd. is located in Linan Hangzhou City, Which specializes in the production of coaxial cable RG6, RG58, RG59, RG7, RG8, RG11, RG59+Power cable etc. And network cable TP/FTP cat5e, CAT6, cat7.

We focus on providing high quality OEM/ODM cables and services to clients all over the world. All cables were produced in accordance with IEC, We also passed ISO901 Quality Certification, to maintain high quality standards, we use HP network analyzer to test every batch of cable.

"Quality first, service first, continuous improvement and innovation to meet the customers" is our principle; We sincerely hope establish long and friendly business relationship with clients from all over the world. Our goal is not just providing product, but also providing a complete solution for our customers to achieve their upmost satisfaction
