2018 Hot Selling High Frequency Online UPS Cx2~3K Series, OEM Service with Smart Slot
| Price: |
US $ 95-195/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CX Series |
| Capacity: |
1kVA/800W 2kVA/1600W 3kVA/2400W |
| Battery Type: |
Lead Acid Battery |
| Dimension: |
373*145*219mm |
| Efficiency(AC Mode): |
85% |
| Indicator: |
LCD Display |
| Wave Form: |
Wave Form |
| Color: |
Black |
| Power Factor: |
0.8 |
| Certification: |
ISO9001 |
| Battery Voltage: |
24V 36V 48V 72V 96V |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Standby Time: |
>5mins |
| Brand: |
Zlpower |
| Application: |
Elecronic Equipments |
| Output Capacity: |
1000va~3000va |
Product Description

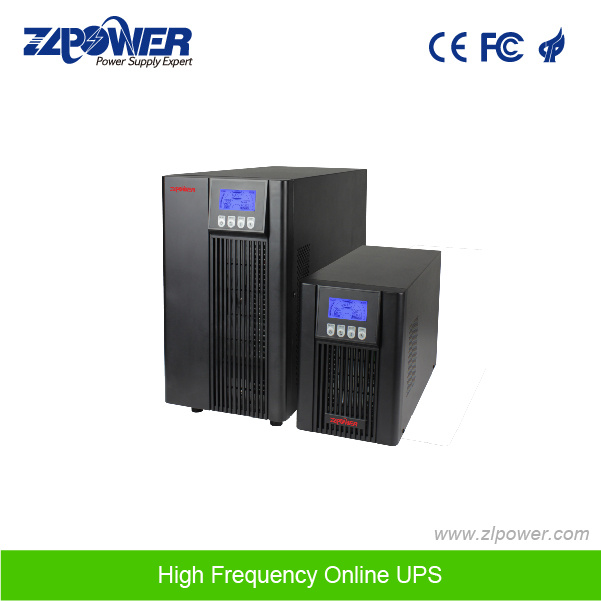

2018 Hot Selling High Frequency Online UPS CX2~3K Series,OEM Service with Smart SlotCX series high frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security,ATM and so on.
Features:♦ Advanced DSP numerical control technology application, the performance of UPS is more stable, more superior quality.
♦ The load power factor is 0.8
♦ Adopting digital control of active power factor correction technology, make the input power factor above 0.98, to avoid the pollution to power network, achieve energy saving, reduce the investment cost of the system."
♦ A very wide range of input voltage and frequency, even in remote parts of electric power environment is very bad to normal power supply, reduce the number of battery discharge, improve the service life of the battery.
♦ Can match generator to use, Input voltage and frequency range is wide, can effectively isolate the generator of electricity, to provide clean, safe and stable power supply load.
♦ Grid is not stable, UPS power supply mode conversion time is zero, effectively ensure the security and reliability of the load operation.
♦ Smart slot can provide abundant extensible function; can choose to install Winpower, SNMP card
Production Introduction
| Model | CX2K | CX3K | C2KL | C3KL |
| Capacity | VA/W | 2000VA/1600W | 3000VA/2400W | 2000VA/1600W | 3000VA/2400W |
| Input | Nominal Voltage | 200/208/220/230/240VAC |
| Voltage Range | 115~300VAC |
| Harmonic Distortion | <10% (Nonlinear load) |
| Power Factor | 0.98 |
| Frequency Range | 50Hz: 46~54Hz;60Hz: 56~64Hz |
| Output | Voltage | 200/ 208/ 220/ 230/ 240 (1±1%)VAC |
| Frequency | 50/60Hz (Adjustable); 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz); Battery Mode: 60Hz (1±0.2%) |
| Wave Form | Pure sine wave |
| Power Factor | 0.8 |
| Harmonic Distortion | ≤4% (Linear load); ≤7% (Nonlinear load) |
| Overload Capacity | 105%~150% 45S~25S; 150%~200% 25s~300ms; ≥200% 200ms |
| Current Crest Ratio | 3∶1 |
| Connections | IEC320*6 | IEC320*3& Terminal block | IEC320*6 | IEC320*3& Terminal block |
| Efficiency | Battery Mode | 83% |
| AC Mode | 87% |
| Battery | Type | Sealed free maintenance lead acid battery |
| Nominal DC voltage | 48VDC | 72VDC | 72VDC | 96VDC |
| Quantity | 12VDC×4 | 12VDC×6 | 12VDC×6 | 12VDC×8 |
| Backup Time (Full Load) | >5min | >4.5min | Depends on requested Back-up time |
| (Built in batteries12V7AH) | Depends on requested Back-up time |
| Charge Current (Max) | 1A | 5A |
| Charge Voltage (VDC) | 54.8V±0.4VDC | 82.2V±0.6VDC | 82.2V±0.6VDC | 110±0.6VDC |
| Recharge Time | 5 hours filling to 90% (standard) | Depends on external battery capacity (long-term) |
| Bypass | Automatic Transfer | On overload and UPS failure |
| Before UPS Power-on | Default "ON" user adjustable to "YES" |
| Transfer Time | | 0 ms; Less than 4ms from inverter to bypass and vice versa |
| indicators | LCD Display | UPS status, Battery capacity, loading, Fault code (LCD: I/P&O/P voltage&frequency, Battery voltage) |
| Audible | | Bypass, On battery mode, Battery low, Overload, Fault |
| Acoustic Noise | At 1 Meter Distance | <50dB |
| Communications | Intelligent RS232 serial port | Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX and MAC |
| SNMP (Optional) | Remote control UPS through SNMP management and Internet |
| USB (Optional) | Windows family software and Mac OS |
| Environmental | Operating Temperature | 0~40ºC |
| Operating Humidity | 20~90% (No condensing) |
| Physical Parameter | L*W*H (mm) | 448*192*341 |
| Net Weight (Kgs) | 17.5 | 22 | 9.5 | 10 |
Company Profile
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
