2018 Newest APP Bluetooth Tire Pressure Monitoring System

Name: 2018 Newest APP Bluetooth Tire Pressure Monitoring System
Brand: all-electronics-online.com
SKU: 838598035
Availability: InStock
Rating: 4.9 (78 reviews)

Price:	US $ 37-39/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BleApp1-E
Display Mode:	APP Mode
Working Voltage:	3V
Response Time:	≤6s
Tire Pressure Range:	100-900 Kpa
Weight:	8g±1g
Bluetooth Working Frequency:	2.4GHz
Working Humidity:	95%Max
Working Current:	540ua
Sleep Current:	2.4ua
Type:	APP Bluetooth TPMS
Wiring Type:	Wireless
Customized:	as Customer's Choice

Product Description

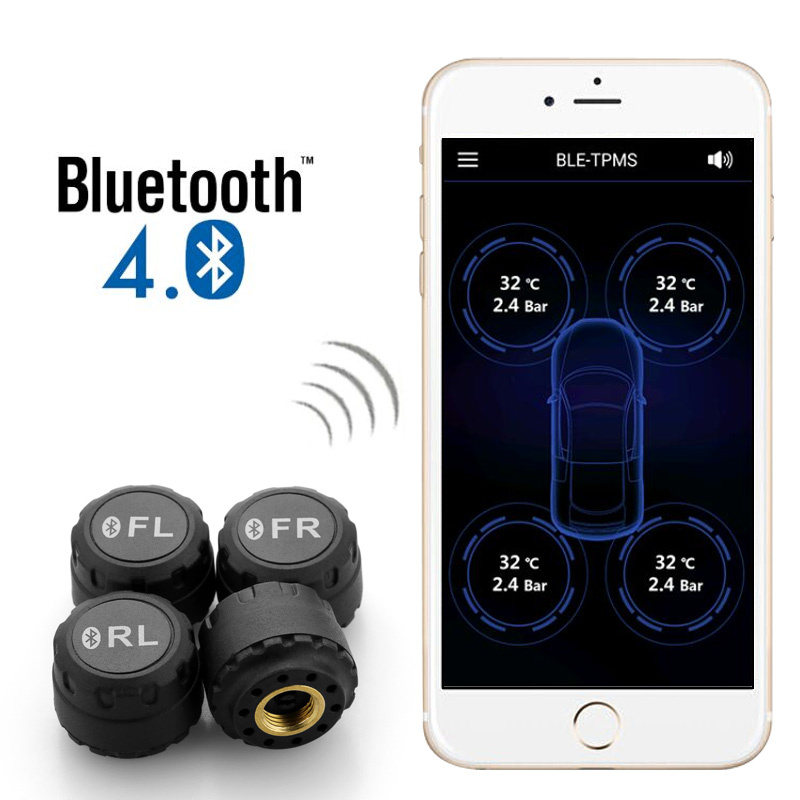

2018 Newest APP Bluetooth tire pressure monitoring system

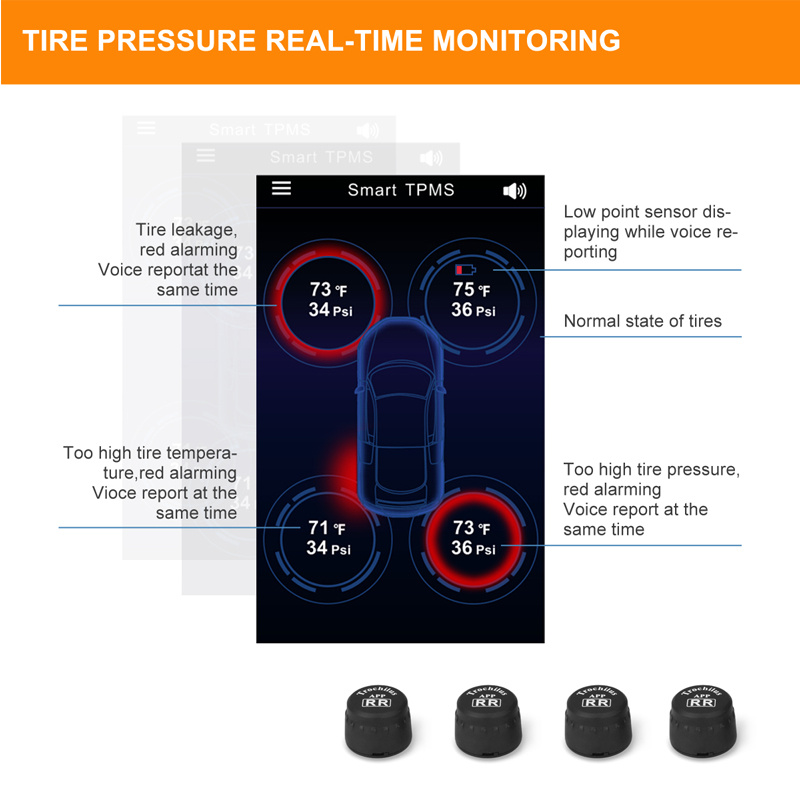

"APP Bluetooth Tire Pressure Monitoring System" is a TPMS designed specifically for smart phones to display tire Pressure data via APP,and transfer signs through Bluetooth.The Bluetooth sensor transfer the pressure and temperature data of car tires during the vehicle driving process. The tire pressure and temperature data are displayed and monitored, and if the data is abnormal, the APP system will alarm timely to ensure traffic safety.

Product Parameter:

*Parameter*	Value	*Parameter*	Value
*Processor*	*8 bits MOU/SO8*	*Working Voltage:*	3V
*Core*	*ARMMO*	*Sleep current*	*2.4uA*
*Working Current*	*540uA*	*Bluetooth working frequency*	*2.4GHz*
*Bluetooth transmission power:*	*0 dBmMAX*	*Display mode:*	*App mode*
*Response time:*	*≤6s*	*Waterproof degree:*	*IP67*
*Working humidity:*	*95%MAX*	*Tire pressure range:*	*100- 900kpa*
*Accuracy of tire pressure:*	*±0.1Bar*	*Working temperature:*	*-30ºC~+80ºC*
*Storage temperature:*	*-30ºC~+85ºC*	*Battery capacity:*	*140mAh*
*Battery life:*	*400days*	*Weight:*	*8g±1g*

Packaging Details: Gift Box Size:150*120*70MM

Delivery Detail: 3-7 days for sample and 15-20 business dyas for general order

Our Services:
1.Professional and 17 years history
2.17-year overseas marketing &17-year OEM/ODM experience
3.100% quality test before shipment
4.Market leading prices
5.Best after-sales service
6.Abundant exporting experience

Notice: For more detail information,please feel free to contact us!

Established in 2001, Shenzhen Sunway Industry Co., Ltd. Is a professional manufacturer in car electronics industry, such as TPMS, DVR. Parking Sensor, Car Camera, Headrest, Monitor, DTV Receiver Box.

With Industrial Zone in Hunan Province, headquarter in Shenzhen, and up to 300 employees, Sunway's monthly output is 800, 000 pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, Russia, Australia, Mexico, Brazil, etc.

We have a skilled R&D team and be able to process OEM/ODM orders. We provide products with high quality, shortest delivery time, competitive price and more professional service. We test every piece of raw material from our suppliers and every finished product will be tested at least 3 times before shipment, all those make us become a professional supermarket supplier, such as USA Wal-mart.

As an ISO9001 certified company and TS 16949 factory, with CE, E-MARK, RoHS approval, we always try our best to satisfy our clients and strengthen our position in the global market.
