2018 SIP Telephone Boards VoIP Poe Kit Main Card PCB Board
| Price: |
US $ 80-99/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
KN518 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
2018 SIP Telephone Boards VoIP Poe Kit Main Card P |
| Model Number: |
Kn518 |
| Warranty: |
18 Months |
| Operating Temperature: |
-30 C - +70 C |
| Version: |
Handset or Handsfree |
| Network Protocol: |
SIP 2.0 |
| Voice Code: |
G.711 a/Ulaw |
| I/O Port: |
1port or More |
| Power Supply: |
Poe + DC 12V |
| Size: |
106*67mm |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Multilayer |
| Certification: |
Ce, FCC, TUV, EMC |
| Customized: |
Customized |
| Condition: |
New |
| Base Material: |
Main Card |
Product Description
2018 SIP Telephone Boards VoIP PoE kit Main card PCB Board
Ms. Miki Mo
M: +86 135 3042 8923
Welcome to Choose Kntech Telephone PCB boards !
2018 SIP Telephone Boards VoIP PoE kit Main card PCB Board feature :
Working at -40ºC-+70ºC hazardous pure industrial environment
4 ~100 I/O output and input for external control
Support WAN/LAN, Duplex Intercom,Echo Cancellation,Upgrade Online
With Camera optional
With TFT display and Camera optional
Web page up to 50+ IP station group/direct call without IPPBX
Adjustable sound volume
IP address Sound reporting or LCD display
Door phone RFID card reader available upon request
Board cast amplifier for paging option
CCTV trigger available
SIP 2.0 and private protocol
5 years warranty
PCB surface glued protection: Water-proof, Dust-proof, Oxidation-proof.
SIP Telephone Boards KN518 VoIP Main Board PCB Board Application :

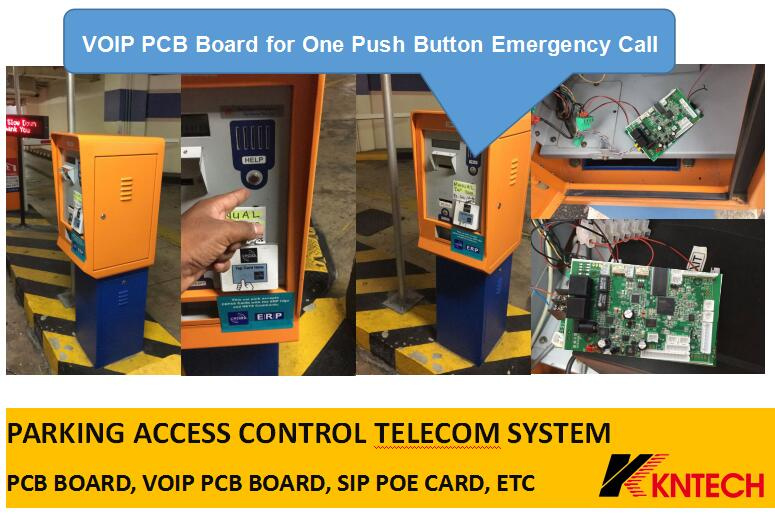

Telecommunication device, vehicle check point, VoIP speakers, emergency intercom, emergency telephone.
For packing lot, public address, Industrial, onshore, shipyards, ship building, power plant, steel plant, airport, metro, bank, tunnel, ...etc. PCB surface glued protection: Water-proof, Dust-proof, Oxidation-proof.
PCB Features1. SIP 2.0 and IMS platform operators, the interconnection between mainstream manufacturers IP PBX.
2. High-end chips: the embedded DSGP chip, stable and reliable.
3. Call flexible: support hands-free, handset, headset operating mode.
4. Voice interface: hands-free, handset, headset, audio interfaces and an external amplifier interface.
5. Power supply: DC5V-15V, compatible POE IP PBX power supply mode (POE 802.3af Classl 48V)
6. Alarm Interface: Built-in three-way input detecting short circuit, output short-circuit three-way.
7. Telecom-level voice: support full-duplex speakerphone, providing Telecom level voice quality.
8. On board Amplifier: Built-in 2.5W / 4Ω digital amplifier, drive loudspeakers directly.
9. Remote adjust volume: support the console remote to adjust the volume.
10. Multiple key options: support dial any telephone number, the numeric keypad and function keys, speed dial keys, editing keys.
11. Status indicate: support registration, call status indication.
12. Multi-party call: supports three-way calling or multiparty call (multiparty conferencing).
13. MIC Mute: Support IPPBX broadcast voice call, local MIC automatically mute to avoid howling.
14. Warning lights drive: support indicator lights for coming calls and taking.

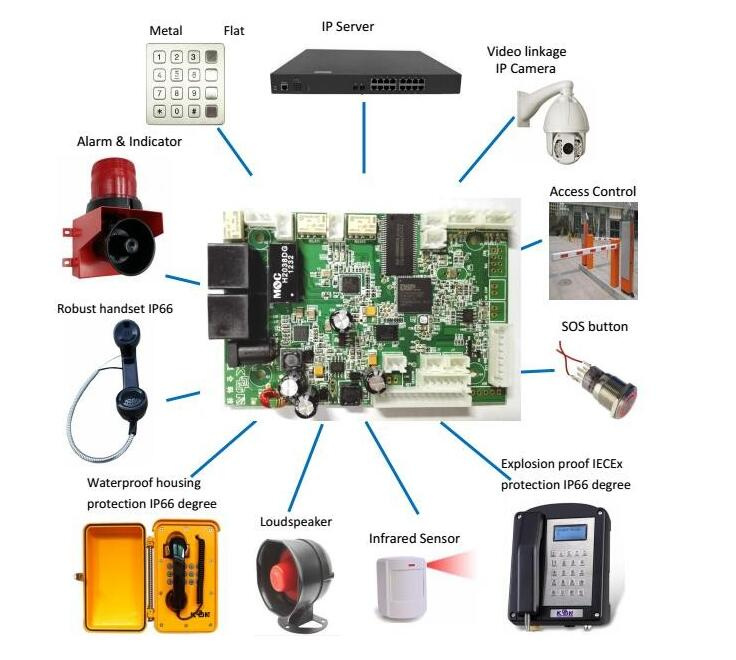

Variety Of Terminals for DIY Assembling
Outdoor & Indoor application. SOS telephone, Help point, handset emergency phone, hand-free emergency
phone, help phone, outdoor emergency phone, call point, metal help phone, camera phone, public phone,
loud speaking phone, bank service telephone, elevator phone, ...etc.

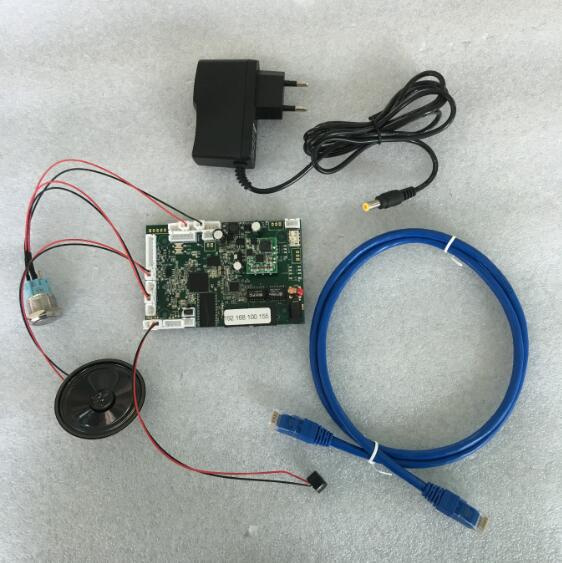

2018 SIP Telephone Boards VoIP PoE kit Main card PCB Board show:
2018 SIP Telephone Boards VoIP PoE kit Main card PCB Board Parameter:
| Working temperature | -30 ---70C |
| Input voltage | 7.4V-9V |
| Standby current (average) | 70mA @ -75 dBm |
| Current call | 230mA @ -75 dBm |
| Receiver sensitivity | -106.5dBm |
2018 SIP Telephone Boards VoIP PoE kit Main card PCB Board certification:
Why Choose Koontech Telephone Boards ?
Start from 1998, KOON Technology Ltd located in HONGKONG and have its own factory in Shenzhen China which is one hour drive from HONGKONG.
KOON mainly devote to the R&D. manufacture and sales of the Emergency Telephone remote management system of vessel internal PAGA emergency help phone system,
Weatherproof telelphone for Metro and RFID door phone for access control. The production covered by Analogue / Fiber optic system and wireless GSM telephone and IP VOIP SIP telephone call system. The Remote management system of tourists emergency help phone,off shore ship internal comunication system, sos emergency call system, SOS highway or Tunnel emergency call system, fire alarm system, Explosion proof telephone for Oil and Gas industry, telephone booth for weatherproof industry. developed by ours own strong R&D team. Voice to control CCTV and door access and manage the site had success-fully applied to Bank ATM stop ,tourists' SOS help in Beauty Spot , expressway remote management ,SUBWAY, Metro, Tunnel, Power plant, off share, airport,passenger and disable assistance ,etc .And it also enter into the European and American and Asia and Middle east market successfully with wonderful reputation.
We had developed a good cooperation with some famous companies domestic and oversea, such as the Siemens ,Alcate, Thales, Honeywell, ALSTON, ABB, Schlumberger ,Singapore Technology INFA, TTIC, ZET, Huawei......
The market Stretchs of 2018 SIP Telephone Boards VoIP PoE kit Main card PCB Board across to USA Canada France Russia Italy Norway Switzerland Finland Denmark Germany, Portugal Holland Britain Brazil Chile Venezuela. Mexico,rgentina.
Malaysia.Inda.Vietnam.Thailand.Singapore.Pakistan.Nigeria. Shouth Africa. Egypt. Sudan Tunis Kenya.Tanzania. Korea and Japan.etc.
We are NO.1 in Asia and we have our own products patent and qulified with IP67, EN Railway 50121,CE,FCC,ATEX DNV...etc.Quality control process basis on ISO9001. Over 17 years experence your best trustworthy.
