20A 14-12AWG Push Wire Connector Watertight Connector Male Female Waterproof Circular 3 Pin Connector with Dust Cover

Name: 20A 14-12AWG Push Wire Connector Watertight Connector Male Female Waterproof Circular 3 Pin Connector with Dust Cover
Brand: all-electronics-online.com
SKU: 788950295
Availability: InStock
Rating: 4.7 (71 reviews)

Price:	US $ 3.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH-24-C03PE-01-001/DH-24-J03SX-01-001
Gender:	Male
Application:	UHF

Product Description

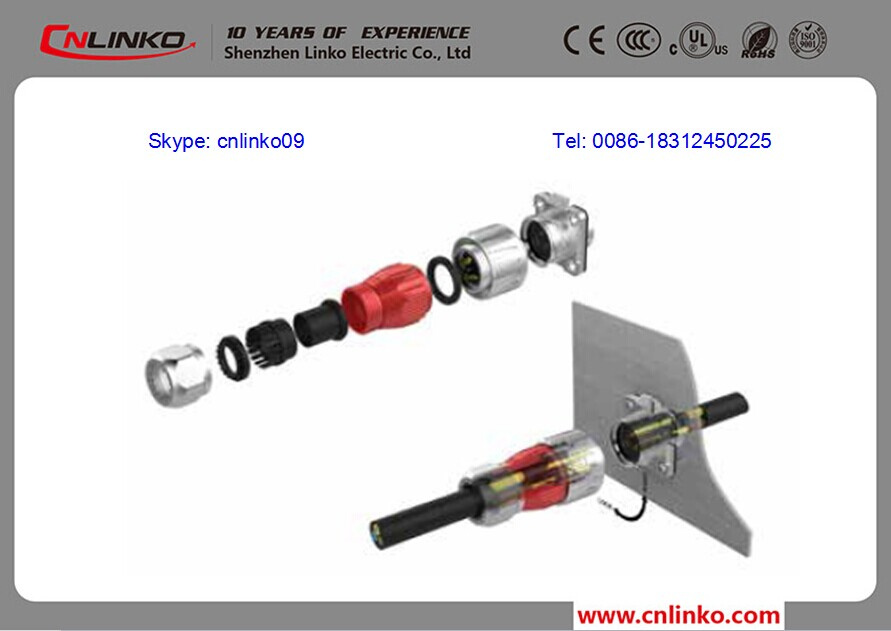

20A 14-12AWG Push Wire Connector Watertight Connector Male Female Waterproof Circular 3 pin Connector With Dust Cover

Product Specification:

DH-24-C03PE-01-001/DH-24-J03SX-01-001 3pin male plug & female socket
Specifications:
Connecting mode:	Screw connect
Protection level:	IP65/IP67
Cable specification:	2.5mm² ~ 4mm² /14~12AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ3.0×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0


Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Package and Payment Method:
Packaging: 10pcs/small box, 100pcs/middle box,240pcsc/carton
Payment: T/T,Western Union, Paypal in adanvce
Lead time: 3-5 working days if have in stock, 7-10 working days without stock.
