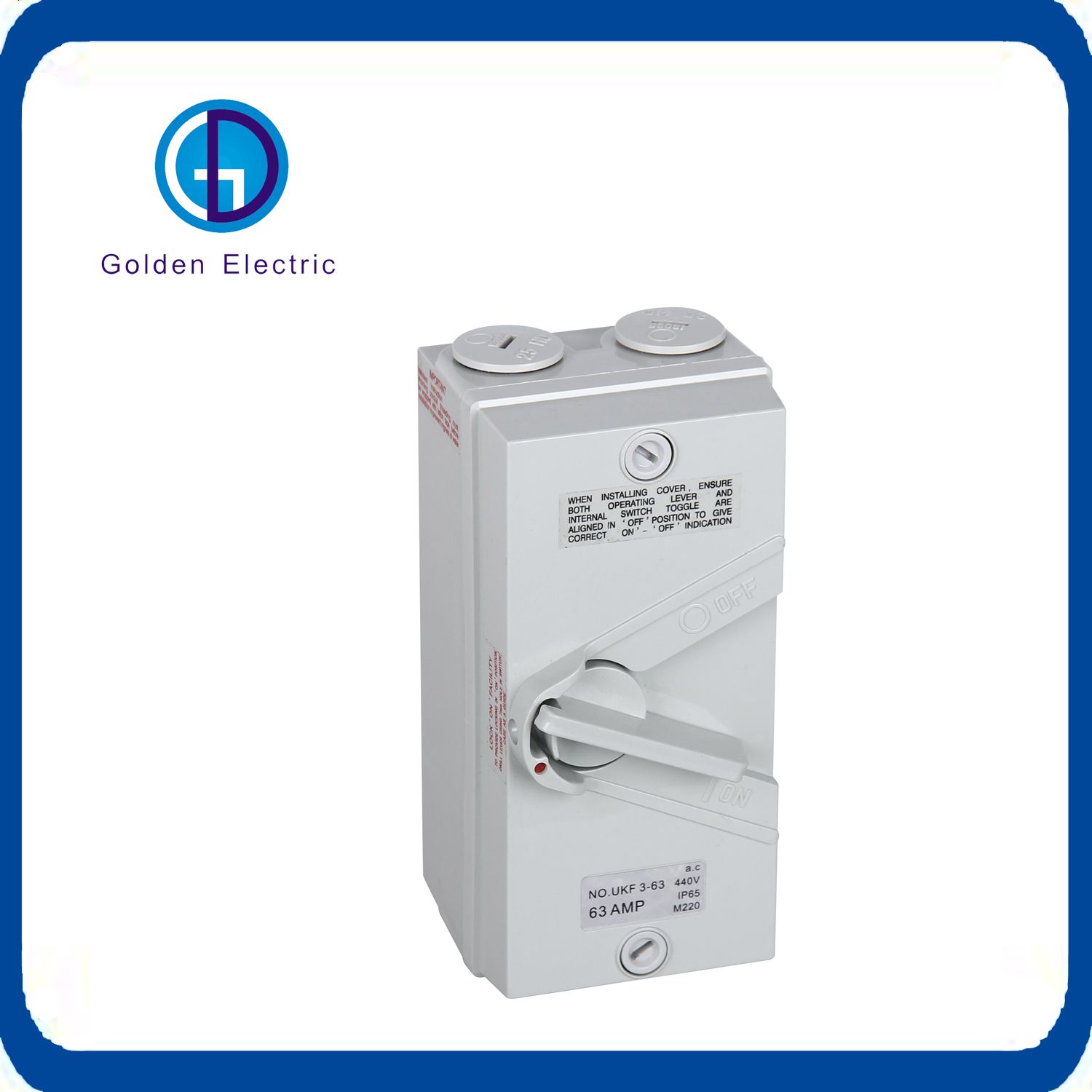

20A 35A 63A  440V  Four  Pole IP66 Disconnector Switch Disconnecting Switch

20A 35A 63A  440V  Four  Pole IP66 Disconnector Switch Disconnecting Switch
Price: US $ 0.1-18/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: UKF
Color: Grey
Installing The Product: Switch, RCD, MCB
Thickness: 1.5mm
Surface Finish: Power Painting
OEM: Available
External Size: Optional
Name: Tsm Distribution Box
Quality Control: Have Quality Control Person 7
Surface Treatment: Powder Coating
Customization Logo: Silkscreen
Type: Power
Structure: Protection
Size: 20,32,40,63A
Application Range: Home Use and Outdoor Use
Shell Material: PC and ABS Fireproof
Shell Protection Grade: IP66
Brand: Golden/OEM

Product Description

UKF Series Waterproof Isolator Switch
Weaterproof Isolator Switch
1.All units comply to IEC60947-3
2.Current use of 20A ~ 63A
3.Wide range of applications
UKF Waterproof Isolator Switch
 UKF series of weather-resistant isolator wide range of applications, suitable for any outdoor application conditions. Including unipolar, bipolar, and three-pole switch, current use of 20A ~ 63A.

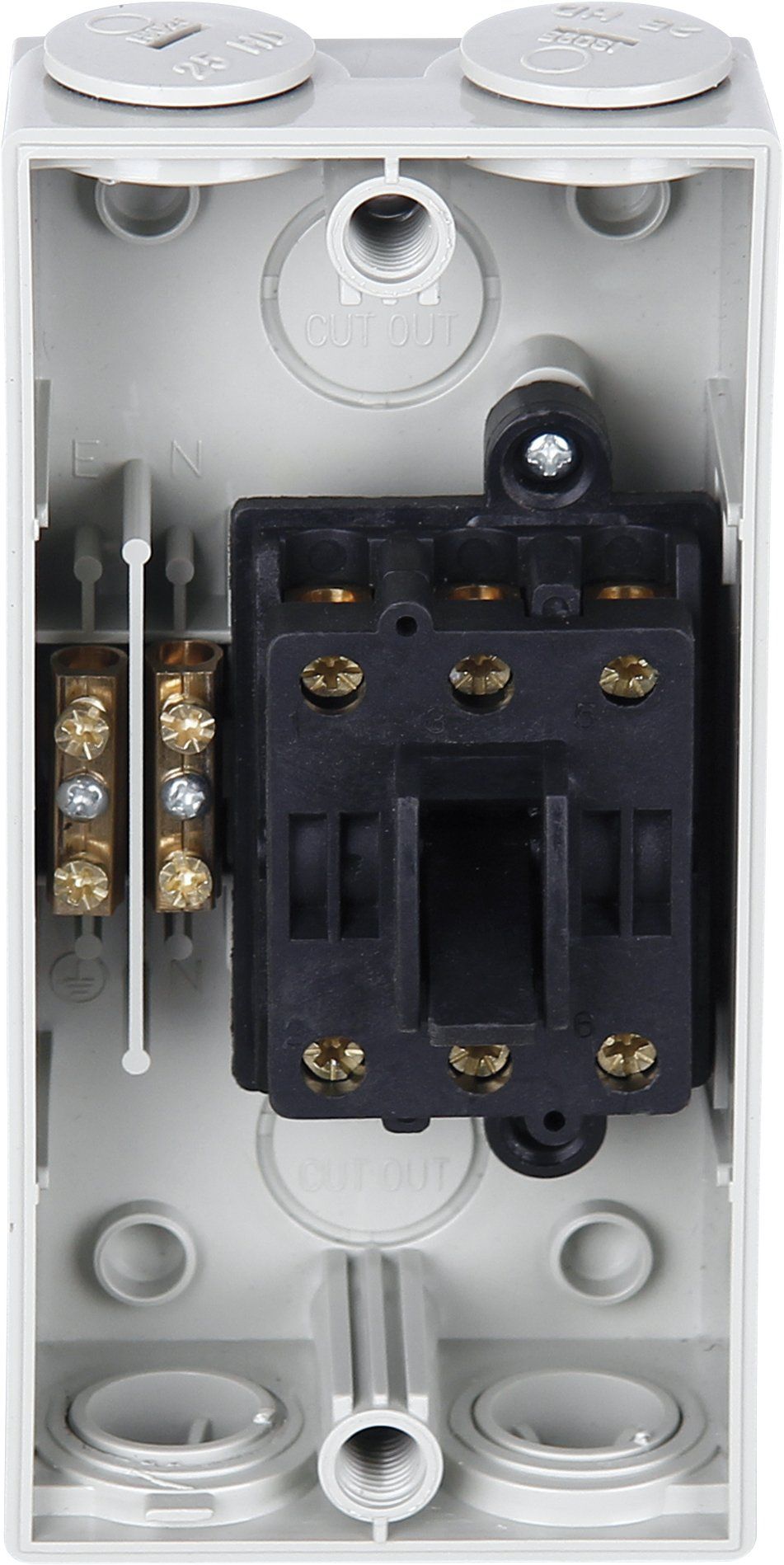

 Installed base of devices provides a more easy termination and more wiring space. (Switch size is 165mm × 82mm, overall height 85mm.)
Install ground and neutral bars with dual clamping screws to connect the same cable clamp strip length and reliable. Terminal aperture 5-6mm.
 More secure, installation switches to a metal structure with an insulating cap, insulating cap covering the base mounting screws to prevent their exposure to energized cables.
 Each unit supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw caps. Screw caps must be installed to ensure IP Rating.
 The impact Resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with aone piece weather seal gasket.
 For security,a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep moulded barriers protect the operating lever from physical abuse or accidental switching. All units comply to IEC60947-3. Standard colours are Grey & White.
Model and size:
Products AvailablePhase&VoltageIP Rating
1P-20A20A 250V Single pole surface switch.
Terminals accommodate 16mm2cable.M Rating220
65
1P-35A
1P-63A
35A/63A 250V Single pole.
Terminals accommodate 16mm2cable.M Rating220
65
2P-20A20A 440V Double Pole.
Terminals accommodate 16mm2cable.M Rating180
65
2P-35A35A 440V Double Pole.
Terminals accommodate 16mm2cable.M Rating180
65
2P-63A63A 440V Double Pole.
Terminals accommodate 25mm2cable.M Rating160
65
3P-20A20A 440V Triple Pole.
Terminals accommodate 16mm2cable.M Rating180
65
3P-35A35A 440V Triple Pole.
Terminals accommodate 16mm2cable.M Rating180
65
3P-63A63A 440V Triple Pole.
Terminals accommodate 16mm2cable.M Rating160
65
4P-20A20A 440V four Pole.
Terminals accommodate 16mm2cable.M Rating180
65
4P-35A35A 440V four Pole.
Terminals accommodate 16mm2cable.M Rating180
65
4P-63A63A 440V four Pole.
Terminals accommodate 16mm2cable.M Rating160
65

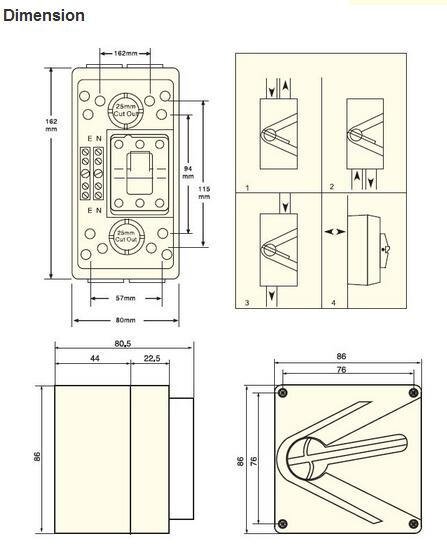

Size drawing:

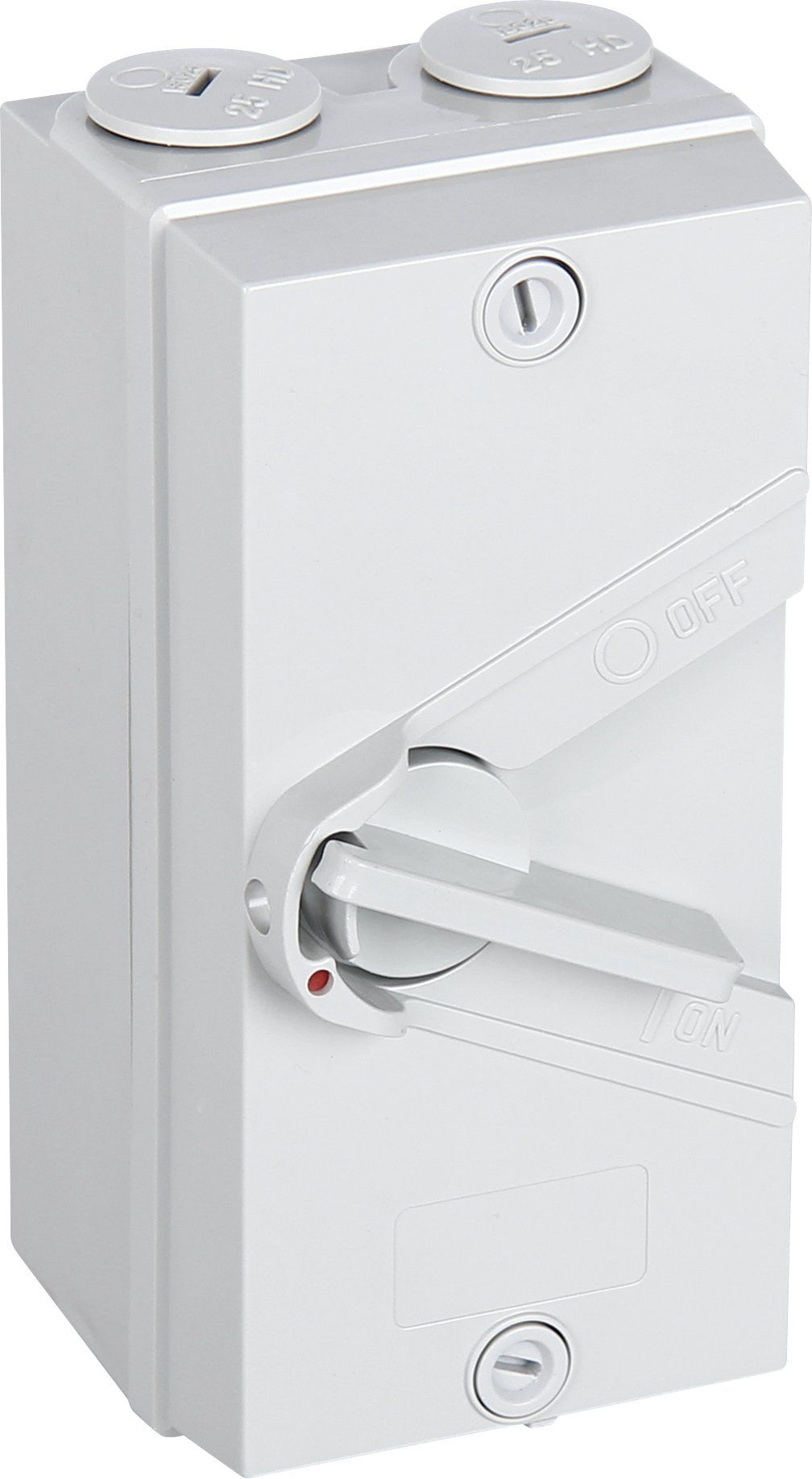

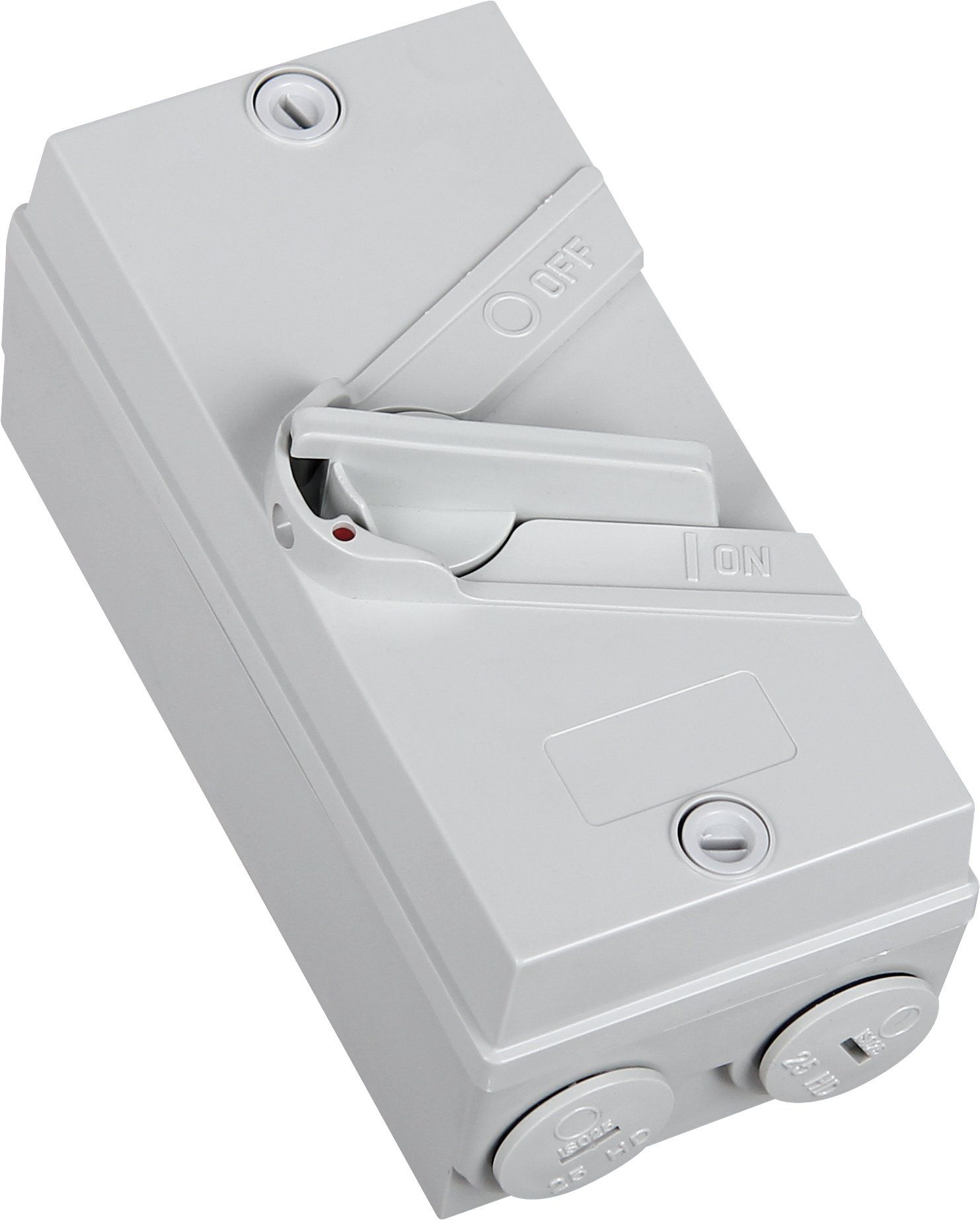

Picture:

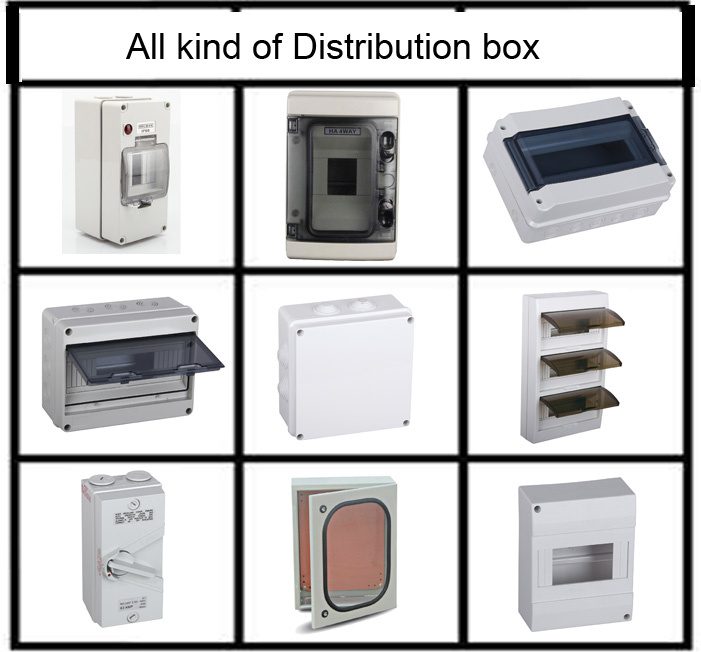

Other distribution box we produce:
