20A High Voltage Current Transformer for Energy Meter

20A High Voltage Current Transformer for Energy Meter
Price: US $ 1.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: NRC03
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 30X18X30mm
Accuracy: 0.1%,0.2%
Working Temperature: -25~75
Relative Humidity: 80%~90%
Phase: Single
Coil: Core-type Transformer
Cooling Method: Oil-immersed Type Transformer
Winding Type: Separated Winding Transformer
Application: Current
Brand: NCR

Product Description

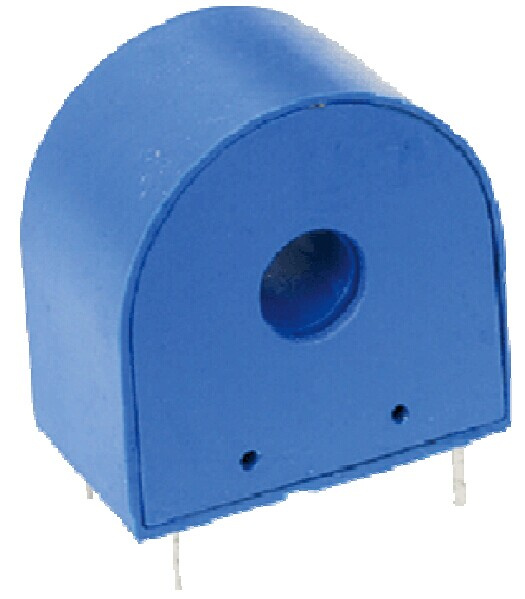

20A High Voltage Current Transformer for energy meter





Current Transformer NRC03

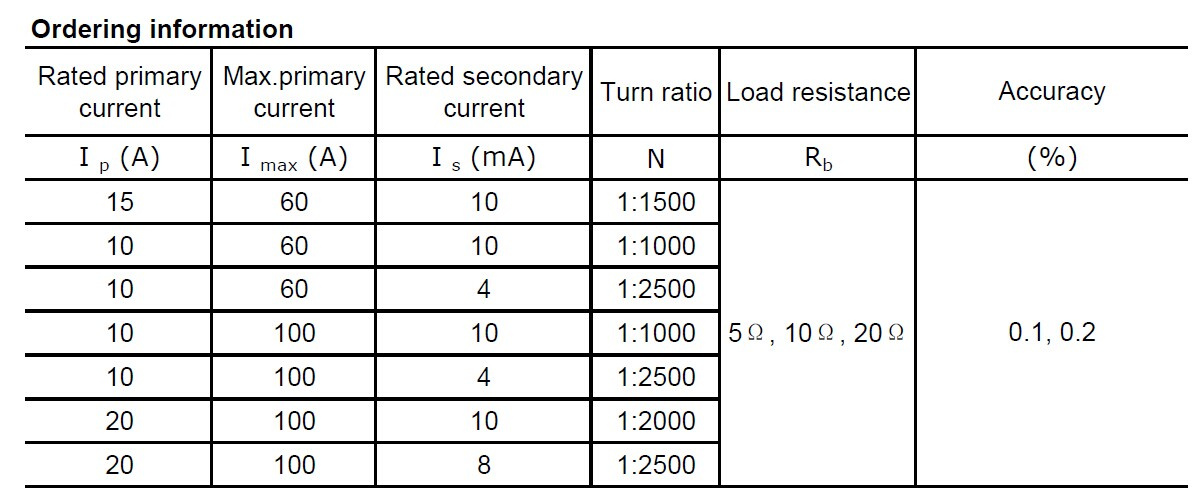

1. The current Ratio
5(30)A/3.33mA
10(40)A/10mA
10(80)A/5mA
10(100)A/5mA
20(80)A/20mA

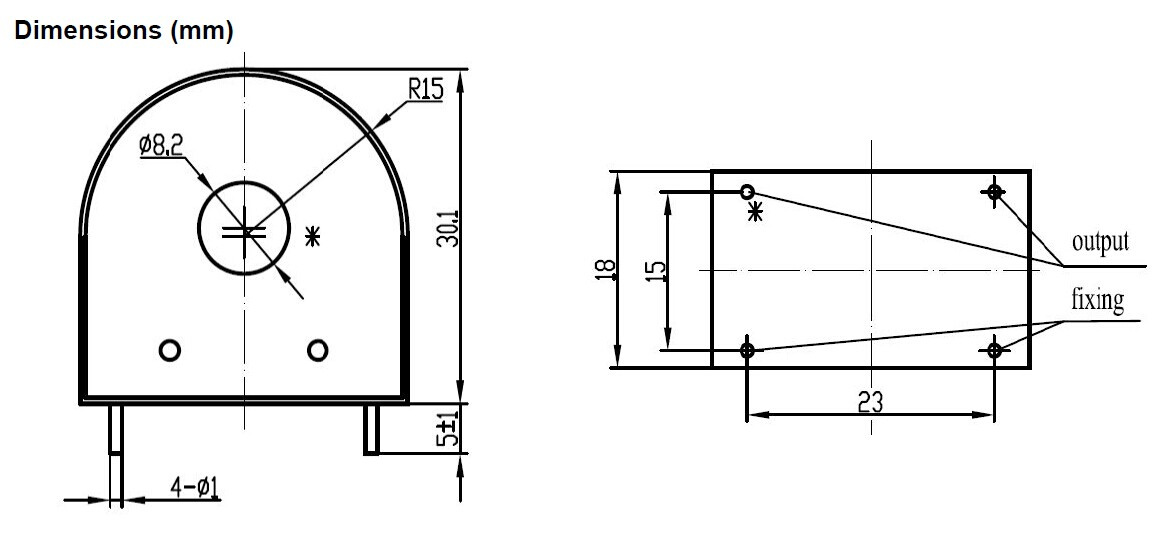

2. The dimension
30x18x30mm


(current transformer, mini current transformer, precision current transformer)
NCR Industrial:

A) P. C. B Relays for household appliance industry

B) Latching Relays/Shunts/C. T. For Energy meter industry

C) Eletricity Measuring Meters

With professional manufacturing and reliable design concept, NCR is supplying superior Latching Relay, Shunt and Current Transformer to worldwide meter producers.

With decades of manufacturing experience, we are now enjoying a high reputation in the metering field worldwide. Our product range include Latching Relay and Shunt/Current Transformer used for 60-200A single & three phase energy meter. We have over 10000sqm production facilities, several automatic and semi-automatic production lines. With strong R&D capability, we are offering our clients one-step customized solutions and service.

Based on ISO9000 quality standard, we have set up strict IQC, IPQC and FQC system in our manufacturing, to ensure quality meeting IEC62055-31 standard and customer's requirements.

We'll always keep the spirit "offering the best products and outstanding service", to go along with all our clients together. By continuous steps, NCR is efforting to offer better products and more professional solutions to our users.

"Nice, Content, Reliable. It's NCR.
