Zhejiang NCR Industrial Co., Ltd. >> 20A Miniature Microswitch Simulated Roller Lever (NL-5W / NL-10W)

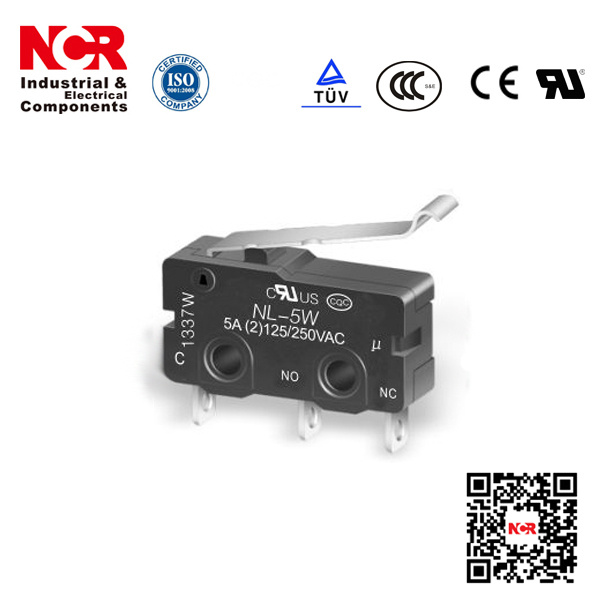

20A Miniature Microswitch Simulated Roller Lever (NL-5W / NL-10W)

20A Miniature Microswitch Simulated Roller Lever (NL-5W / NL-10W)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 120/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: NL-5W / NL-10W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Min. Voltage: DC5V 160mA
Color: Black
Contact Form: Spdt / Spst-Nc / Spst-No
Contact: Silver Alloy
Rating: 10A / 5A 125/ 250VAC
Certificate: Enec,CQC,UL,RoHS
Pressing Type: Push-Button
Protection: Waterproof
Breaking Capacity: General Type
Size: Mini
Brand: Nncr

Product Description

20A  Miniature Microswitch Simulated Roller Lever(NL-5W / NL-10W)

Place of Origin:  Zhejiang China (Mainland)
Max. Current:  10A/ 5A
Protection Level:  IP40
Contact Gap: 0.5mm
Economical, subminiature micro switch offers long service life.
All models are free from overtravel restrictions, permit easy setting.
Standard operating force, low force force models available.
RoHS Compliant.


NCR Industrial:

A) P. C. B Relays for household appliance industry

B) Latching Relays/Shunts/C. T. For Energy meter industry

C) Eletricity Measuring Meters

With professional manufacturing and reliable design concept, NCR is supplying superior Latching Relay, Shunt and Current Transformer to worldwide meter producers.

With decades of manufacturing experience, we are now enjoying a high reputation in the metering field worldwide. Our product range include Latching Relay and Shunt/Current Transformer used for 60-200A single & three phase energy meter. We have over 10000sqm production facilities, several automatic and semi-automatic production lines. With strong R&D capability, we are offering our clients one-step customized solutions and service.

Based on ISO9000 quality standard, we have set up strict IQC, IPQC and FQC system in our manufacturing, to ensure quality meeting IEC62055-31 standard and customer's requirements.

We'll always keep the spirit "offering the best products and outstanding service", to go along with all our clients together. By continuous steps, NCR is efforting to offer better products and more professional solutions to our users.

"Nice, Content, Reliable. It's NCR.
