20AWG Bc 95%CCA Braiding Rg59 Siamese Coaxial Cable

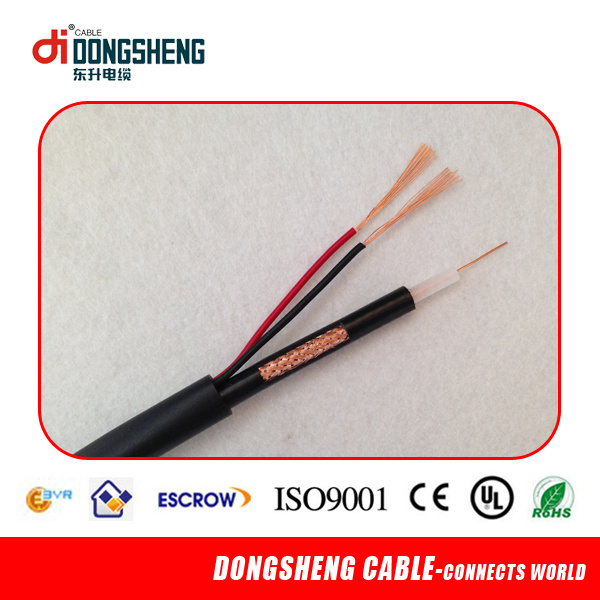

Name: 20AWG Bc 95%CCA Braiding Rg59 Siamese Coaxial Cable
Brand: all-electronics-online.com
SKU: 763312085
Availability: InStock
Rating: 4.8 (149 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DSC-RG59 Siamese Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CCTV Cable Rg59-2c/18AWG UL Listed:	Rg59-2c
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Rg59 Siamese Cable

Product Description

20AWG BC 95%CCA Braiding Rg59 Siamese Coaxial Cable

RG59 Siamese Coaxial Cable

RG59 Cable Proudction

CCTV Cable RG59 + 2C (Economic) :
Coax: 0.81CCS+3.66FPE + Al Foil/blue/bonded +112*0.12CCA+6.1PVC(Black)

DC Power : (7*0.37+1.8PE)*2
Jacket (mm): 6.1+5.1

> Security Cable RG59 With Power (Copper) :

Coax: 0.81BC+3.66FPE + Al Foil/blue/bonded +144*0.12CCA 95%+6.1PVC(Black)
DC Power : (24*0.2+2.0PVC)*2
Jacket (mm): 6.1+5.4

> Camera Cable RG59C/U + 2*0.75 (Copper) :

Coax: 0.58BC+3.66SPE + 112*0.12CCA 85%+6.1PVC(Black)
DC Power : (24*0.2+2.0PVC)*2
Jacket (mm): 6.1+5.4

> Camera Cable RG59B/U + 2*0.75 (CCS and Copper) :

Coax: 0.58CCS+3.66SPE + 112*0.12CCA 85%+6.1PVC(Black)

DC Power : (20*0.18+2.0PVC)*2

Jacket (mm): 6.1+5.4

Physical Dimensions
Component		RG59+Power
Conductor	Material	CCS/BC
	Dia. (mm)	0.80±0.01
Dielectric	Material	Foam PE
	Dia. (mm)	3.70±0.10
Shielding	Material	BC/CCA Braid
	Coverage	95%
Jacket	Material	PVC
	Dia. (mm)	6.0±0.10
Power Pair	Material	BC
	Dia. (mm)	16/24x0.2

Electrical Characteristics-g59 siamese cable


Impedance(Ω)	75±3
Velocity of Propagation	83%
Capacitance(pF/m)	53.4

Nominal Attenuation [@ 68° F. (20° C)]-g59 siamese cable

Frequency(MHz)	Attenuation (dB/100m)
10	2.95
50	6.23
100	8.53
200	12.1
400	17.5
700	24.0
900	27.3
1000	29.0

Applications For Coaxial Cable RG59+2C:

1) CATV-community antenna television;

2) CCTV-closed-circuit television

3) DBS-direct broadcasting satellite.

Packing: 305m/wooden drum or 500m/wooden drum,
Customer's requirement also be welcomed

Other Cables:

1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3

2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable

3) Security Alarm Cable / Fire Alarm Cable

4) Optical Fiber Cable

5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable

6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C

7) Trunk Cable QR750 QR540 QR500 QR412

8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602

9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11

10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223

11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600

12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB

13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB

14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect

15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm

16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable

17) Coaxial Cable Connector(BNC,RCA,Female, Male)

18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna

19) CATV Transimitter, CATV Amplifier,CATV Receiver
