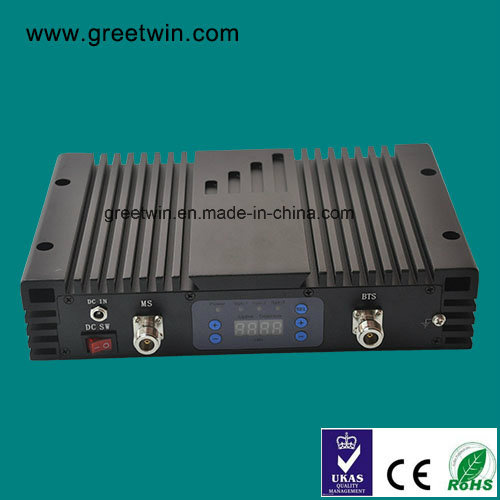

20dBm WCDMA Fixed Band Selective Repeater (GW-20WS)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GW-20WS |
| Selective Repeater: |
WCDMA |
| Type: |
Signal Repeater |
| Transmission Medium: |
Cable |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
CE |
| Condition: |
New |
Product Description
20dBm WCDMA Fixed Band Selective Repeater (GW-20WS)
Model: GW-20WS
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
3. Cover about 500~2000m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.To maintain safe and specific output signal levels and give alarms on self-oscillation, the repeater has built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.5. The consumer repeater is an ideal solution for providing a cost effective improvement in cellular in-building coverage of a home, office, restaurant or building, in the quickest time possible, Support any cellular devices (voice & data & video)
6. Wide band signal booster, Wide band feature enables all devices operating within the wide frequency range of the repeater to see an improvement in performance.or Customize selective band booster.7. Multiple phones and other handheld devices throughout a building can benefit from a wireless repeater; Such as, CDMA450, LTE800, iDEN, CDMA800,GSM,EGSM,AWS1700, DCS, PCS,WCDMA, LTE2600.8. Expansion and extention of the signal of base station. Optimization of the quality of the signal and source.Extended phone battery life. (Your phone does not need to put out as much power due to improved reception.)Advantages:Smart Function, Intelligent digital mode setting.
Smart function called which can be activated via the front digital panel.
users can adjust gain and choose working band by LED digital panel, This smart function is easier than DIP Switch, will set up parameters more fast and more accurate,It is a simple, safe and effective way. Description:Indoor Pico Repeater (Signal Booster) series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. Application:To expand signal coverage of fill signal blind area where signal is weak or unavailable.Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc. Specification.| Frequency Range | Uplink | Downlink |
| WCDMA/3G 2100 | 1920 - 1940MHz | 2110 - 2130MHz |
| Max. Gain | 65dB | 70dB |
| Max. Output Power | 17dBm | 20dBm |
| Band width | Customized |
| Manual Gain Control | 31dB / 1dB Step |
| Automatic Level Control | >25dB |
| Ripple in-band | ≤3dB |
| Return loss | ≤ -10dB |
| Noise Figure | ≤ 6dB |
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm |
| 1~12.75GHz | ≤ -30dBm |
| Third-Order Intermodulation | ≤ -40dBc |
| WCDMA | Spurious Emission Mask | Meet 3GPP TS 25.143 ( V 6.2.0 ) |
| | Modulation Accuracy | ≤ 12.5% |
| | Peak Code Domain Error | ≤ -35dB@Spreading Factor 256 |
| Time Delay | ≤ 1.5 μs |
| VSWR | ≤ 2.0 |
| Frequency stability | ≤ 0.01ppm |
| MTBF | > 50000 hours |
| Power Supply | AC100-240V,DC9V/5A |
| Power LED | Power indicator |
| Alarm LED | Red | Self-oscillation or High Power |
| Green | Standard |
| Mechanical Specification |
| RF Connector | N-Female |
| Switch | Power Switch |
| Cooling | Heatsink Convection cooling |
| Impedance | 50 ohm |
| Humidity | < 90% |
| Operating Temperature | -25°C ~ +55°C |
| Environment Conditions | IP40 |
| Size | 268mm*58mm*189mm |
| Weight | <4Kg |
| | | | | | |
