| Prod Model: |
KBG-2020T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
20kHz |
| Power: |
2000W |
| Certification: |
CE |
| Type: |
Plastic Welders |
| Current: |
Alternating Current |
| Model: |
Ultrasonic Welder |
| Application: |
Plastic Parts Welding |
Product Description
Quick Detail:
1. Description: Ultrasound welding machine
2. Model: KBG-2020T
3. Ultrasonic power: 2000W
4. Frequency: 20KHz
5. Good quality with competitive price
6. ODM & OEM welcome
7. CE Certification
Description:
KBG-2020T Ultrasound welding machine Features:
1. With mechanical limit tuning
2. Welding head overall limit structure to ensure that welding is not offset;
3. Four-point level with adjustable flange structure,convenient transfer mode;
4. Using Branson circuit, stable output
5. Digital welding parameter setting,intuitive and accurate;
6. NTK transducer, with strong power and stable;
7. Titanium Horn, durable;
8. FM and frequency of automatic compensation circuit;
9. A full set of high-quality imported parts assembled, reliable performance;
10. Taiwan imported cylinder, ensure the long-term high-precision welding operation welding head
Advantages of the Ultrasonic plastic welding process:
Using Ultrasonic plastic welding, there is no adhesives, screws, connective bolts or soldering materials and necessary.The possibilities for ultrasonic applications are broad. The process is very fast and can be automated very easily. The machines can be installed anywhere since no exhaust or heat has to be removed and therefore no ventilation system is required. The applied heat occurs only in the joining area, avoiding any temperature changes or surface damage to the plastic parts. The joints are repeatable, clean and precise.

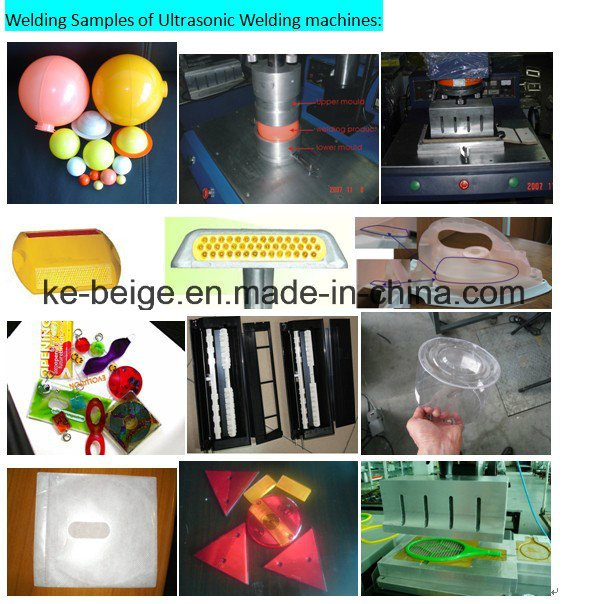

Applications:
The Application of ultrasonic for welding plastic parts, for example, products in the electronics and communications, household appliances and toys, medical and laboratory devices and automotive components industries, etc.
Specifications:
| Description | Ultrasonic Plastic welder |
| Model | KBG-2020T |
| Ultrasonic Power | 2000W |
| Frequency | 20KHz |
| Input Voltage | 220VAC or as request |
| Maximum input power | 2.0KW |
| Output time | "Fuji" Time Control 0.01~6 S |
| Current indication | The output amplitude indicates |
| Pressure range | 1-7 bar |
| Net Weight | 165KGs |
Competitive Advantage:
1. Our factory Machines produced with good quality parts, and competitive price. Machine warranty is for One year, for all the machines itself quality problems which in normal use and under warranty, we'll provide maintenance and provide machine parts free of charge.
2. For all our machines before delivery had passed Ke-beige Limited strict inspection, at least be testing 24-48 hours before delivery.
3. Provide ODM and OEM, Customers only need to told us the products which request for cleaning, and their detailed cleaning requirements, our engineers will provide them perfect solution free of charge. Also, clients own machine design and requirements all be OK.
4. After-sale service: To make sure our high quality and top service from us, before order will send the machine design drawing and specifications to clients for confirmation, before machine delivery we'll testing the machines 24-48 hours and QC fully inspection, if there is any problem in Customer's place, we'll helping to checking out the problem and provide the machine parts for replace free of charge, if can't to solve please return to us for a new one replace.
Ke-beige Technology Limited is a well-known manufacturer and distributor for many kinds of Industrial machinery, (as: Industry Ultrasonic cleaning machines, Ultrasonic immersible transducers, Automatic Ultrasonic cleaning equipment, Tabletop Ultrasonic cleaner, Golf Ultrasonic cleaner, Golf auto tell up machine, Household ultrasonic cleaner, ultrasonic welding machine, High frequency plastic welding machine, Blister packing machine, Canvas welding machines, ...etc )
As a professional manufacturer, we also can produce machines as customers' design with competitive price and great quality. Right now, we already have business with most of countries, Which in Southeast Asia, Eastern Europe, Western Europe, Middle East, South America, Africa etc.
Our factory produces a complete set of products in different specifications. We also have a large exhibition hall for visiting and sample testing. We can carry on the making and production of large-scale nonstandard training models.
Established in 2001, Ke-beige Technology Limited is a well-known manufacturer and distributor for many kinds of Industrial machinery, as: Ultrasonic cleaner, ultrasonic plastic welding machine, High frequency plastic welding machine, Spin welding machines, Blister packing machine, Canvas welding machines...etc.
Ke-beige-a professional manufacture in possession of its own production department, develop department, technical department, sales department, and after-sales service department. Our objective is to continue the improvement in quality of our production to better serve the customers whilst managing an efficient operation to minimize all relevant cost that will result us to be able to serve our customers at an even more reasonable price
