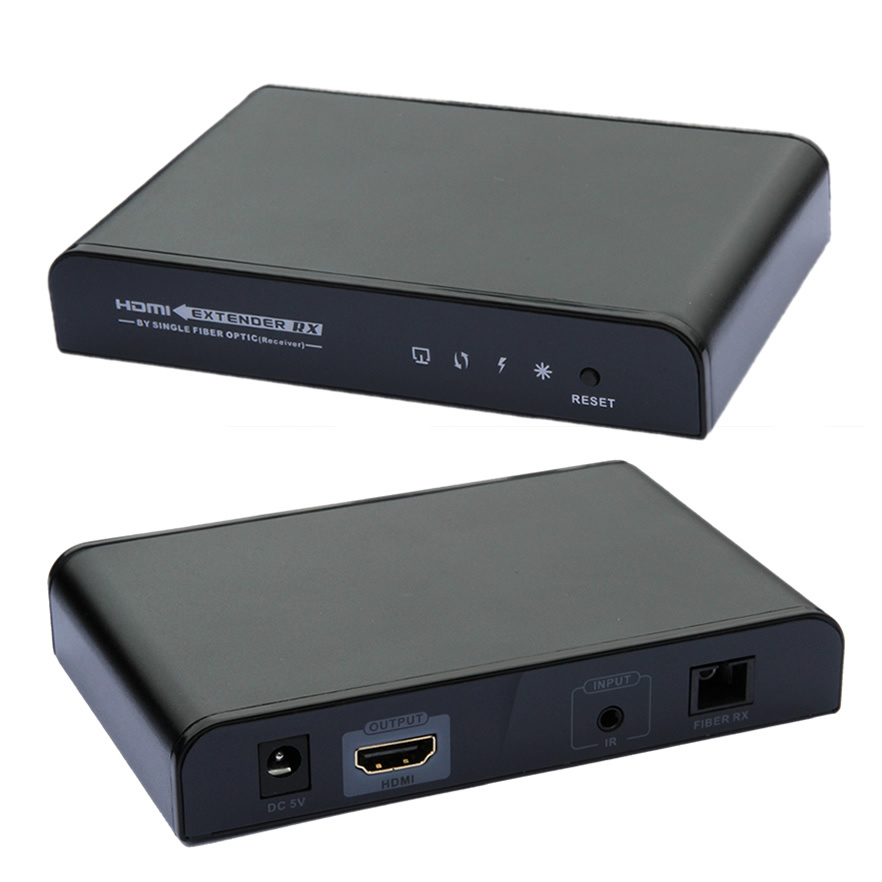

20km HDMI Extender by Optical Fiber with IR

Name: 20km HDMI Extender by Optical Fiber with IR
Brand: all-electronics-online.com
SKU: 758548375
Availability: InStock
Rating: 5 (37 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL2000E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Avaliable
Usage:	Telephone
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

20km HDMI Extender by optical fiber WITH IR can offer long-distance transport of HDMI 1.3a up to 20km with single mode fiber. Featuring HDMI video resolutions up to WUXGA 1920x1200 and HDTV video resolutions up to 1080p. The HDMI Fiber Optic Extender also transports digital audio along with the HDMI. The HDMI optical fiber Extenders consists of an all fiber connection eliminating the need for any copper connections between the transmitting and receiving devices. The HDMI Fiber Optic Extenders are designed to not only transport the HD video and audio, but also supports the transmission of the Display Data Channel (DDC) and High Definition Copy Protection (HDCP) over the same optical fiber.
It is with IR function, which enables users to control the video source on the RX side

Specification:

power adapter	DC5V/2A x 2PCS
HDMI parameters	DDC signal voltage	5Vp-p(TTL)
	TMDS bandwidth	10.2Gpbs
	HDMI input resolution supported	480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz
	HDMI output resolution supported	480p@60Hz,576p@50Hz,720p@50/60Hz,1080p@50/60Hz
fiber parameters	centre wavelength	1310nm
	connecting interface	SC port
	fiber type	SMF(single mode fiber)0-20Km
	linked-circuit loss	<=14dB
	output power	>=-11dBm
	receive sensitivity	<=-32dBm
ifrared remote control	supports 38kHz
power consumption	TX:5W, RX: 5W
dimension	13x8.5x2.4(cm)
