20kv Epoxy Resin Instrument Current and Voltage Transformer

Name: 20kv Epoxy Resin Instrument Current and Voltage Transformer
Brand: all-electronics-online.com
SKU: 716798652
Availability: InStock
Rating: 4.3 (83 reviews)

Price:	US $ 1000/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZW-20 JDZXW-20G
Color:	Red
Application:	Instrument
Type:	Voltage Transformer
Phase:	Single

Product Description

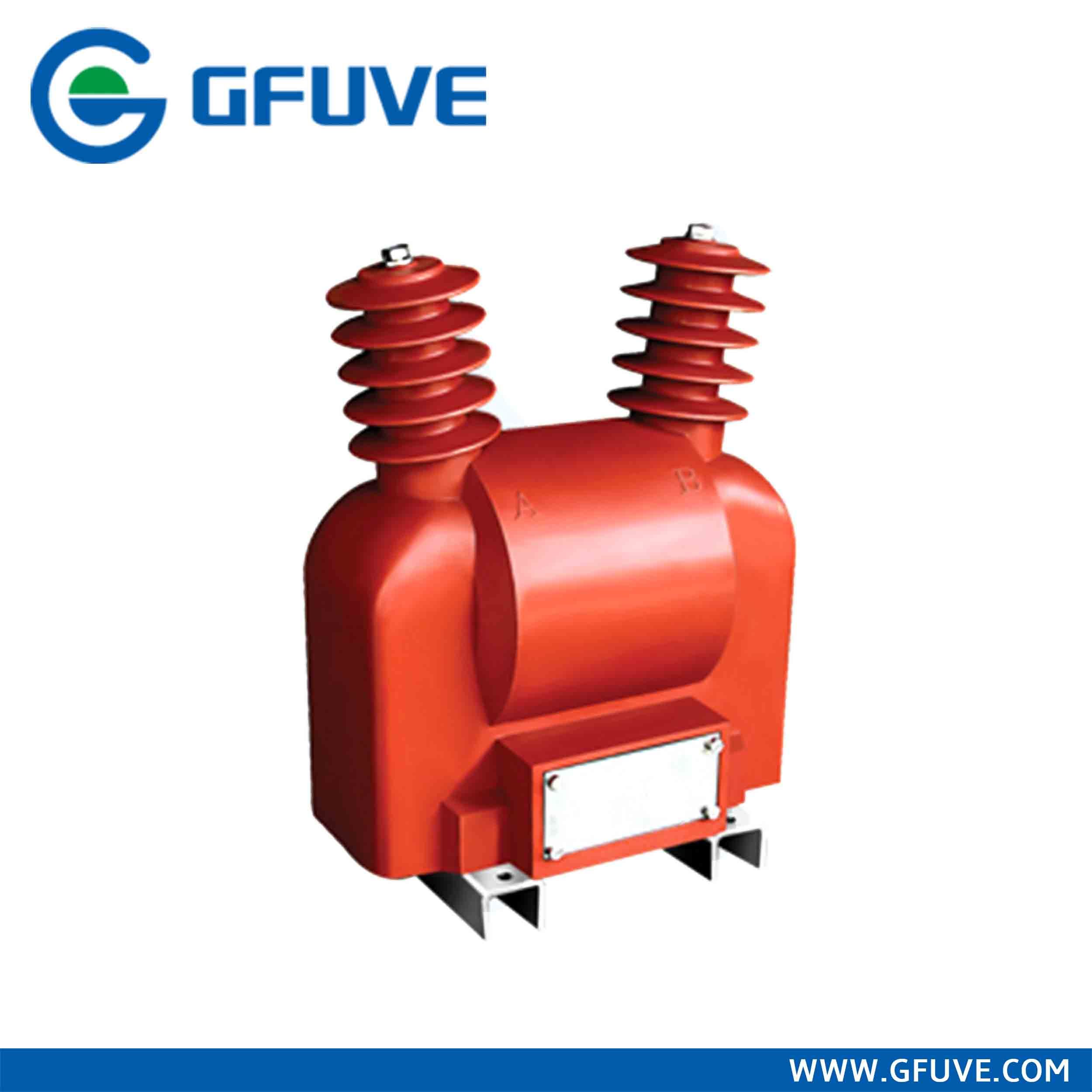

JDZW-20 JDZXW-20G 20KV EPOXY RESIN INSTRUMENT CURRENT AND VOLTAGE TRANSFORMER

This model of instrument current and voltage transformers includes two versions: JDZW-20 and JDZXW-20G. The units are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 24kV and below. They are used in indoor or outdoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

PARAMETERS

Model	Rated voltage radio(V)	Accuracy class and Accuracy class combination rated secondary output (VA)	Limited output (VA)	Rated insulation level (KV)	Surface creepage distance (mm)	Once fuse (A)	Wt (KG)

JSZW-20	20000/100	0.2---40 0.5---100 1---250 3---500	800	24/65/125	860	0.2	56
	20000/220
	20000/100/100	0.2/0.2---20/20 0.2/0.5---20/30 0.5/0.5---50/50	400/400
	20000/220/220		500/800
JDZXW-20G	20000/√3:100/√3:100/√3	0.2/6P(3P)---30/100 0.5/6P(3P)---60/100 1/6P(3P)---150/100 3/6P(3P)---250/100	600
	20000/√3:100/√3:100/√3	0.2/0.2/6P(3P)---15/15/100 0.2/0.5/6P(3P)---15/15/100 0.5/0.5/6P(3P)---40/40/100	300/300
