| Prod Model: |
EH9335 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Three Phase 20kVA/30kVA/40kVA Online UPS |
| Capacity: |
20kVA-40kVA |
| IGBT Technology: |
Yes |
| Power Factor: |
0.8 |
| Communication: |
RS232, RS485, As400, Snmp |
| Input Voltage: |
210-475V AC |
| Output Voltage: |
380V +-1% |
| Input Frequency Range: |
40-70Hz |
| Output Frequency: |
50/60Hz |
| Warranty: |
12months |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
OEM or Must |
Product Description

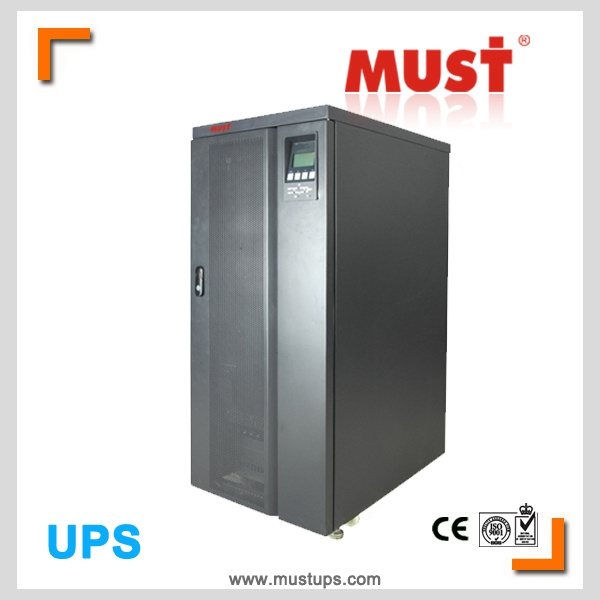

IGBT High Frequency Three Phase 20KVA/30KVA/40KVA Online UPS
Features of the online UPS EH9335
* IGBT technology
* Automatic and manual bypass
* Built in isolate transformer (optional)
* RS232, RS485, AS400
* With parallel card
* SNMP card for communication
* Charge current adjustable
* High efficiency, ECO: 98%, Normal: 94%
--------Parameters of the three phase online UPS
| MODEL | 3C3 EH 20KS |
|---|
| Capacity | 20KVA/16KW |
| INPUT |
| Phase | Three Phase + N + G |
| Voltage Range | 210-475VAC |
| Frequency Range | 40-70Hz(50Hz or 60Hz automatically) |
| THDI | 3% |
| Power Factor | >0.99 |
| OUTPUT |
| Voltage | 3800×(1±1%)VAC |
| Frequency | 50/60Hz |
| Phase | Three Phase + N + G |
| Power Factor | 0.8 |
| Overload | 125% 10min; 150% 1min |
| BATTERY |
| Type | 28/30/32 Cell VRLA Sealed Lead Acid Battery |
| Backup time | Depends on capacity of external battery |
| EFFICIENCY |
| AC mode | 94% |
| Battery mode | 94% |
| ECO mode | 98% |
| Fan Speed Control Intelligently Function | yes |
| DISPLAY |
| LCD Panel | UPS Work Status and Operation Instruction: Input Voltage, Output Voltage, Current, Frequency, Battery Voltage, Charge/Discharge Current, and Fault Status |
| LED Panel | UPS Work Status |
| Alarm | Buzzer and light flash |
| Communication | RS232, RS485, AS400, SNMP,EPO |
| ENVIRONMENT |
| Temperture | 0-40ºC |
| Humidity | ≤93% [(40±2)ºC,Non-condensing] |
| PHYSICAL |
| Net Weight | 82Kg |
| Gross Weight | 122Kg |
| Product measurement W*D*H(mm) | 420×643×956 |
--------Why Always Must Power???
1.Professional--Over 10 years Professional Power System Producing Experience
2.Reliable
3.Hi-tech--Two Advanced R&D Team
4.Certifications--Applied with CE, ISO 9001, Soncap,IEC etc
5.Quality guarantee--One year warranty
Samples and OEM
Samples are Available for Testing and Market Test. OEM is welcomed for us.
10 Years warranty time for soalr panel
--------MUST Power Ltd brief introduction:
1) Must Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional Hi-tech enterprise specializes in the research, development and manufacturing of Uninterruptible Power Supply (UPS), power inverter, solar power inverter.
2) Our comprehensive product lines include: Offline UPS, line interactive UPS, online UPS, power inverter, solar inverter, solar controller. Most products with CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.
3) Must power with an excellent R & D team formed by over 30 engineers, and together 10, 000 square meter in-house manufacturing facilities in Shenzhen city, Guangdong, China.
Our main markets are Africa, Middle East as Ukraine, Italy, Kenya, South Africa, Nigeria, Pakistan etc.
--------Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FedEx, UPS, EMS, Airway and By Sea
-------Must Power Ltd service:
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
24 Hours After-service consultancy just for you and to make your problems to solve easily.
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
-------Answers to frequency questions:
1. Q: Can I have sample before formal order?
A: Sure, it will be warm welcomed.
2. Q: What's the warranty:
A: 12 months.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer), and Western Union.
4. Q: OEM is available?
A: Yes, OEM is welcomed.
