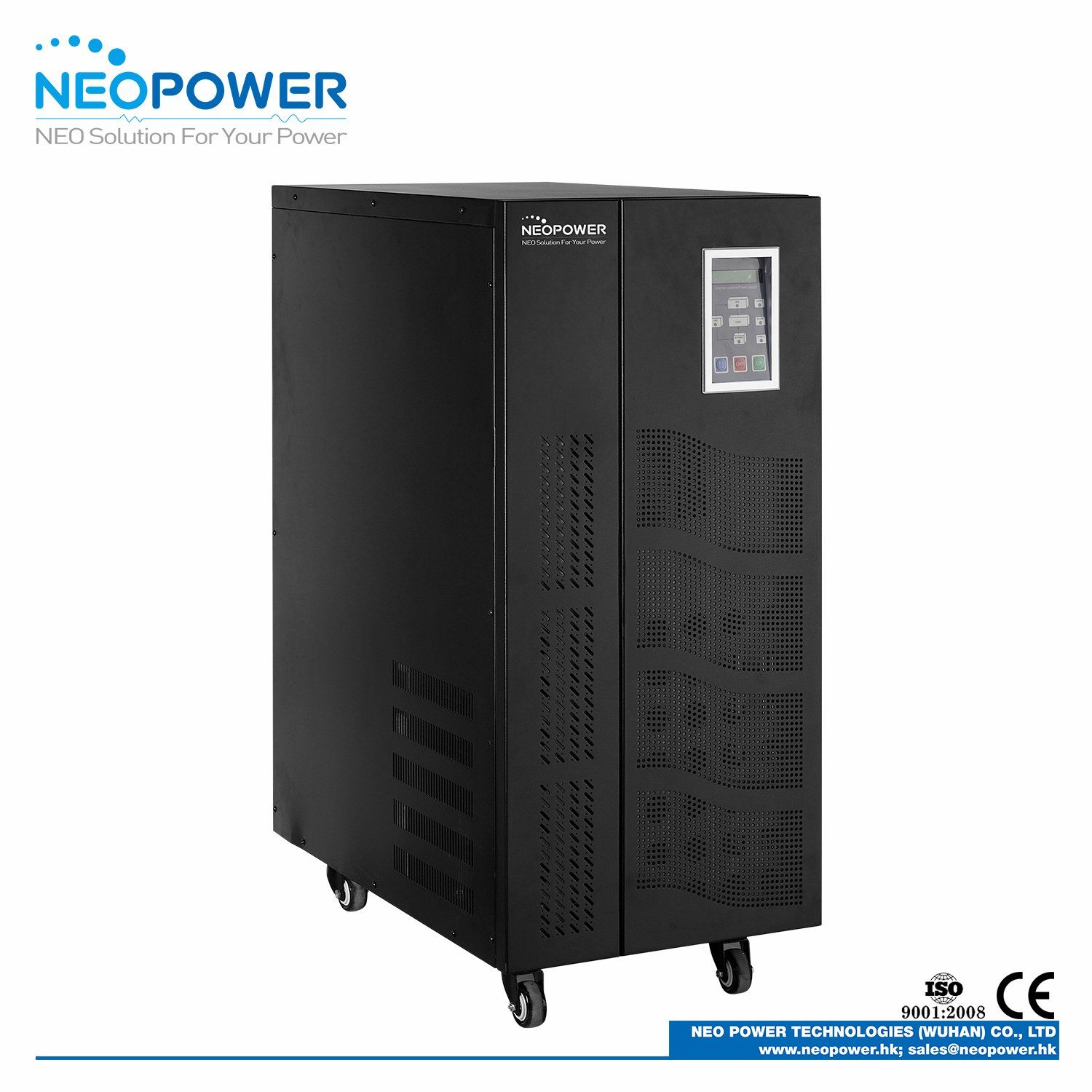

20kVA Three/Single Phase LCD Screen Online UPS with Remote Control

Name: 20kVA Three/Single Phase LCD Screen Online UPS with Remote Control
Brand: all-electronics-online.com
SKU: 821902105
Availability: InStock
Rating: 4.9 (25 reviews)

Price:	US $ 2490-2925/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NP8320
Capacity:	20kVA
Power Rating:	16kw
Input Voltage:	380V/400V/415V +/-20%
Output Voltage:	220V/230V/240V +/-1%
Power Factor:	0.8/0.9 Optional
Remote Control:	Available with RS232/RS485/Dry Contact Port
Features:	Built-in Output Isolation Transformer
Certificate:	Ce
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Neopower

Product Description

Model	NP8320
Capacity	20 kVA
Power Rating	16/18 kW
AC Input Voltage	380/400/415 Vac +/-20%, three phase + N + PE
Bypass Input Voltage	160 ~ 275 Vac, single phase
Input Frequency	50/60 Hz +/-5% (auto sense)
Output Voltage	220/230/240 Vac +/-1%, single phase + N + PE
Output Frequency	input frequency synchronized
Output Power Factor	0.8/0.9
Wave Form	Clean Sine Wave
THD	<3% (linear load)
Crest Factor	3 : 1
Overall Efficiency	> 87%
Overload Ability	600' / 10' / 1' (110% / 125% / 150%)
Battery Voltage	192 Vdc (optional 240 Vdc)
Transfer Time	0 ms
Display	LED (optional LCD)
Communication Port	RS 232 / RS 485 / SNMP Card / Dry Contact
Protection	battery low-voltage, overload, over-temperature, output short circuit
Bypass Mode	available
Operation Temperature	-10 ~ 50ºC
Noise	< 58 dB
Altitude	full power rating below 2000 m, 2% decrease as per 500 m higher
Humidity	20% ~ 90% (non-condensing)
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMI: IEC62040-2; EMC: IEC61000-4-2~5
Dimension	410 * 670 * 935 mm
Net Weight	220 kG

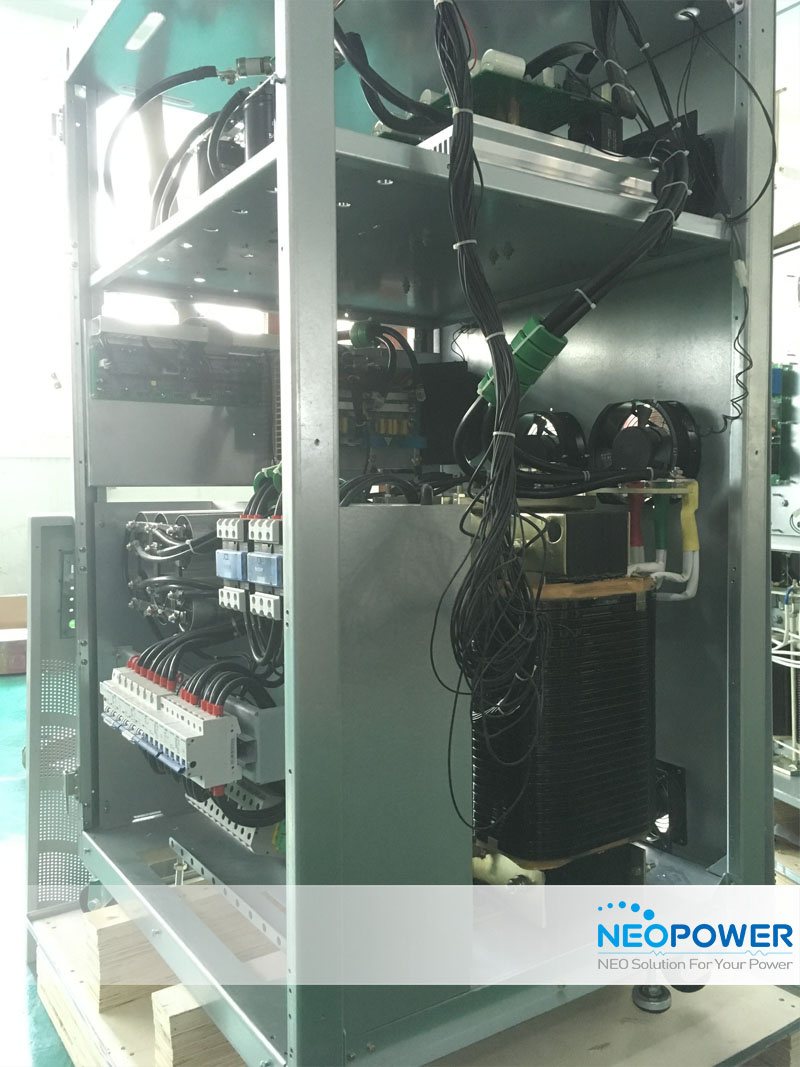

PRODUCT INTERIOR

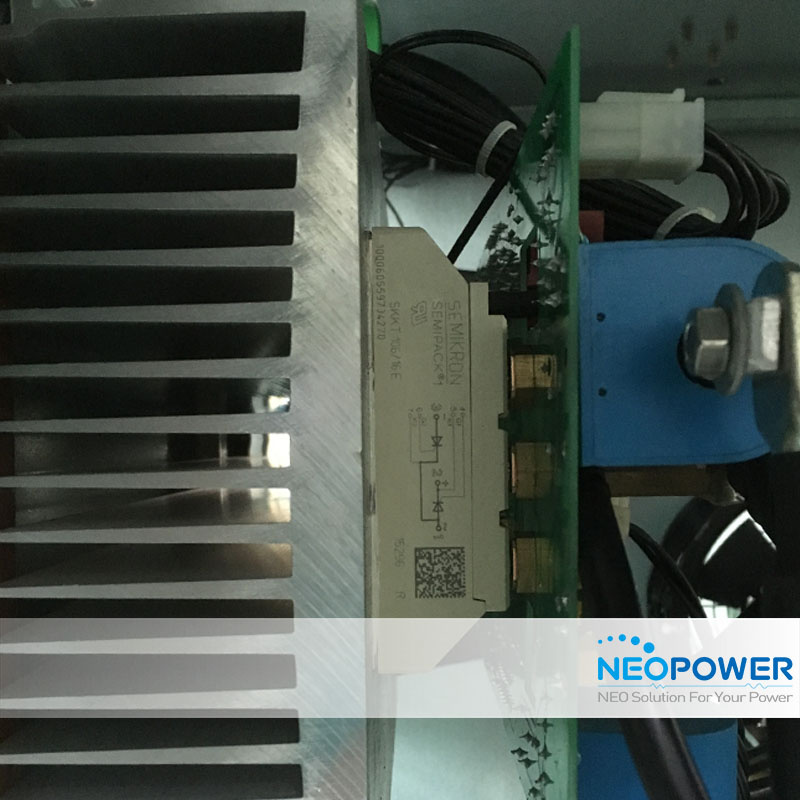

RECTIFIER PART

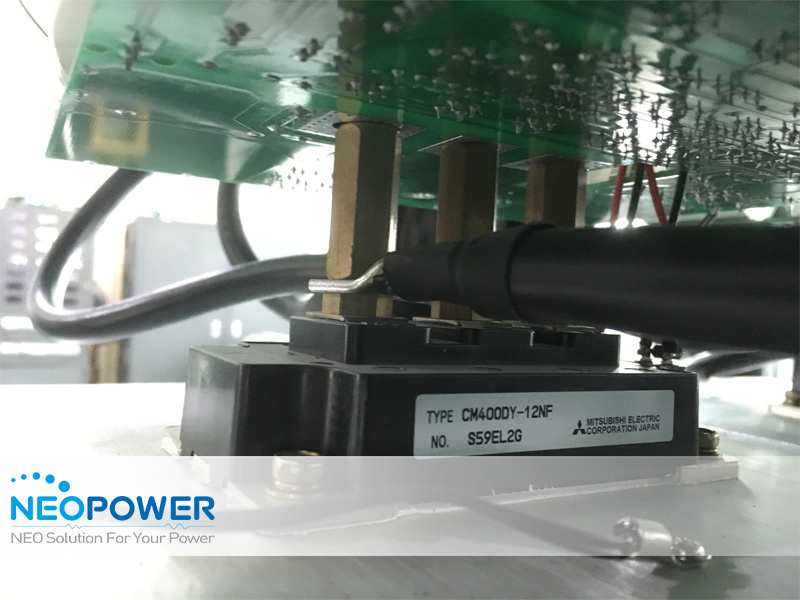

IGBT MODULE

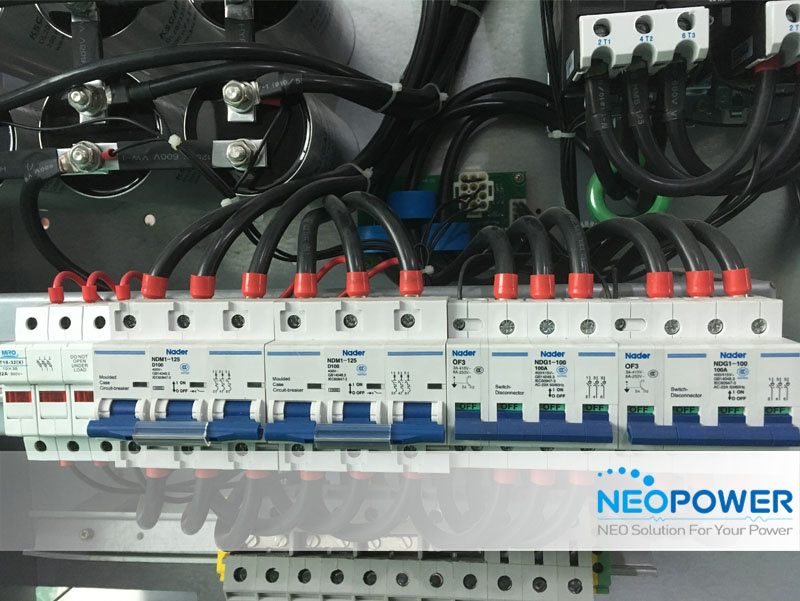

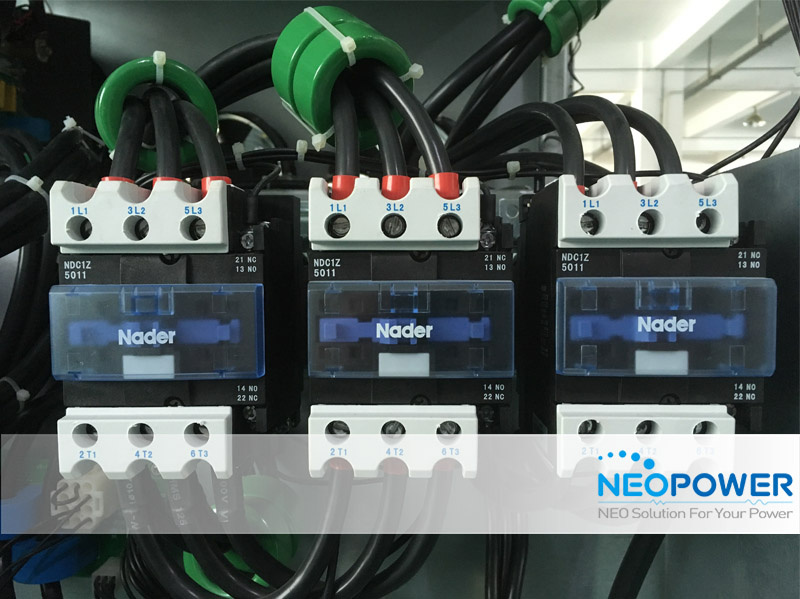

MILITARY BRAND BREAKERS & SWITCHES

FEATURES

Industrial Grade
Built-in Output Isolation Transformer
Max 8 Units Parallel Connection Available
6th Pack IGBT Module
Double DSP Control Units
Frequency Tracking, Phase-Locked
Bypass Mode Available
Optional Bypass Isolation Transformer
Built-in Manual Maintenance Bypass Switch
LCD Display & LED Display Options
