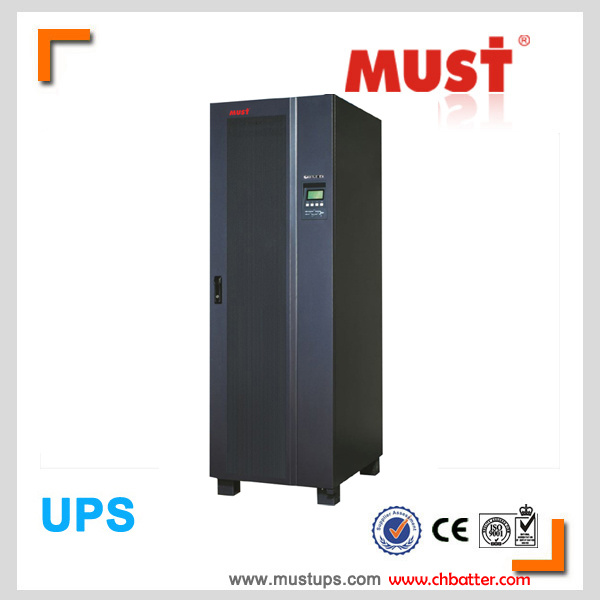

20kVA to 40kVA Three Phase Online UPS with High Frequency Design

Name: 20kVA to 40kVA Three Phase Online UPS with High Frequency Design
Brand: all-electronics-online.com
SKU: 720859305
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	20kva(16kw)-40kva(32kw) EH9335
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal AC:	380V/220V, 400V/230V, 415V/240V 50Hz/60
Processor:	DSP-Base High Performance
AC-DC Power Convertion:	Pfc + SCR Rectifier Module
Input P.F.:	0.99
DC-AC Power Convertion:	Full DSP-Base IGBT Inverter
Output P.F.:	0.8
Normal Mode Efficiency:	0.94
Eco Mode Efficiency:	0.98
Phase:	Three Phase
Type:	On-line
Protection:	Switch Transient,Voltage Dips Sags, Thdi
Brand:	Must

Product Description

ture online ups 3 phase 20kva to 40kva high frequency design

Ups power: 20-40kva three phase in and out online high frequency design
Ups system design: Same as 3C3, EX

Feature:

ture online ups,online ups manufacturer,ups industrial,3 phase ups, high power ups,
3 phase online ups,high frequency online ups,online ups 40kva, online ups, sine wave ups,
online ups power supply, long backup time ups,three phase input single phase output online ups,
pure sine wave online ups,industrial online ups, industrial ups manufacturer,
online ups with isolation transformer

Features:

1. ups industrial typical design and secure power protection from galvanic isolation output transformer fixed in ups chassis:
ISO design is optional online ups with isolation transformer, ture online ups
completely isolating output pure sine wave power from input ac source in case of heavier noise interference, harmonic distortion;
completely isolating output neutral from output ground line in case of unexpected electric shocks by touching ups.
and EPO (Emergent power off) mode.
2. intelligent power protection solution from ups industrial composed of advanced, dsp-based and full-digitalized micro-processor control tech high reliability power solution;
3 individual phase controller: real time monitor ups and power status, management battery charge,recharge in an advanced method (ABM: Advanced battery management)

3. high input power factor 0.99 and better ac-ultilization advantage from SCR silicon rectifier module,PFC integrated;

4. high stability, high efficiency and power-saving advantage from advanced, transformer-less and dsp-based IGBT inverter.

inverter efficiency up to 94% (normal online mode), and 98% on ECO mode. 3 individual IGBT inverter

5. Uninterruptibility power solution from ups industrial : 384vdc (360vdc,336vdc) internal battery (12v-7ah) or external battery bank(purpose-designed long autonomy external large battery). Option

6. ups industrial adopts thorough communication interface and power management tool:

Standard RS232, RS485, optional DB-9 dry contact, AS400 expansion card,

SNMP network monitor, power management tool / protocol

7. ups industrial double ac mains input power safe-guard: regular mains input supply, reserve mains input supply

8. ups industrial more optional design for higher quality power solution: Power fed-back module, temperature sensor,higher IP protection class... and

9. ups industrial for flexible on-demand power expansion hot-redundancy:
n+x parallel redundant ups
max design ability: 8 units ( 2 units maximium for redundancy)
ture online ups,online ups manufacturer, online ups, high frequency online ups, 3 phase online ups

ture online ups,3 phase onlline ups, 40kva

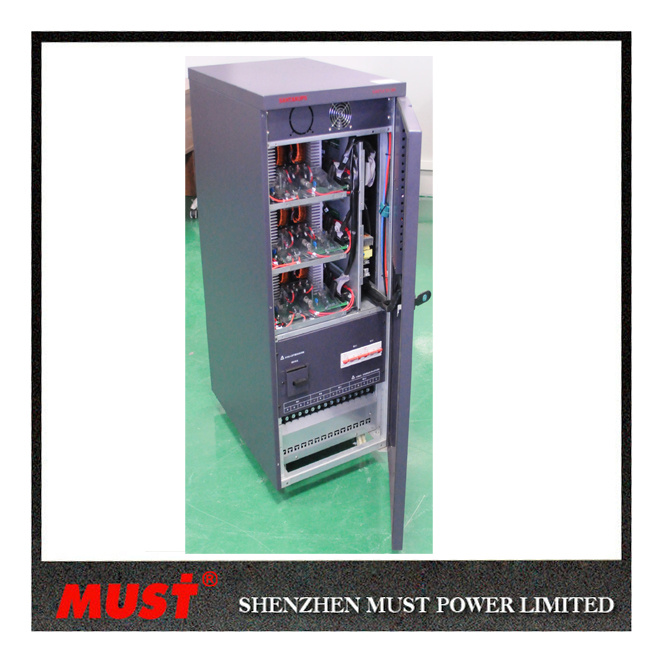

electrical view

ture online ups,3 phase online ups, 40kva ups

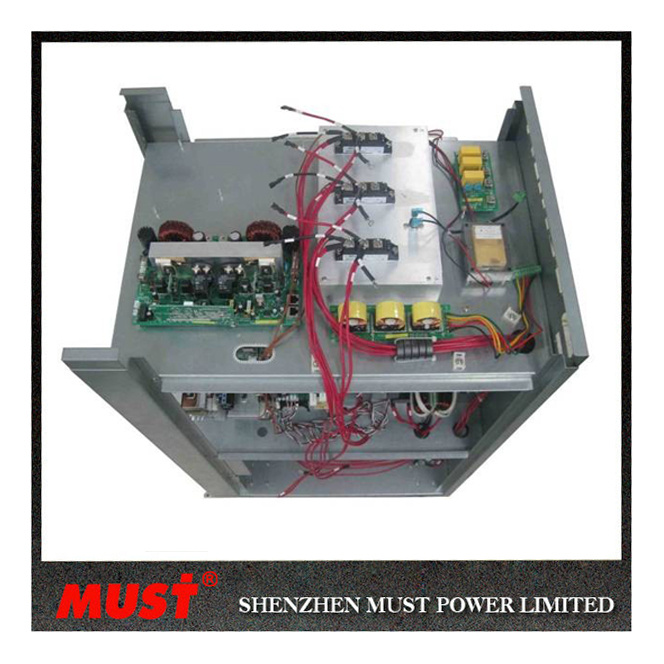

PFC+SCR rectifier module electrical view:

ture online ups,3 phase online ups,40kva ups
individual phase IGBT inverter PSDR board electrical view:
