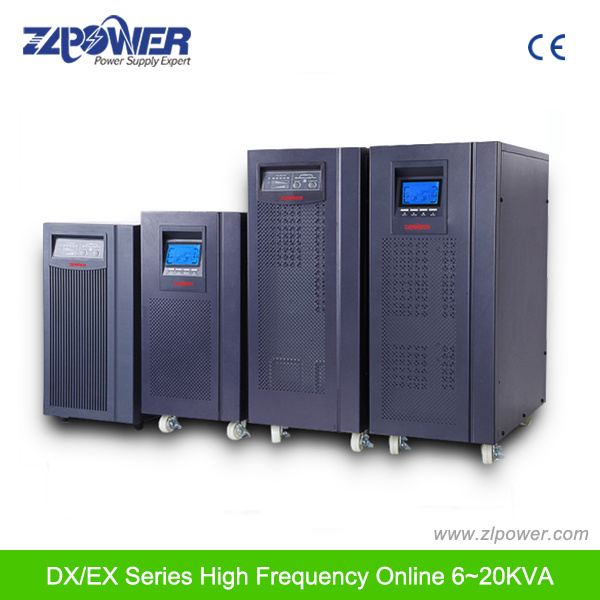

20kVA UPS Parallelable High Frequency Online UPS (EX3120KLVA)

Name: 20kVA UPS Parallelable High Frequency Online UPS (EX3120KLVA)
Brand: all-electronics-online.com
SKU: 676194585
Availability: InStock
Rating: 4.5 (87 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	EX3120KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	220/230/240(1%)Vac (Adjustable Via LCD Panel
Phase Fhase:	Three Phase(4 Wires+Ground)
Input Nominal Voltage:	380vac
Voltage Distortion:
Overload Capacity:	105%~130% for 10 Min, >or =130% for 1s
Phase:	Three Phase
Type:	On-line
Protection:	Short Circuit

Product Description

20kVA UPS Parallelable high frequency online UPS

Capacity: 20kVA/16KW

Online UPSInput:
Nominal Voltage: 380VAC
Voltage Range: 304-478VAC
Frequency Range: 50Hz: 46-54Hz, 60Hz: 56-64Hz
Fhase: Three Phase(4 wires+ground)
Power Factor: 0.98
Connection: Hardwired

Output:
Voltage: 220/230.240VAC
Frequency: Aynchronization range(Line mode); 50 or 60(battery mode)
Wave Form: Sine Wave
Power Factore: 0.7
Voltage Distortion: Overload Capacity: 105%~130% for 10 min, >or =130% for 1s
Current Crest Ratio: 3: 1max
Connection: Hardwired

Battery:
Norminal Voltage: 192VDC
Back-up time(full load): 5 min-10 houes depend on the external batteries bank
Connection: Hardwired
Transfer Time:
0 min

Maintenance Bypass Switch:
Yes
Indicators:
LED display: Load level/Battery, Utility power, Inverter, Bypass, Overload, Fault
Audible Alarm:
Bypass: Alam keeps every two second
Battery Discharge: Alarm keeps every every four seconds, every second if battery low
Overload: Alarm keeps two for evry second
Fault: Alarm keeps continuously
Acoustic Noise:
55bDAt 1 meter distance
Communication:
DB-9 port: RS232 series interface
Intelligent Slot: Options for SNMPCard, AS400 Card or Winpower CMC/(USB port)
Parallel Port:
Up to three units in parallel for power redundancy and load sharing
Enviromental:
Operating Temperature: 0-40
Operating Humidity: 20-90%non-condensing
Weight: 100KG
Dimensions: 260*570*717mm

Model		EX6K	EX6KL	EX10K	EX10KL	3EX10KL	3EX15KL	3EX20KL
Capacity		6KVA/4200W		10KVA/7000W			15KVA/10500W	20KVA/14000W
Input	Nominal Voltage	220V				380V
	Voltage Range	176~276VAC				304~478VAC
	Frequency	46~54Hz/56~64Hz (adjustable via LCD panel)
Output	Voltage	220/230/240 (1±1%)VAC (Adjustable via LCD panel)
	Frequency	50/60Hz (adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode:50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%)
	Current Crest Ratio	3:1
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥7′	Depends on the capacity of the external batteries bank	≥5′	Depends on the capacity of the external batteries bank
	Half Load	≥20′		≥13′
Battery Nominal Voltage		240VDC
Transfer Time		0ms
Overload Capacity		105%~130% 10min, over 150%1min
Communication		RS-232+Intelligent Slot
Operating Environment	Temperature	0C~40C
	Humidity	15%~90%
Dimensions (WDH)mm		260570717
Net Weight (Kg)		90	35	93	38	39	55	55

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
